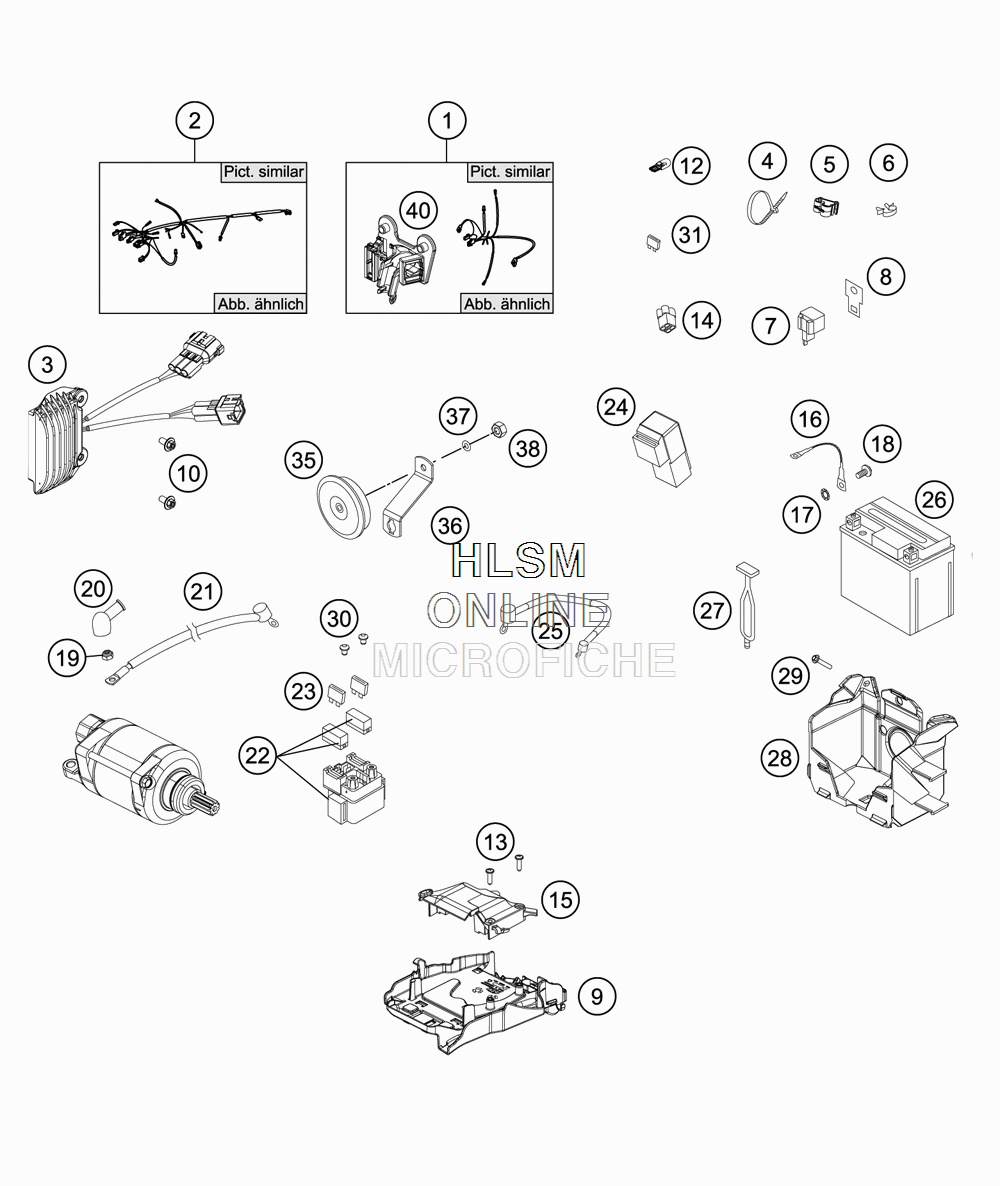

WIRING HARNESS для Ktm 350 EXCF - 2015 года выпуска
-
№АртикулНазвание
-
177711079000 WIRING HARNESS LIGHT CPL. (EUROPE)WIRING HARNESS LIGHT CPL. (EUROPE)
-
278111175133 WIRING HARN. EFI VMT . (USA)WIRING HARN. EFI VMT . (USA)
-
378111034000 VOLTAGE REGULATORVOLTAGE REGULATOR
-
444011076140 CABLE TIE 140/2,5MM (BLACK)CABLE TIE 140/2,5MM (BLACK)
-
444011076200 CABLE TIE 200/3,6MM (BLACK)CABLE TIE 200/3,6MM (BLACK)
-
444011076305 CABLE TIE 300/4,8MM (BLACK)CABLE TIE 300/4,8MM (BLACK)
-
583013026000 CABLE GUIDECABLE GUIDE
-
657013072100 WIRING HOLDER 16MMWIRING HOLDER 16MM
-
776511030000 FLASHER UNITFLASHER UNIT
-
858211031100 BRACKET FOR FLASHER RELAYBRACKET FOR FLASHER RELAY
-
977711094000 ELECTRIC BOXELECTRIC BOX
-
100023060123 COLLAR SCREW M6X12 TXCOLLAR SCREW M6X12 TX
-
1249111425200 BULB 12V 2,3W (W2X4,6D)BULB 12V 2,3W (W2X4,6D)
-
130081050181 SCREW FOR PLASTIC K50X18 T20SCREW FOR PLASTIC K50X18 T20
-
1481211096000 DUMMY PLUG AN 4-PINDUMMY PLUG AN 4-PIN
-
1577711094050 ECU SPLASH PROTECT .ECU SPLASH PROTECT .
-
1658411097100 GROUND CABLE D=6MM L=140MMGROUND CABLE D=6MM L=140MM
-
1758411098100 CONTACT WASHER M6 VSV -K6CONTACT WASHER M6 VSV -K6
-
180009050106 EJOT SPIRAL SCREW SF M5X10-KEJOT SPIRAL SCREW SF M5X10-K
-
190985060003 SELF LOCK. NUT DIN0985-M 6SELF LOCK. NUT DIN0985-M 6
-
2077240099000 PROTECTION CAP F . STARTER ENG.PROTECTION CAP F . STARTER ENG.
-
2158411059100 STARTER CABLE 700 MMSTARTER CABLE 700 MM
-
2258211058000 STARTER RELAY 12VSTARTER RELAY 12V
-
2358011109120 FUSE 20 AFUSE 20 A
-
2461111057000 RELA Y CM1A-R-12V -H80RELA Y CM1A-R-12V -H80
-
2558711086000 WIRING HARNESS BATTERYWIRING HARNESS BATTERY
-
2677311053000 BATTERY 12V 3AH YTX4L-BSBATTERY 12V 3AH YTX4L-BS
-
2750303018000 RUBBER L=145MMRUBBER L=145MM
-
2877211055000 BATTERY BOXBATTERY BOX
-
290017060205 SCREW FOR PLASTIC K60X20 SW6SCREW FOR PLASTIC K60X20 SW6
-
300902060083 AH OVAL SCREW ISO 7380 M 6X8AH OVAL SCREW ISO 7380 M 6X8
-
3175011088005 FUSE MINI 5AFUSE MINI 5A
-
3175011088010 FUSE 10AFUSE 10A
-
3550311060200 DC HORN 12VDC HORN 12V
-
3678011061000 HORN BRACKETHORN BRACKET
-
370125050003 WASHER DIN0125-A 5,3WASHER DIN0125-A 5,3
-
380934050003 HEXAGON NUT DIN0934-M 5HEXAGON NUT DIN0934-M 5
-
4077711083000 SUPPORT BRACKETSUPPORT BRACKET
