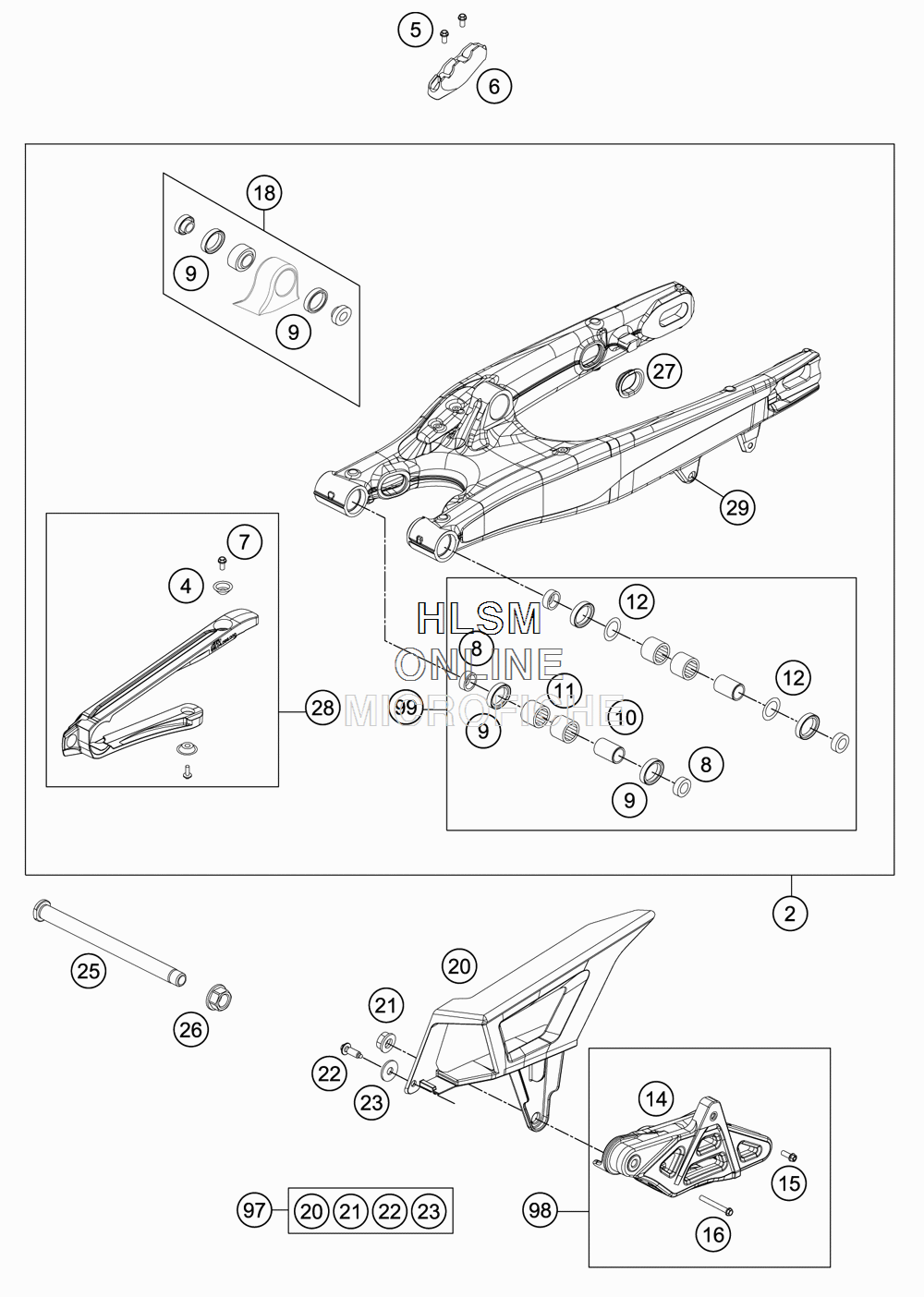

SWINGARM для Ktm 350 EXCF - 2015 года выпуска

  • №
    Артикул
    Название
  • 2
    51504030044 SWINGARM CPL. PDS
    SWINGARM CPL. PDS
  • 4
    77304066050 BUSHING F . CHAIN SLIDING PR.
    BUSHING F . CHAIN SLIDING PR.
  • 5
    0009050106 EJOT SPIRAL SCREW SF M5X10-K
    EJOT SPIRAL SCREW SF M5X10-K
  • 6
    77313047000 BRAKE HOSE GUIDE LOWER
    BRAKE HOSE GUIDE LOWER
  • 7
    59009062013 SPECIAL SCREW M6X13 WS=8 10.9
    SPECIAL SCREW M6X13 WS=8 10.9
  • 8
    54804034000 BUCKET F . SHAFT SEAL RING
    BUCKET F . SHAFT SEAL RING
  • 9
    0760253270 SHAFT SEAL RING 25X32X7
    SHAFT SEAL RING 25X32X7
  • 10
    54804032000 BUSHING SLEEVE F . SWINGARM
    BUSHING SLEEVE F . SWINGARM
  • 11
    58033097000 NEEDLE BEARING HK 2216
    NEEDLE BEARING HK 2216
  • 12
    54603036000 STOP DISK 22,2X31,7X1
    STOP DISK 22,2X31,7X1
  • 14
    78104070100 CHAIN GUIDE EXC
    CHAIN GUIDE EXC
  • 15
    59009062019 SPECIAL SCREW M6X19 WS=8 10.9
    SPECIAL SCREW M6X19 WS=8 10.9
  • 16
    0025060506 HH COLLAR SCREW M6X50 TX30
    HH COLLAR SCREW M6X50 TX30
  • 18
    50304090144 PIVOT BEARING+BUSH. PDS
    PIVOT BEARING+BUSH. PDS
  • 20
    78104060000 CHAIN GUARD
    CHAIN GUARD
  • 21
    56509064100 SELF LOCKING NUT M6 10.9
    SELF LOCKING NUT M6 10.9
  • 22
    0017060205 SCREW FOR PLASTIC K60X20 SW6
    SCREW FOR PLASTIC K60X20 SW6
  • 23
    0021060003 WASHER DIN9021-A 6,4
    WASHER DIN9021-A 6,4
  • 25
    77304037000 SWINGARM BOLT M16X1,5
    SWINGARM BOLT M16X1,5
  • 26
    54804038000 SELF LOCK.NUT M16X1,5 WS=19
    SELF LOCK.NUT M16X1,5 WS=19
  • 27
    77204041000 CLOSING COVER
    CLOSING COVER
  • 28
    51504066044 CHAIN SLIDING GUARD KIT
    CHAIN SLIDING GUARD KIT
  • 29
    54603055051 PRESS IN NUT M6 STEEL ZINC
    PRESS IN NUT M6 STEEL ZINC
  • 97
    78104060010 CHAIN PROTECTION KIT
    CHAIN PROTECTION KIT
  • 98
    78104070010 CHAIN GUIDE KIT
    CHAIN GUIDE KIT
  • 99
    54804230210 SWINGARM REPAIR KIT
    SWINGARM REPAIR KIT
