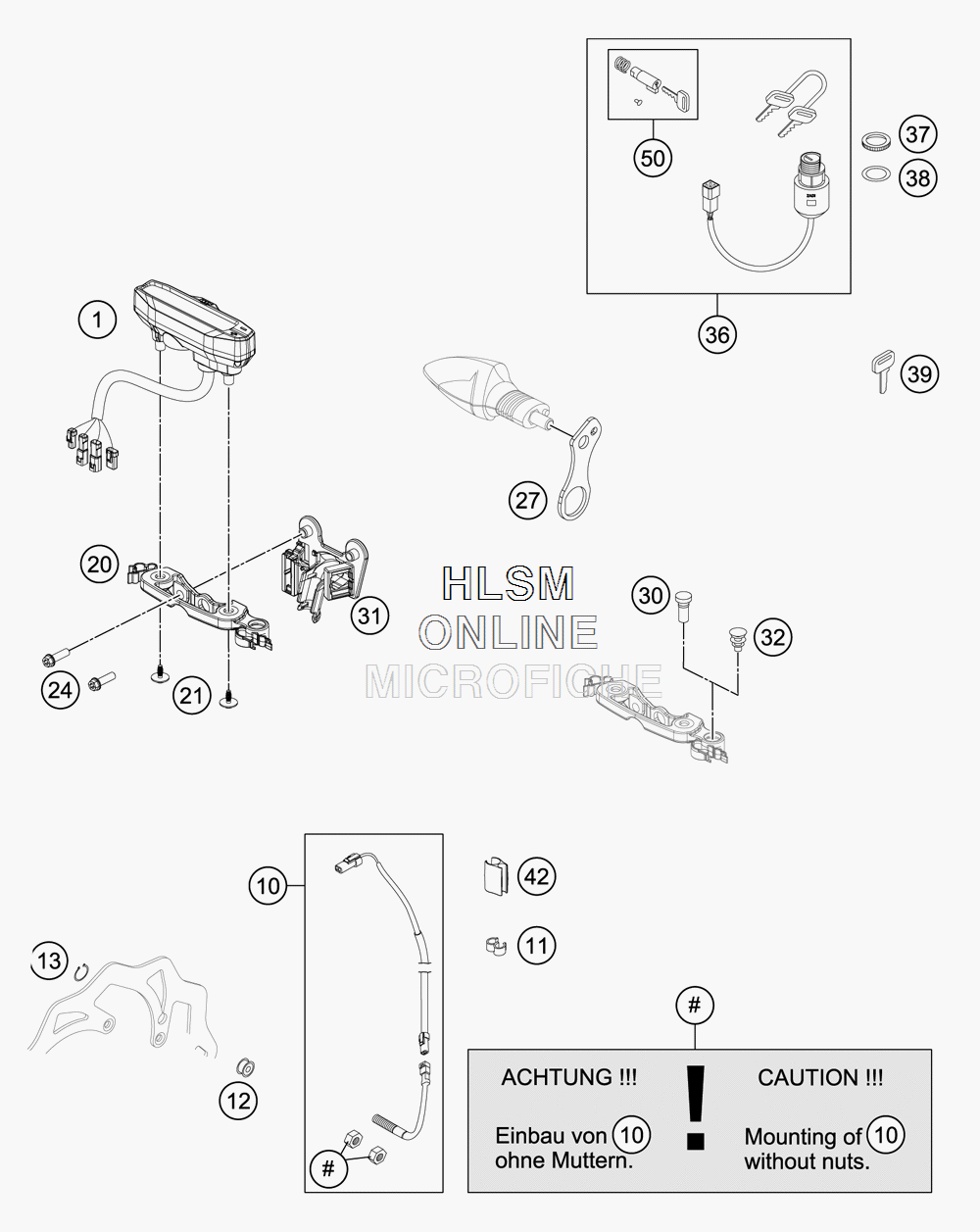

INSTRUMENTS LOCK SYSTEM для Ktm 350 EXCF - 2015 года выпуска`
-
№АртикулНазвание
-
177714069200 SPEEDOMETER REPROGRAMMABLE: KM/H - MPHSPEEDOMETER REPROGRAMMABLE: KM/H - MPH
-
1054814068100 CABLE FOR DIGITAL SPEEDOM.CABLE FOR DIGITAL SPEEDOM.
-
1160111094000 CLIP 5/7 MMCLIP 5/7 MM
-
1254814069050 MAGNET FOR DIGITAL SPEEDOM.MAGNET FOR DIGITAL SPEEDOM.
-
130471009104 CIRCLIP DIN0471- 9X1 INOXCIRCLIP DIN0471- 9X1 INOX
-
2077714060000 SPEEDOMETER BRACKETSPEEDOMETER BRACKET
-
210081645121 EJOT DELTA PT SCREW 45X12-ZEJOT DELTA PT SCREW 45X12-Z
-
240024060206 HH COLLAR SCREW M6X20 TX30HH COLLAR SCREW M6X20 TX30
-
2778111065050 BRACKET IGNITION LOCKBRACKET IGNITION LOCK
-
3058011024300 FLASHER INDICATOR LIGHT (GREEN)FLASHER INDICATOR LIGHT (GREEN)
-
3177711083000 SUPPORT BRACKETSUPPORT BRACKET
-
3250210086000 COVERING CAP SFL16COVERING CAP SFL16
-
3678011065100 IGNITION LOCK SET STR.LEIGNITION LOCK SET STR.LE
-
3750311066050 IGNITION LOCK NUT M24X1IGNITION LOCK NUT M24X1
-
3858411066450 WASHER F . IGNITION LOCKWASHER F . IGNITION LOCK
-
3940011166200 KEY BLANK (BLACK) "T" GRIPKEY BLANK (BLACK) "T" GRIP
-
4254813026000 CABLE SUPPORT 10/6MMCABLE SUPPORT 10/6MM
-
5078003035000 STEERING HEAD LOCKSTEERING HEAD LOCK
