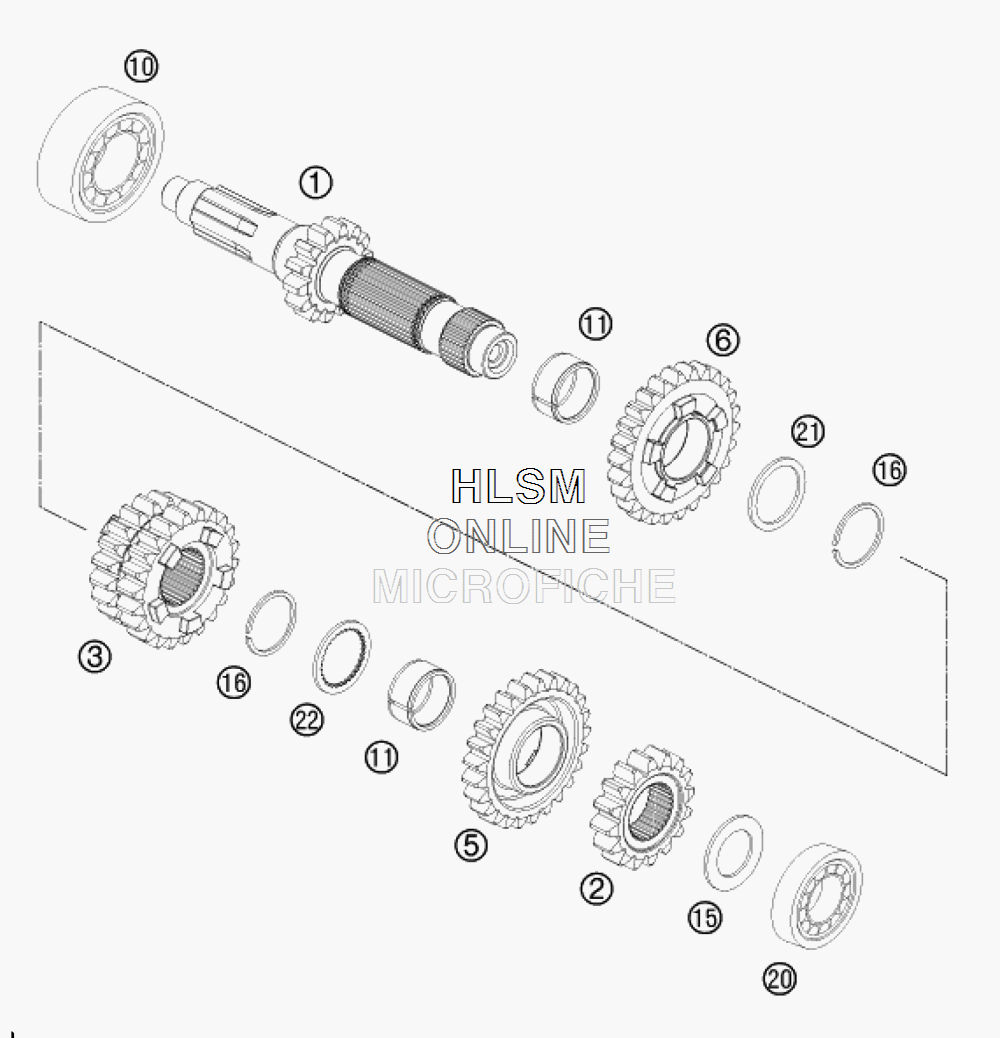

TRANSMISSION - MAIN SHAFT для Ktm 250 XC - 2015 года выпуска`
-
№АртикулНазвание
-
154833301100 MAIN SHAFT CPL. 15T .MAIN SHAFT CPL. 15T .
-
254833202000 SOLID GEARSOLID GEAR
-
354833203000 SLIDING GEAR 3./4.GANG,Z=20 /22SLIDING GEAR 3./4.GANG,Z=20 /22
-
554833205000 IDLER GEAR 5.G, Z =25IDLER GEAR 5.G, Z =25
-
654833206000 IDLER GEAR 6. G, Z=26IDLER GEAR 6. G, Z=26
-
100625062054 BALL BEARING 6205 C3 NTNBALL BEARING 6205 C3 NTN
-
110405222613 NEEDLE BEAR. K 22X26X13 TNNEEDLE BEAR. K 22X26X13 TN
-
1554633015000 STOP DISK 20,2X33X1,5STOP DISK 20,2X33X1,5
-
160417024000 CIRCLIP WS24CIRCLIP WS24
-
200625160040 GROOVED BALL BEAR. TM 16004 C3GROOVED BALL BEAR. TM 16004 C3
-
2154833044000 STOP DISC 25X31X1,5STOP DISC 25X31X1,5
-
2254833043000 STOP DISC 25X0,8X30X30X7 HSTOP DISC 25X0,8X30X30X7 H
