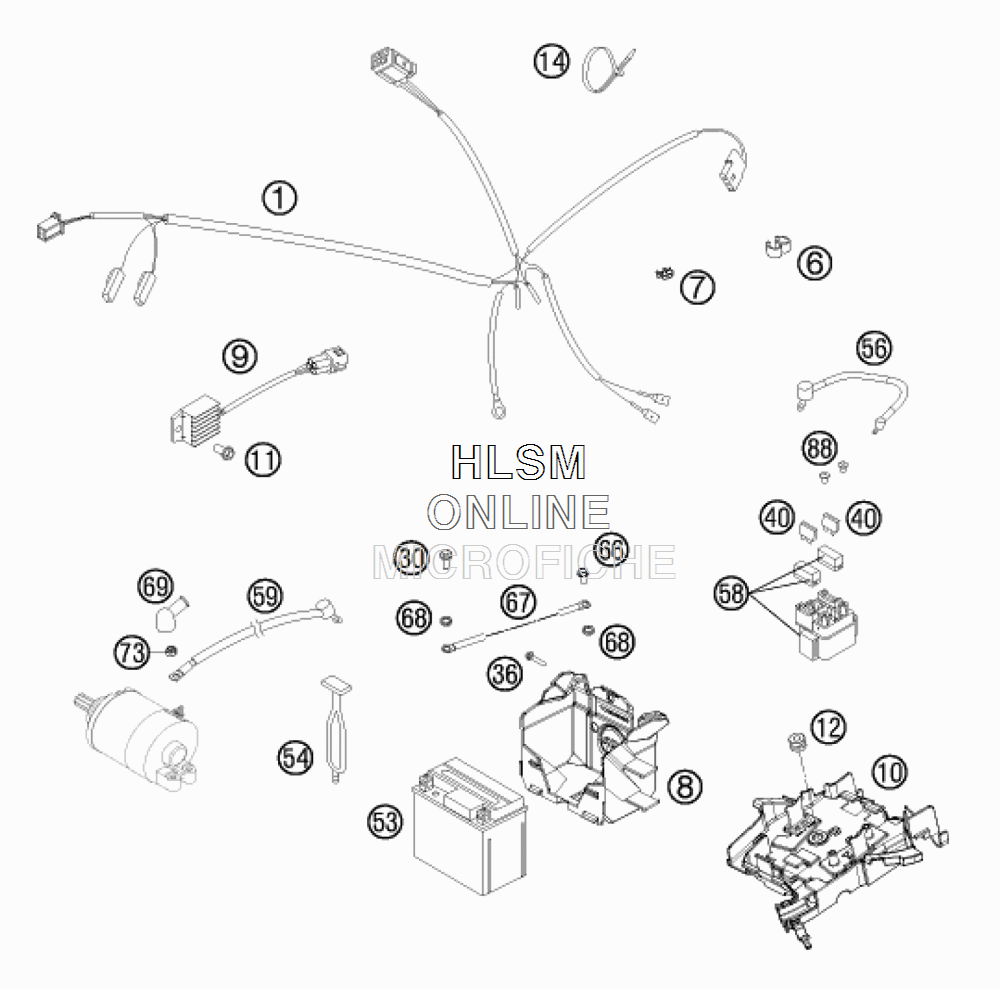

WIRING HARNESS для Ktm 250 XC - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    59411075100 WIRING HARNESS RACING USA
    WIRING HARNESS RACING USA
  • 6
    55011022100 CLAMP D=6/8MM, (BLACK)
    CLAMP D=6/8MM, (BLACK)
  • 7
    57013072100 WIRING HOLDER 16MM
    WIRING HOLDER 16MM
  • 8
    77211055000 BATTERY BOX
    BATTERY BOX
  • 9
    80011034000 VOLTAGE REGULATOR
    VOLTAGE REGULATOR
  • 10
    51511094100 ELECTRIC CASE
    ELECTRIC CASE
  • 11
    0026060136 COLLAR SCREW M6X13 ISA30
    COLLAR SCREW M6X13 ISA30
  • 12
    58214069051 RUBBER GROMMET 16X10,8X3
    RUBBER GROMMET 16X10,8X3
  • 14
    44011076140 CABLE TIE 140/2,5MM (BLACK)
    CABLE TIE 140/2,5MM (BLACK)
  • 14
    44011076200 CABLE TIE 200/3,6MM (BLACK)
    CABLE TIE 200/3,6MM (BLACK)
  • 14
    44011076305 CABLE TIE 300/4,8MM (BLACK)
    CABLE TIE 300/4,8MM (BLACK)
  • 30
    0025050126 HH COLLAR SCREW M5X12 TX30
    HH COLLAR SCREW M5X12 TX30
  • 36
    0017060205 SCREW FOR PLASTIC K60X20 SW6
    SCREW FOR PLASTIC K60X20 SW6
  • 40
    58011109110 FUSE 10 A
    FUSE 10 A
  • 53
    77311053000 BA TTER Y 12V 3AH YTX4L-BS
    BA TTER Y 12V 3AH YTX4L-BS
  • 54
    50303018000 RUBBER L=145MM
    RUBBER L=145MM
  • 56
    58711086000 WIRING HARNESS BATTERY
    WIRING HARNESS BATTERY
  • 58
    58211058000 STARTER RELAY 12V
    STARTER RELAY 12V
  • 59
    55111059000 STARTER CABLE 1100MM
    STARTER CABLE 1100MM
  • 66
    0009050106 EJOT SPIRAL SCREW SF M5X10-K
    EJOT SPIRAL SCREW SF M5X10-K
  • 67
    58411097100 GROUND CABLE D=6MM L=140MM
    GROUND CABLE D=6MM L=140MM
  • 68
    58411098100 CONTACT WASHER M6 VSV -K6
    CONTACT WASHER M6 VSV -K6
  • 69
    58440099000 PROTECTION CAP F . STARTER ENG.
    PROTECTION CAP F . STARTER ENG.
  • 73
    0985060003 SELF LOCK. NUT DIN0985-M6
    SELF LOCK. NUT DIN0985-M6
  • 88
    0902060083 AH OVAL SCREW ISO 7380 M 6X8
    AH OVAL SCREW ISO 7380 M 6X8
