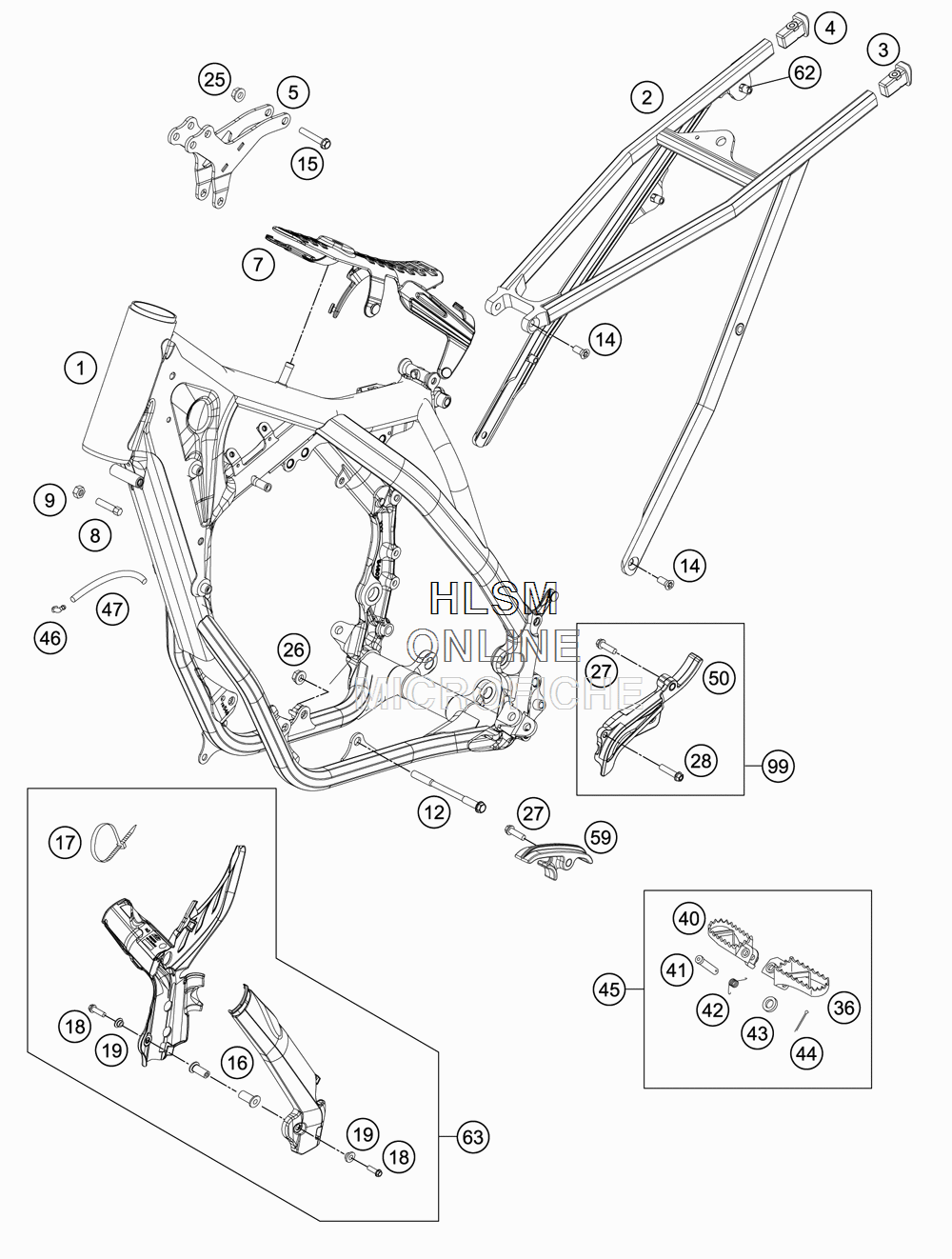

FRAME для Ktm 250 XC - 2015 года выпуска
-
№АртикулНазвание
-
15480360140004 FRAME "548N4" ((ORANGE))FRAME "548N4" ((ORANGE))
-
277203002000 SUB FRAME SXSUB FRAME SX
-
378103002010 SUB FRAME APPLICATION LEFTSUB FRAME APPLICATION LEFT
-
478103002020 SUB FRAME APPLICATION RIGHTSUB FRAME APPLICATION RIGHT
-
554803613000 REINFORCING CPL.REINFORCING CPL.
-
777207012000 TANK REST RUBBERTANK REST RUBBER
-
859001037000 SPECIAL SCREW M8X26 WS=10SPECIAL SCREW M8X26 WS=10
-
90934080003 HEXAGON NUT DIN0934-M 8HEXAGON NUT DIN0934-M 8
-
1254603013000 ENGINE BRAC.SCR. M10X105 WS=13ENGINE BRAC.SCR. M10X105 WS=13
-
140019080206S FLAT HEAD SCREW M. ISA45 M8X20FLAT HEAD SCREW M. ISA45 M8X20
-
1556530079000S HH COLLAR SCREW M8X44 WS13HH COLLAR SCREW M8X44 WS13
-
1654803092050 BLIND PLUG-IN NUT M5 WN 22ABLIND PLUG-IN NUT M5 WN 22A
-
1744011076140 CABLE TIE 140/2,5MM (BLACK)CABLE TIE 140/2,5MM (BLACK)
-
1744011076305 CABLE TIE 300/4,8MM (BLACK)CABLE TIE 300/4,8MM (BLACK)
-
180738050250 COU.SUNK SCR. AH ISO7380 M5X25COU.SUNK SCR. AH ISO7380 M5X25
-
1954803092060 BUSH F . FRAME PROTECTIONBUSH F . FRAME PROTECTION
-
2506923080003 HEXAGON NUT DIN EN1661 M8 SW13HEXAGON NUT DIN EN1661 M8 SW13
-
2654310086100 SELF LOCKING NUT M10 CU WS=14SELF LOCKING NUT M10 CU WS=14
-
270025080306 HH COLLAR SCREW M8X30 TX40HH COLLAR SCREW M8X30 TX40
-
280025060306 HH COLLAR SCREW M6X30 TX30HH COLLAR SCREW M6X30 TX30
-
3659003040250 % FOOT PEG L/S (SILVER)% FOOT PEG L/S (SILVER)
-
4059003041250 FOOT PEG R/S (SILVER)FOOT PEG R/S (SILVER)
-
4154803044000 PIN FOR FOOT PED 51.5X9.8 MMPIN FOR FOOT PED 51.5X9.8 MM
-
4254603041000 FOOTREST SPRING L/S & R/SFOOTREST SPRING L/S & R/S
-
430125100003 WASHER DIN0125-A10,5WASHER DIN0125-A10,5
-
440094032253 PIN DIN0094-3,2X25 STEELPIN DIN0094-3,2X25 STEEL
-
455030314013390 FOOTPEG L.+R. CPL.FOOTPEG L.+R. CPL.
-
4650303089000 ANGLE PIECEANGLE PIECE
-
4755007016001 PVC-HOSE 7X10 PER METERPVC-HOSE 7X10 PER METER
-
5054803096000 SPROCKET COVERSPROCKET COVER
-
5977203053000 CHAIN SLIDING PIECE BELOWCHAIN SLIDING PIECE BELOW
-
6277303139000 BLIND RIVET NUT EM6-60LF/HXBLIND RIVET NUT EM6-60LF/HX
-
6377203094000 PLASTIC FRAME PROTECTION SETPLASTIC FRAME PROTECTION SET
-
9954803096010 SPROCKET COVER KITSPROCKET COVER KIT
Все узлы модели:
- ACCESSORIES KIT
- AIR FILTER
- BRAKE CALIPER FRONT
- BRAKE CALIPER REAR
- CARBURETOR
- CLUTCH
- CLUTCH COVER
- COOLING SYSTEM
- CRANKSHAFT - PISTON
- CYLINDER CYLINDER HEAD
- DECAL
- ELECTRIC STARTER
- ENGINE CASE
- EXHAUST CONTROL
- EXHAUST SYSTEM
- • FRAME
- FRONT FORK DISSASSEMBLED
- FRONT FORK TRIPLE CLAMP
- FRONT WHEEL
- HAND BRAKE CYLINDER
- HANDLEBAR - CONTROLS
- IGNITION SYSTEM
- KICKSTARTER
- MASK - FENDERS
- PRO LEVER LINKING
- REAR BRAKE CONTROL
- REAR WHEEL
- REED VALVE CASE
- SHIFTING MECHANISM
- SHOCK ABSORBER
- SHOCK ABSORBER DISASSEMBLED
- SIDE / CENTER STAND
- SWINGARM
- TANK - SEAT - COVER
- TRANSMISSION - COUNTERSHAFT
- TRANSMISSION - MAIN SHAFT
- WIRING HARNESS
- WP SHIMS FOR SETTING
