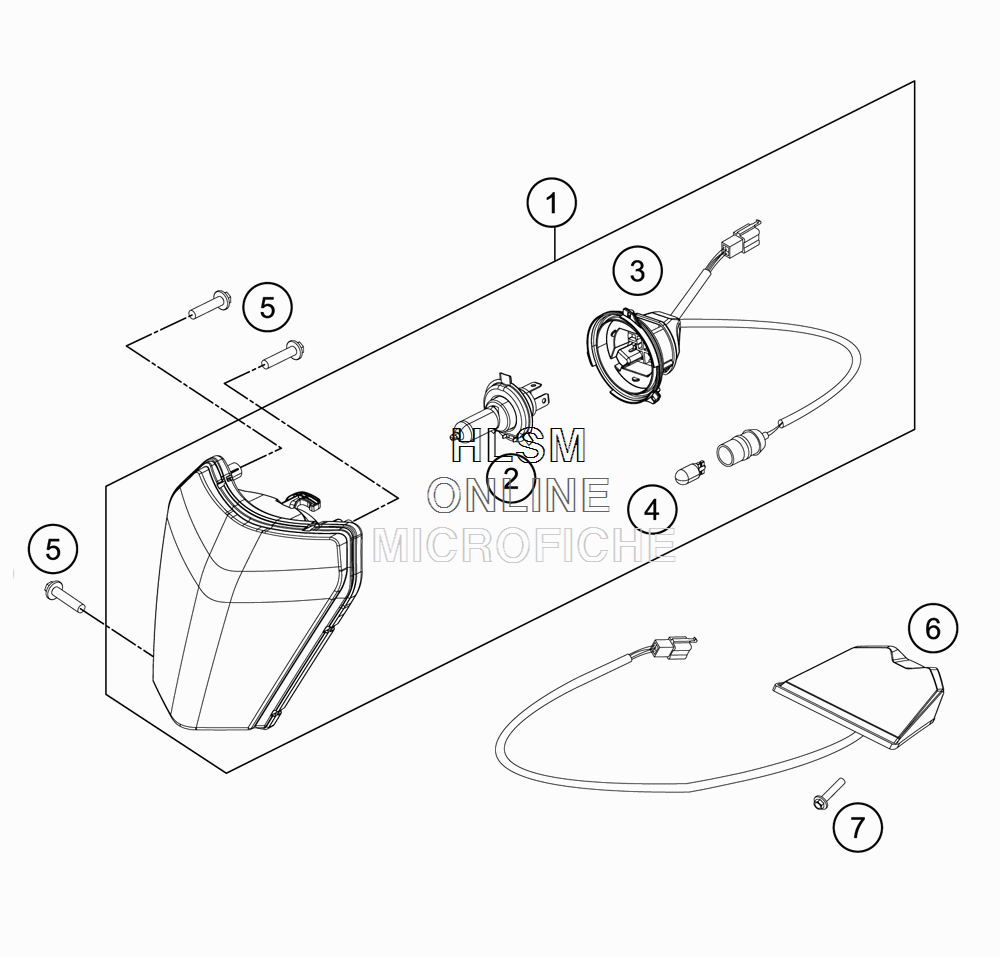

LIGHTING SYSTEM для Ktm 200 XCW - 2015 года выпуска
‹-+›
-
№АртикулНазвание
-
178114001000 HEAD LIGHT CPL.HEAD LIGHT CPL.
-
254611038012 BULB HS1 12V 35/35W (WHITE)BULB HS1 12V 35/35W (WHITE)
-
378114001050 LAMP BRACKET CPL.LAMP BRACKET CPL.
-
449011435100 BULB 12V 5W (W2,1X9,5D) PHIL.BULB 12V 5W (W2,1X9,5D) PHIL.
-
50081050181 SCREW FOR PLASTIC K50X18 T20SCREW FOR PLASTIC K50X18 T20
-
678114040000 REAR LIGHTREAR LIGHT
-
70017060255 EJOT PT SCREW K60X25-Z SW6EJOT PT SCREW K60X25-Z SW6
