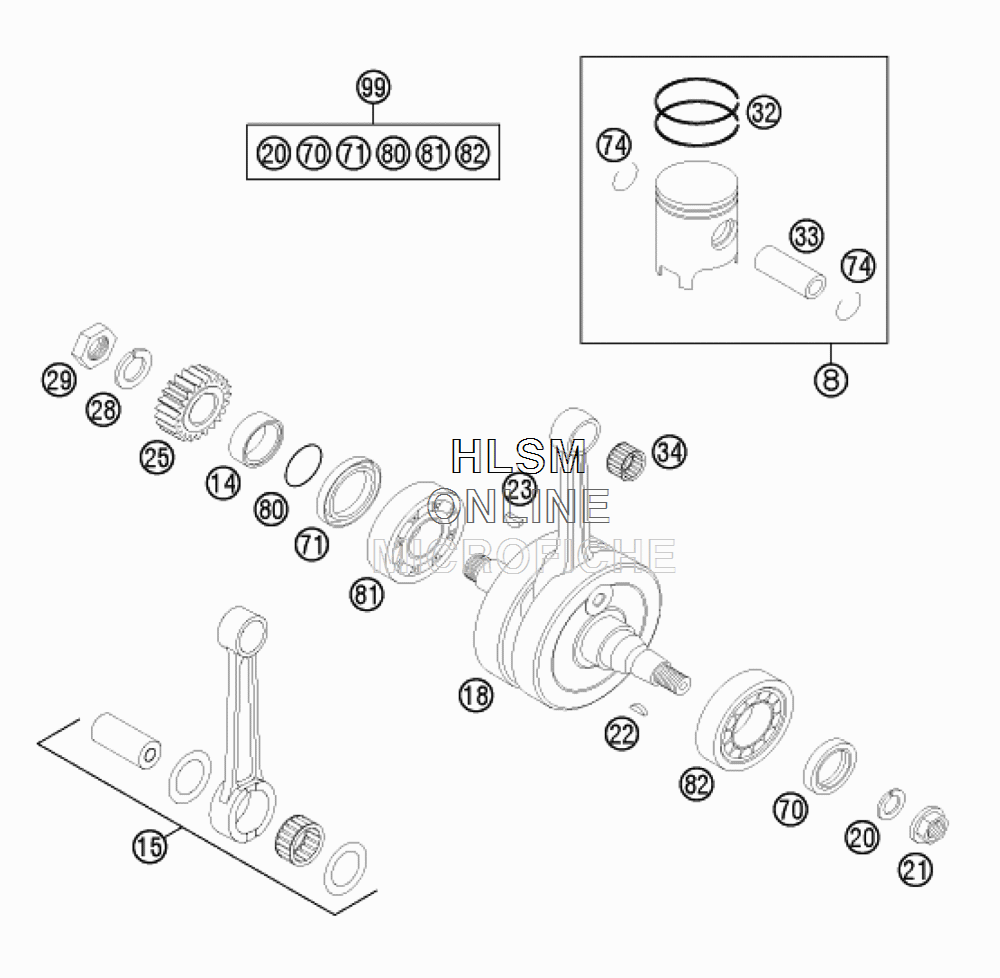

CRANKSHAFT - PISTON для Ktm 200 XCW - 2015 года выпуска

  • №
    Артикул
    Название
  • 8
    52330007300I PISTON I CPL. 64MM
    PISTON I CPL. 64MM
  • 8
    52330007300II PISTON II CPL. 64MM
    PISTON II CPL. 64MM
  • 14
    54633014100 SPACER BUSHING 12MM
    SPACER BUSHING 12MM
  • 15
    52330015100 CON.ROD REPAIR KIT
    CON.ROD REPAIR KIT
  • 18
    52330018200 CRANKSHAFT CPL.
    CRANKSHAFT CPL.
  • 20
    50230029012 LOCKING RING VSK 12
    LOCKING RING VSK 12
  • 21
    49030021000 COLLAR NUT M12X1 R/S
    COLLAR NUT M12X1 R/S
  • 22
    0888030050 WOODRUFF KEY DIN6888-3X5X13
    WOODRUFF KEY DIN6888-3X5X13
  • 23
    6946005 WOODRUFF KEY 5X6,5 HARDED
    WOODRUFF KEY 5X6,5 HARDED
  • 25
    50332023123 PRIMAR Y PINION 23-T
    PRIMAR Y PINION 23-T
  • 28
    50230029016 LOCKING RING VSK 16
    LOCKING RING VSK 16
  • 29
    50330029000 HEXAGON NUT M 16 X 1,5 - L/S
    HEXAGON NUT M 16 X 1,5 - L/S
  • 32
    52330032100 SQUARE RING 64X1
    SQUARE RING 64X1
  • 33
    52330033100 PISTON PIN 11X16X46
    PISTON PIN 11X16X46
  • 34
    52330034000 NEEDLE BEARING KV16X20X20 FN
    NEEDLE BEARING KV16X20X20 FN
  • 70
    0760253570 SHAFT SEAL RING 25X35X7 BTSL
    SHAFT SEAL RING 25X35X7 BTSL
  • 71
    0760324564 SHAFT SEAL RING 32X45X6,5 BT
    SHAFT SEAL RING 32X45X6,5 BT
  • 74
    52330074100 WIRE LOCK RING 16X1,2
    WIRE LOCK RING 16X1,2
  • 80
    0770250020 O-RING 25,00X2,00 NBR 70
    O-RING 25,00X2,00 NBR 70
  • 81
    0625063055 BALL BEARING 6305 JR2 CS36
    BALL BEARING 6305 JR2 CS36
  • 82
    50330082000 CYL.ROLLE R BEAR.NJ206 ET2XCS46
    CYL.ROLLE R BEAR.NJ206 ET2XCS46
  • 99
    00050002300 CRANKSHAFT REP. KIT
    CRANKSHAFT REP. KIT
