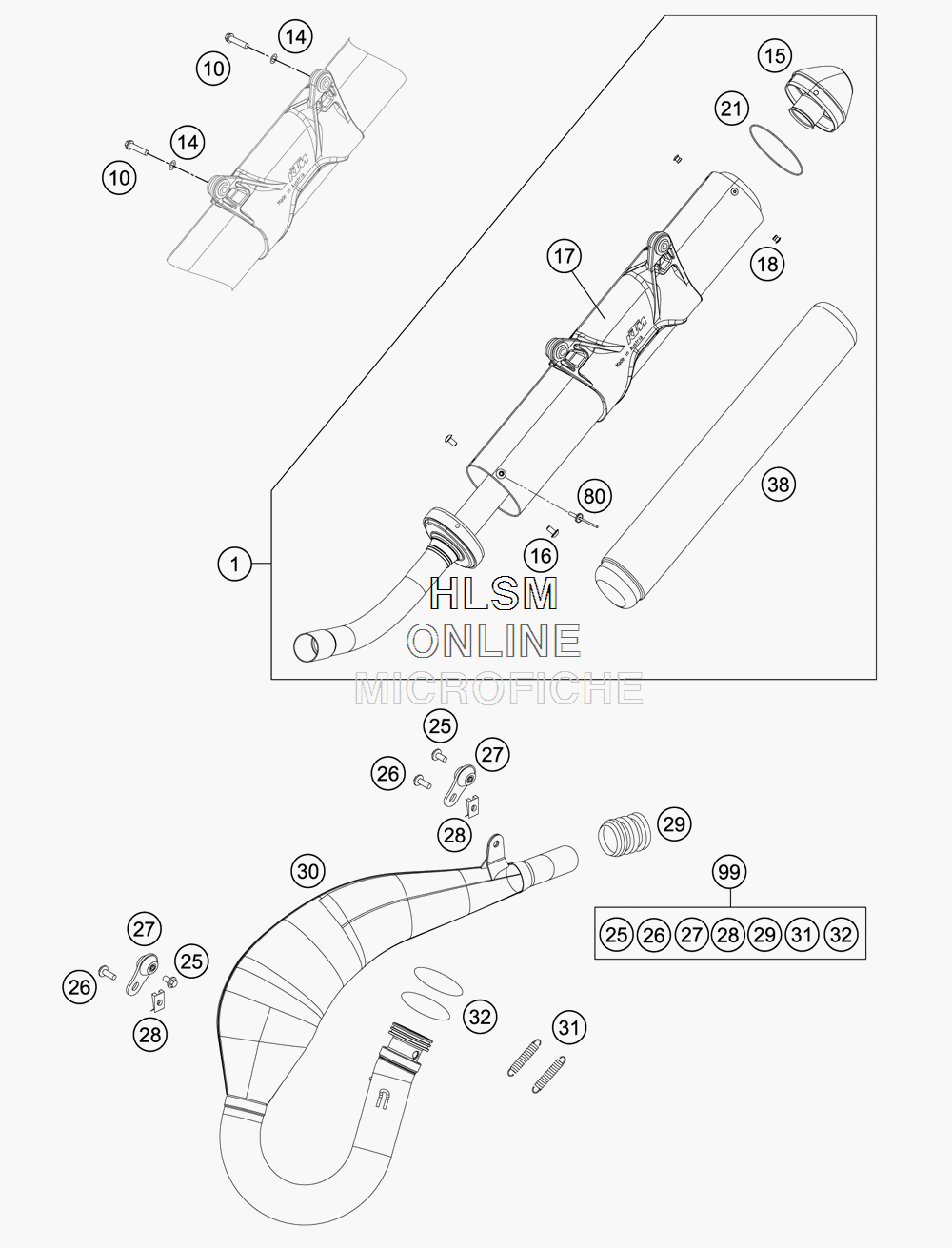

EXHAUST SYSTEM для Ktm 200 XCW - 2015 года выпуска
-
№АртикулНазвание
-
154805083200 MAIN SILENCERMAIN SILENCER
-
100025060306 HH COLLAR SCREW M6X30 TX30HH COLLAR SCREW M6X30 TX30
-
140137060003 SPRING WASHER DIN0137-B6SPRING WASHER DIN0137-B6
-
1554805083260 ENDCAP CPL.ENDCAP CPL.
-
1658605083010 SCREW TORX M5X10SCREW TORX M5X10
-
1754805183085 SILENCER HOUS. CPL. W . HANGINGSILENCER HOUS. CPL. W . HANGING
-
180011480800 DUMMY RIVET 4,8X 8 NIRODUMMY RIVET 4,8X 8 NIRO
-
210770740015 O-RING 74,00X1,50 FKM 75SHO-RING 74,00X1,50 FKM 75SH
-
250024060106 HH COLLAR SCREW M6X10 TX30HH COLLAR SCREW M6X10 TX30
-
260024060156 HH COLLAR SCREW M6X15 TX30HH COLLAR SCREW M6X15 TX30
-
2750305012000 SWING ELEMENT FOR EXHAUST PIPESWING ELEMENT FOR EXHAUST PIPE
-
2854603048100 RANGE CHANGE METAL NUT M6RANGE CHANGE METAL NUT M6
-
2950205057000 SILICON SLEEVE D=29/31MMSILICON SLEEVE D=29/31MM
-
3052305008600 EXHAUST MANIFOLDEXHAUST MANIFOLD
-
3150305016000 TEN.SPRING L=62MM EY .MOVEABLETEN.SPRING L=62MM EY .MOVEABLE
-
320770440030 O-RING 44,00X3,00 VITONO-RING 44,00X3,00 VITON
-
3854805078315 ROCK WOOL 315GROCK WOOL 315G
-
800011401200 DUMMY RIVET 4,0X12 ALUDUMMY RIVET 4,0X12 ALU
-
9900050000811 EXHAUST HARDWARE KITEXHAUST HARDWARE KIT
