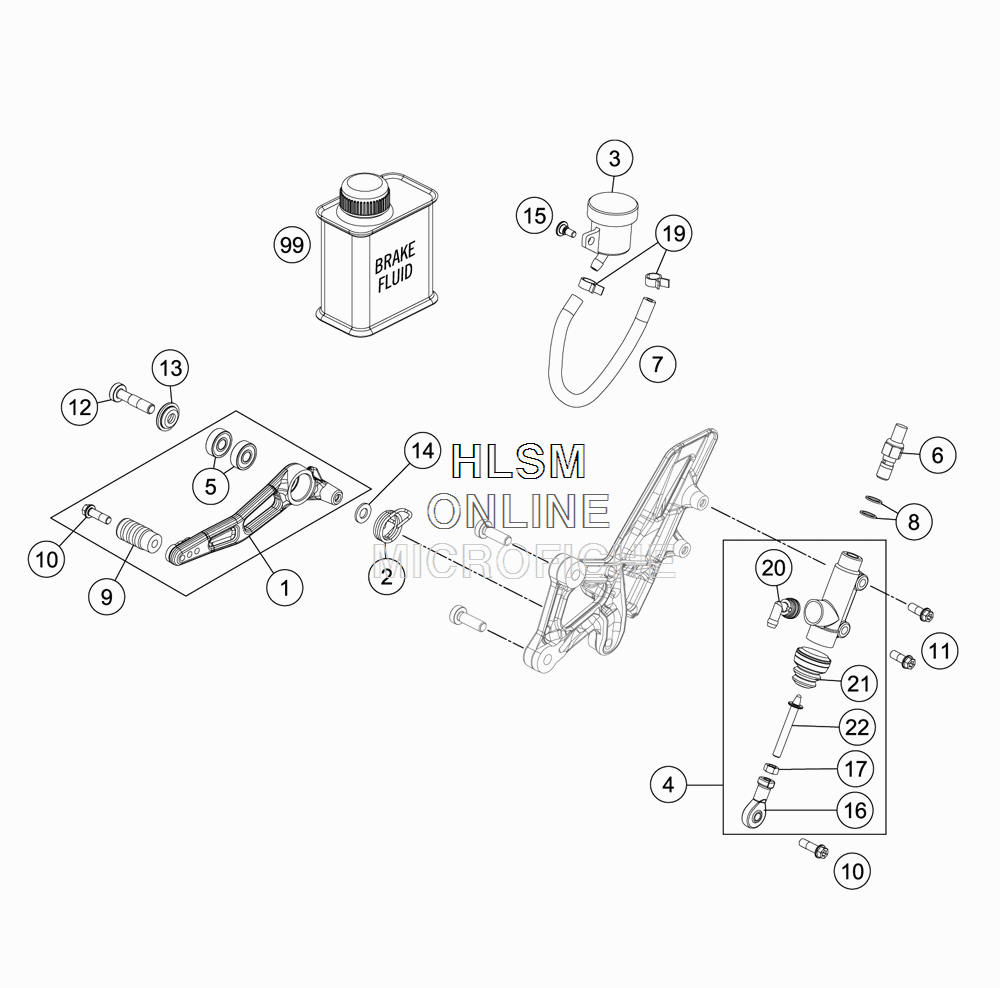

REAR BRAKE CONTROL для Ktm 1290 SUPER DUKE R ABS BLACK - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    6131305004433S FOOT BRAKE LEVER CPL.
    FOOT BRAKE LEVER CPL.
  • 2
    61313052000 SPRING
    SPRING
  • 3
    61013069000 RESERVOIR REAR CPL.
    RESERVOIR REAR CPL.
  • 4
    6031306000030 REAR BRAKE CONTROL
    REAR BRAKE CONTROL
  • 5
    0625006087 GROOVED BALL BEAR. 608 2RS C3
    GROOVED BALL BEAR. 608 2RS C3
  • 6
    60311051000 BRAKE LIGHT SWITCH REAR
    BRAKE LIGHT SWITCH REAR
  • 7
    69013069001 HOSE FOR RESERVOIR 6X1,5
    HOSE FOR RESERVOIR 6X1,5
  • 8
    0603100141 COPPER GASKET DIN7603-10X14X1
    COPPER GASKET DIN7603-10X14X1
  • 9
    58303060051 BRAKE LEVER PEDAL DUKE'94
    BRAKE LEVER PEDAL DUKE'94
  • 10
    0025060206S HH COLLAR SCREW M6X20 TX30
    HH COLLAR SCREW M6X20 TX30
  • 11
    0025060166S HH COLLAR SCREW M6X16 ISA 30
    HH COLLAR SCREW M6X16 ISA 30
  • 12
    0035080356S SCREW M8X35 ISA45 SS
    SCREW M8X35 ISA45 SS
  • 13
    61334041000 SPECIAL WASHER D=23X7,2MM
    SPECIAL WASHER D=23X7,2MM
  • 14
    0125080003 WASHER DIN0125-A 8,4
    WASHER DIN0125-A 8,4
  • 15
    69013099050 SCREW F . EXPANSION TANK
    SCREW F . EXPANSION TANK
  • 16
    54603069000 SWIVEL HEAD M6 FOOT BRAKE LEVER
    SWIVEL HEAD M6 FOOT BRAKE LEVER
  • 17
    0934060003 HEXAGON NUT DIN0934-M 6
    HEXAGON NUT DIN0934-M 6
  • 18
    6031306000030 REAR BRAKE CONTROL
    REAR BRAKE CONTROL
  • 19
    58007017000 YDNAC CLAMP 10101 (10,4MM)
    YDNAC CLAMP 10101 (10,4MM)
  • 20
    54513155000 ANGLE PIECE
    ANGLE PIECE
  • 21
    54513151000 RUBBER SLEEVE
    RUBBER SLEEVE
  • 22
    60313056044 PUSH ROD CPL.
    PUSH ROD CPL.
  • 99
    00062030000 BRAKE FLUID DOT5.1 0,25L
    BRAKE FLUID DOT5.1 0,25L
