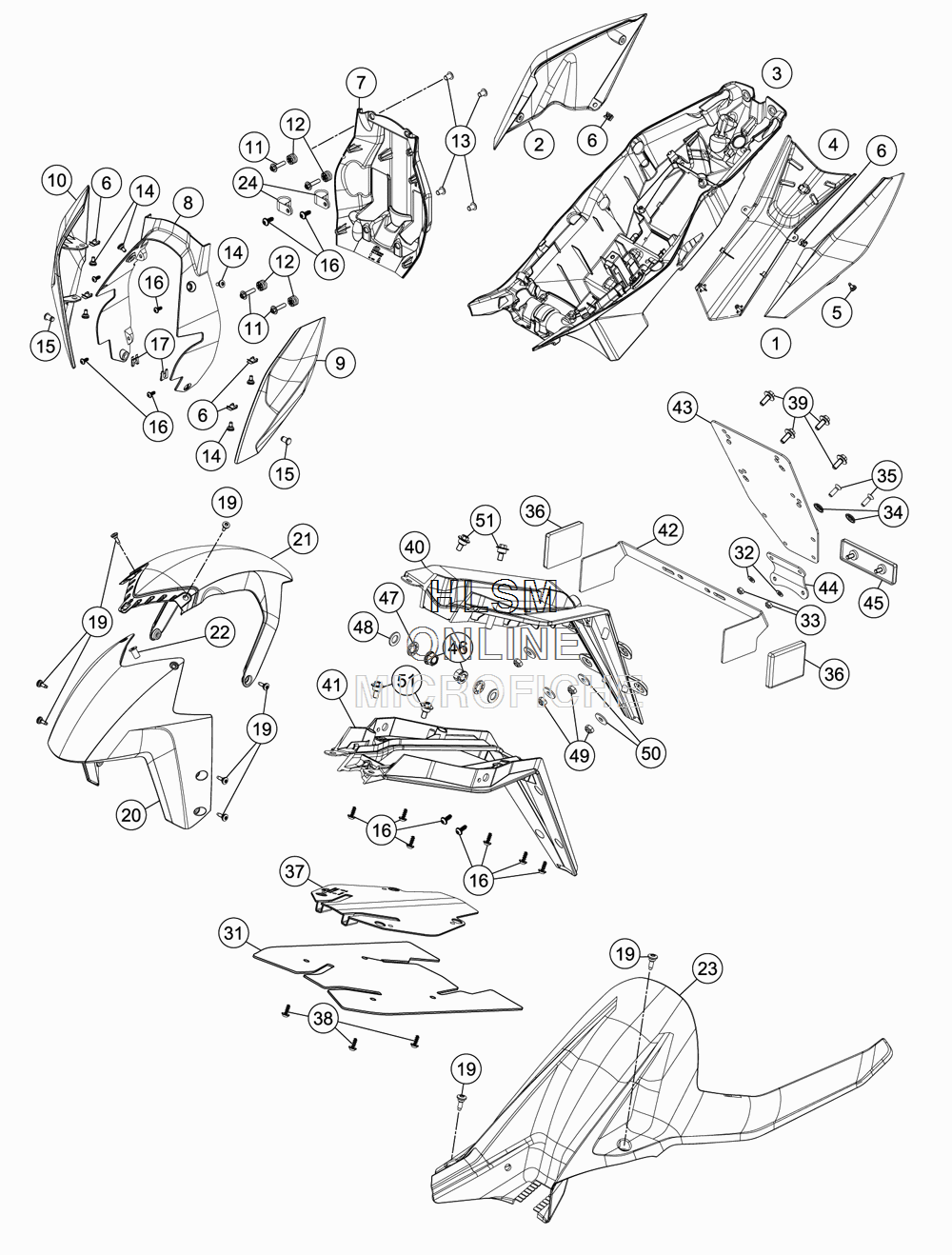

MASK - FENDER для Ktm 1290 SUPER DUKE R ABS BLACK - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    61308041000CAA REAR FAIRING L/S (BLACK)
    REAR FAIRING L/S (BLACK)
  • 2
    61308042000CAA REAR FAIRING R/S (BLACK)
    REAR FAIRING R/S (BLACK)
  • 3
    61308018000 TAIL END LOWER PART
    TAIL END LOWER PART
  • 4
    6130804000033 REAR F AIRING LOWER PART (BLACK)
    REAR F AIRING LOWER PART (BLACK)
  • 5
    0081050141 EJOT PT SCREW 50X14 WN 1451
    EJOT PT SCREW 50X14 WN 1451
  • 6
    69008021080 RANGE CHANGE METAL NUT M5
    RANGE CHANGE METAL NUT M5
  • 7
    61314060000 MASK REAR PANEL
    MASK REAR PANEL
  • 8
    61314061000 MASK MIDDLE PART
    MASK MIDDLE PART
  • 9
    6130800300030A MASK SPOILER L/S (BLACK)
    MASK SPOILER L/S (BLACK)
  • 10
    6130800400030A MASK SPOILER R/S (BLACK)
    MASK SPOILER R/S (BLACK)
  • 11
    0024060256 HH COLLAR SCREW M6X25 TX30
    HH COLLAR SCREW M6X25 TX30
  • 12
    76014069051 RUBBER SLEEVE 7X10,8X16MM
    RUBBER SLEEVE 7X10,8X16MM
  • 13
    76014062000 COLLAR BUSHING 6,2X7,5X13X12
    COLLAR BUSHING 6,2X7,5X13X12
  • 14
    69008021160 SPECIAL SCREW M5X12
    SPECIAL SCREW M5X12
  • 15
    61313057000 BOLT 8X12X16MM
    BOLT 8X12X16MM
  • 16
    0081050121 SCREW FOR PLASTIC K50X12 T20
    SCREW FOR PLASTIC K50X12 T20
  • 17
    60013058000 SECURING CLIP D=8MM
    SECURING CLIP D=8MM
  • 19
    69008021060 SPECIAL SCREW M5X17
    SPECIAL SCREW M5X17
  • 20
    6130801000030A FENDER FRONT (BLACK)
    FENDER FRONT (BLACK)
  • 21
    6130801100033 REAR FENDER (BLACK)
    REAR FENDER (BLACK)
  • 22
    60008008050 BLIND PLUG-IN NUT M5 WN 16A
    BLIND PLUG-IN NUT M5 WN 16A
  • 23
    61304050000 SPLASH PROTECTOR
    SPLASH PROTECTOR
  • 24
    69007029000 PVC-CLAMP HEYCO 13,9 3379
    PVC-CLAMP HEYCO 13,9 3379
  • 31
    61308123010 SPLASH PROTECTION (AUSTRALIA)
    SPLASH PROTECTION (AUSTRALIA)
  • 32
    0125050003 WASHER DIN0125-A 5,3
    WASHER DIN0125-A 5,3
  • 33
    0985050003 SELF LOCKING NUT DIN0985-M 5
    SELF LOCKING NUT DIN0985-M 5
  • 34
    40006006000 WASHER 6MM
    WASHER 6MM
  • 35
    0966050163 OVAL HEAD SCREW DIN0966-M 5X16
    OVAL HEAD SCREW DIN0966-M 5X16
  • 36
    16512180100 SIDE REFLECTOR (RED)ONLY USA
    SIDE REFLECTOR (RED)ONLY USA
  • 37
    61308023010 SPLASH PROTECTION
    SPLASH PROTECTION
  • 39
    0024060156 HH COLLAR SCREW M6X15 TX30
    HH COLLAR SCREW M6X15 TX30
  • 40
    61308022000 NUMBER PLATE CARRIER UPPER PART
    NUMBER PLATE CARRIER UPPER PART
  • 41
    61308023000 NUMBER PLATE CARRIER LOWER PART
    NUMBER PLATE CARRIER LOWER PART
  • 42
    62512081000 BRACKET SIDE REFLECTOR ONLY USA
    BRACKET SIDE REFLECTOR ONLY USA
  • 43
    60012081200 LICENCE FITTING
    LICENCE FITTING
  • 44
    58412080050 BRACKET FOR REFLECTOR
    BRACKET FOR REFLECTOR
  • 45
    58412080000 REFLECTOR (RED)
    REFLECTOR (RED)
  • 46
    58414030000 HH COLLAR NUT M10X1,25 WS=13
    HH COLLAR NUT M10X1,25 WS=13
  • 47
    0797100003 LOCK WASHER DIN6797-J10,5 ZI
    LOCK WASHER DIN6797-J10,5 ZI
  • 48
    0433100003 WASHER 18X10,5X1,6
    WASHER 18X10,5X1,6
  • 49
    0985060003 SELF LOCK. NUT DIN0985-M 6
    SELF LOCK. NUT DIN0985-M 6
  • 50
    0021060003 WASHER DIN9021-A 6,4
    WASHER DIN9021-A 6,4
  • 51
    83008100015 SPECIAL SCREW M6X15X5,5
    SPECIAL SCREW M6X15X5,5
