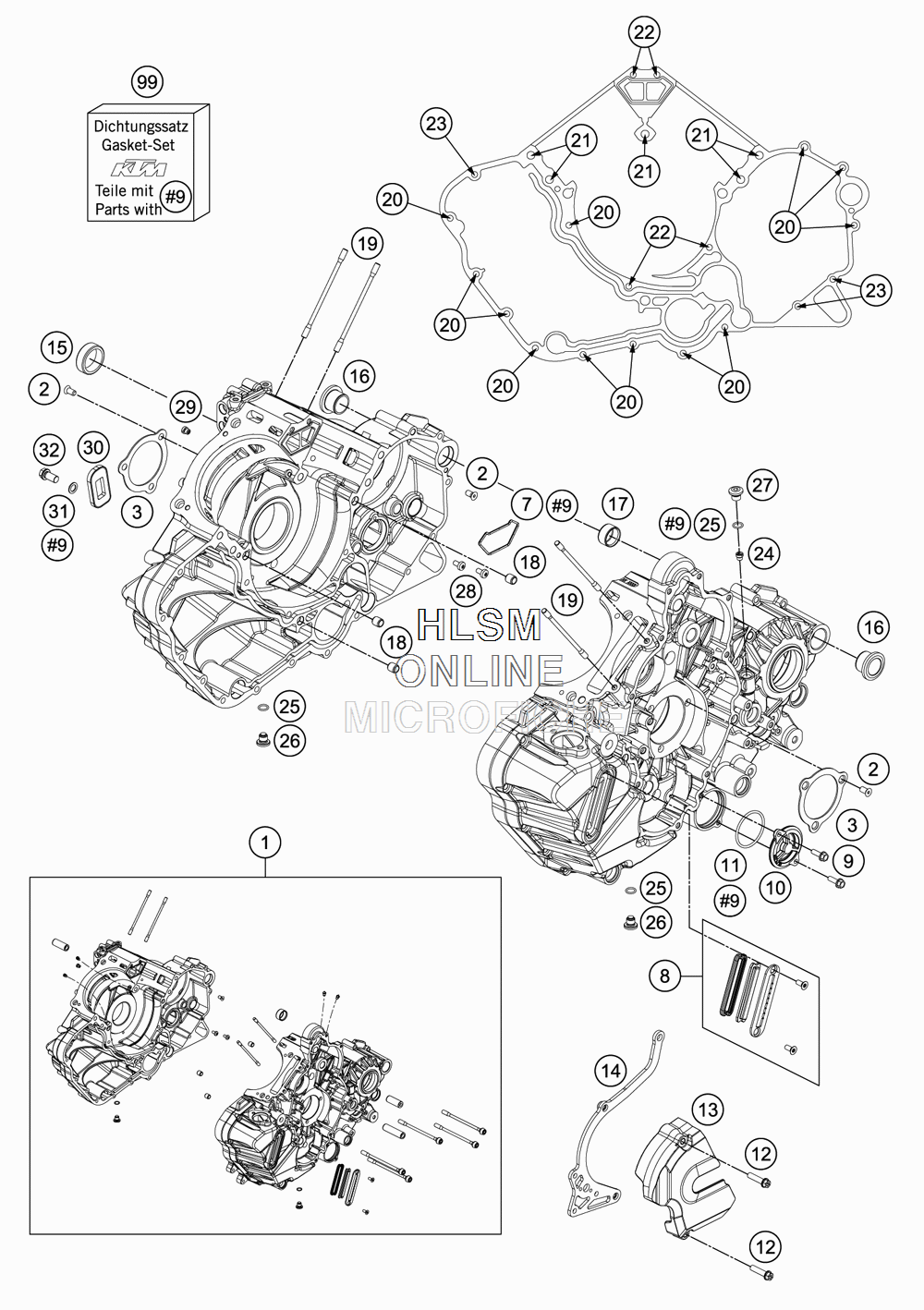

ENGINE CASE для Ktm 1290 SUPER DUKE R ABS BLACK - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    6133000004424 ENGINE CASE CPL. W/ BEARINGS
    ENGINE CASE CPL. W/ BEARINGS
  • 2
    0019050106S INT . TORX FLAT HEAD M5X10 10.9
    INT . TORX FLAT HEAD M5X10 10.9
  • 3
    61230084000 BRACKET FOR BEARING INSERT
    BRACKET FOR BEARING INSERT
  • 7
    61230039100 MOLDED RING CASE CENTER
    MOLDED RING CASE CENTER
  • 8
    62638084044 OIL SIGHT GLASS CPL.
    OIL SIGHT GLASS CPL.
  • 9
    0025050166 HH COLLAR SCREW M5X16 TX30
    HH COLLAR SCREW M5X16 TX30
  • 10
    75038041200 OIL FILTER CAP
    OIL FILTER CAP
  • 11
    07700390261 O-RING 39,34X2,62
    O-RING 39,34X2,62
  • 12
    0025060256 HH COLLAR SCREW M6X25 TX30
    HH COLLAR SCREW M6X25 TX30
  • 13
    69030060144 PINION COVER CPL.
    PINION COVER CPL.
  • 14
    60330047144 CHAIN FAIL. PROTECTION CPL.
    CHAIN FAIL. PROTECTION CPL.
  • 15
    61330157050 SLIDE BEARING
    SLIDE BEARING
  • 16
    60030010000 SWING BEARING OUTSIDE
    SWING BEARING OUTSIDE
  • 17
    60030023000 DOWEL 20,1X24X12
    DOWEL 20,1X24X12
  • 18
    49030090000 DOWEL 9,8 X 7 X 10
    DOWEL 9,8 X 7 X 10
  • 19
    61230044000 STUD M6X110 08
    STUD M6X110 08
  • 20
    0025060806 HH COLLAR SCREW M6X80 TX30
    HH COLLAR SCREW M6X80 TX30
  • 21
    61230043000 CASE SCREW M8X125 AS
    CASE SCREW M8X125 AS
  • 22
    0025060906 HH COLLAR SCREW M6X90 TX30
    HH COLLAR SCREW M6X90 TX30
  • 23
    0025060606 HH COLLAR SCREW M6X60 TX30
    HH COLLAR SCREW M6X60 TX30
  • 24
    60038029200 REDUCING JET "30" M6X0,75
    REDUCING JET "30" M6X0,75
  • 25
    07700900151 O-RING 9X1,5 V80 SH
    O-RING 9X1,5 V80 SH
  • 26
    77336056095 SCREW PLUG
    SCREW PLUG
  • 27
    77236080000 SCREW PLUG
    SCREW PLUG
  • 28
    0018050103 INT . TORX OVAL HEAD M 5X10 8.8
    INT . TORX OVAL HEAD M 5X10 8.8
  • 29
    57031523100 MAIN JET 100 DELLORTO
    MAIN JET 100 DELLORTO
  • 30
    60005026000 SLS-VALVE
    SLS-VALVE
  • 31
    45038017000 SEAL RING 8X14X1 AI
    SEAL RING 8X14X1 AI
  • 32
    0025080166 HH COLLAR SCREW M8X16 TX40
    HH COLLAR SCREW M8X16 TX40
  • 99
    61330099000 GASKET KIT ENGINE CPL.
    GASKET KIT ENGINE CPL.
