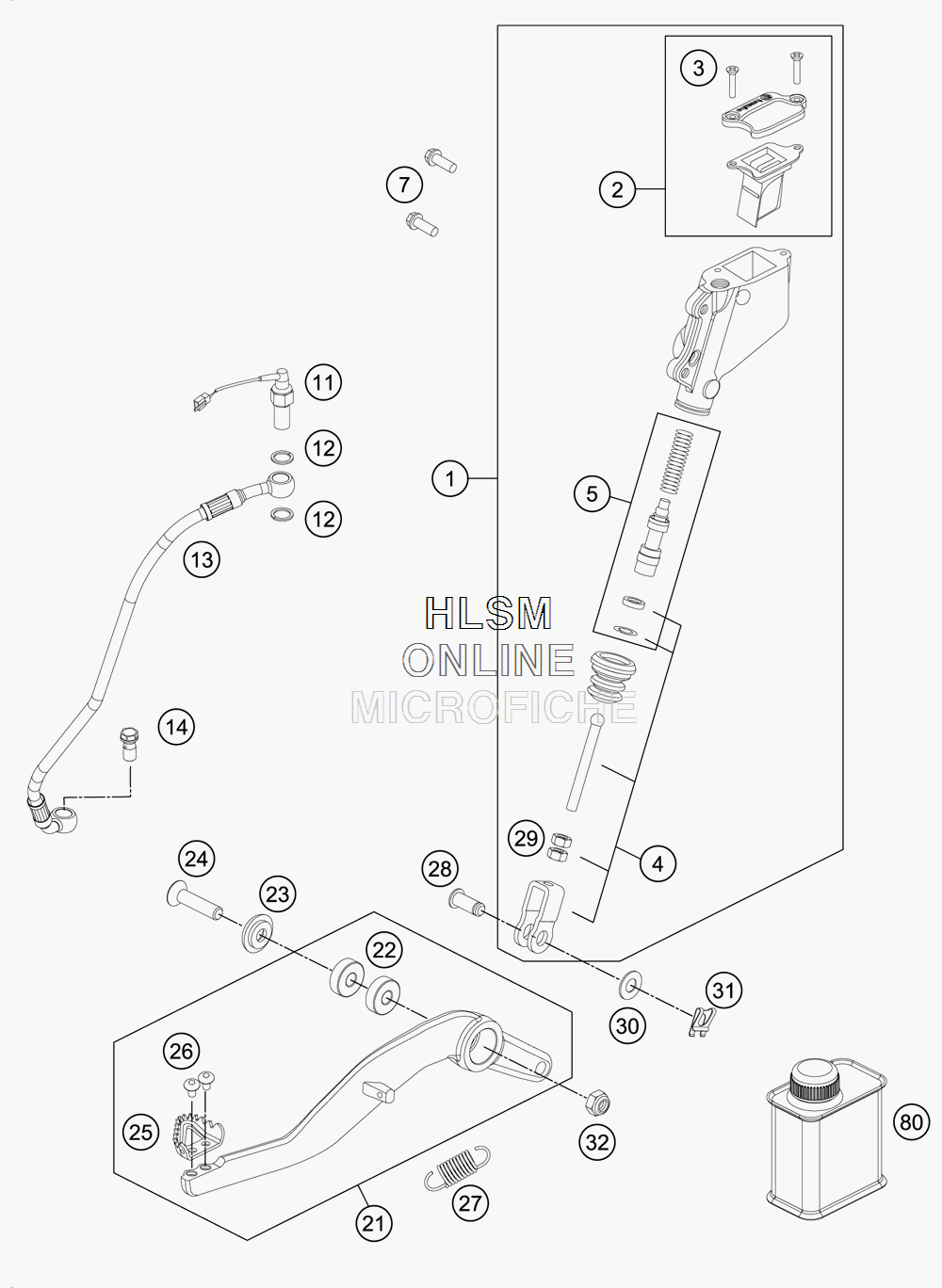

REAR BRAKE CONTROL для Ktm 990 SUPERMOTO - 2013 года выпуска`
-
№АртикулНазвание
-
160013060200 MAIN BRAKE CYLINDER CPL.MAIN BRAKE CYLINDER CPL.
-
260013059100 COVER MAIN BRAKE CYLINDER CPL.COVER MAIN BRAKE CYLINDER CPL.
-
30965040161 FLAT HEAD SCREW DIN0965-M 4X16FLAT HEAD SCREW DIN0965-M 4X16
-
460013056044 PUSH ROD CPL.PUSH ROD CPL.
-
560013061000 REPAIR KIT PISTONREPAIR KIT PISTON
-
759009062016 SPECIAL SCREW M6X16 WS=8 10.9SPECIAL SCREW M6X16 WS=8 10.9
-
1162111051000 BRAKE LIGHT SWITCH REARBRAKE LIGHT SWITCH REAR
-
120603100141 COPPER GASKET DIN7603-10X14X1COPPER GASKET DIN7603-10X14X1
-
1362142001000 BREAK HOSE CPL.BREAK HOSE CPL.
-
1454813020100 HOLLOW SCREW BLACK M10X1X19HOLLOW SCREW BLACK M10X1X19
-
216251305004401S FOOT BRAKE LEVER CPL.FOOT BRAKE LEVER CPL.
-
220625006087 GROOVED BALL BEAR. 608 2RS C3GROOVED BALL BEAR. 608 2RS C3
-
2362603062000 SPECIAL WASHER 8X24 ALU H=2,6SPECIAL WASHER 8X24 ALU H=2,6
-
240019080356 COUNTERSUNK SCREW ISA45 M8X35COUNTERSUNK SCREW ISA45 M8X35
-
2554813051100 STEP PLATE FOR BRAKE LEVERSTEP PLATE FOR BRAKE LEVER
-
2658605083010 SCREW TORX M5X10SCREW TORX M5X10
-
2754603062000 RETURN SPRING FOR BRAKE LEVERRETURN SPRING FOR BRAKE LEVER
-
2860013057000 BOLT F. LINK FORK 8X20X16,5BOLT F. LINK FORK 8X20X16,5
-
290934060003 HEXAGON NUT DIN0934-M 6HEXAGON NUT DIN0934-M 6
-
300125080003 WASHER DIN0125-A 8,4WASHER DIN0125-A 8,4
-
3160013058000 SECURING CLIP D=8MMSECURING CLIP D=8MM
-
320985080003 SELF LOCKING NUT DIN0985-M 8SELF LOCKING NUT DIN0985-M 8
-
8000062030000 BRAKE FLUID DOT 5.1 0,25LBRAKE FLUID DOT 5.1 0,25L
