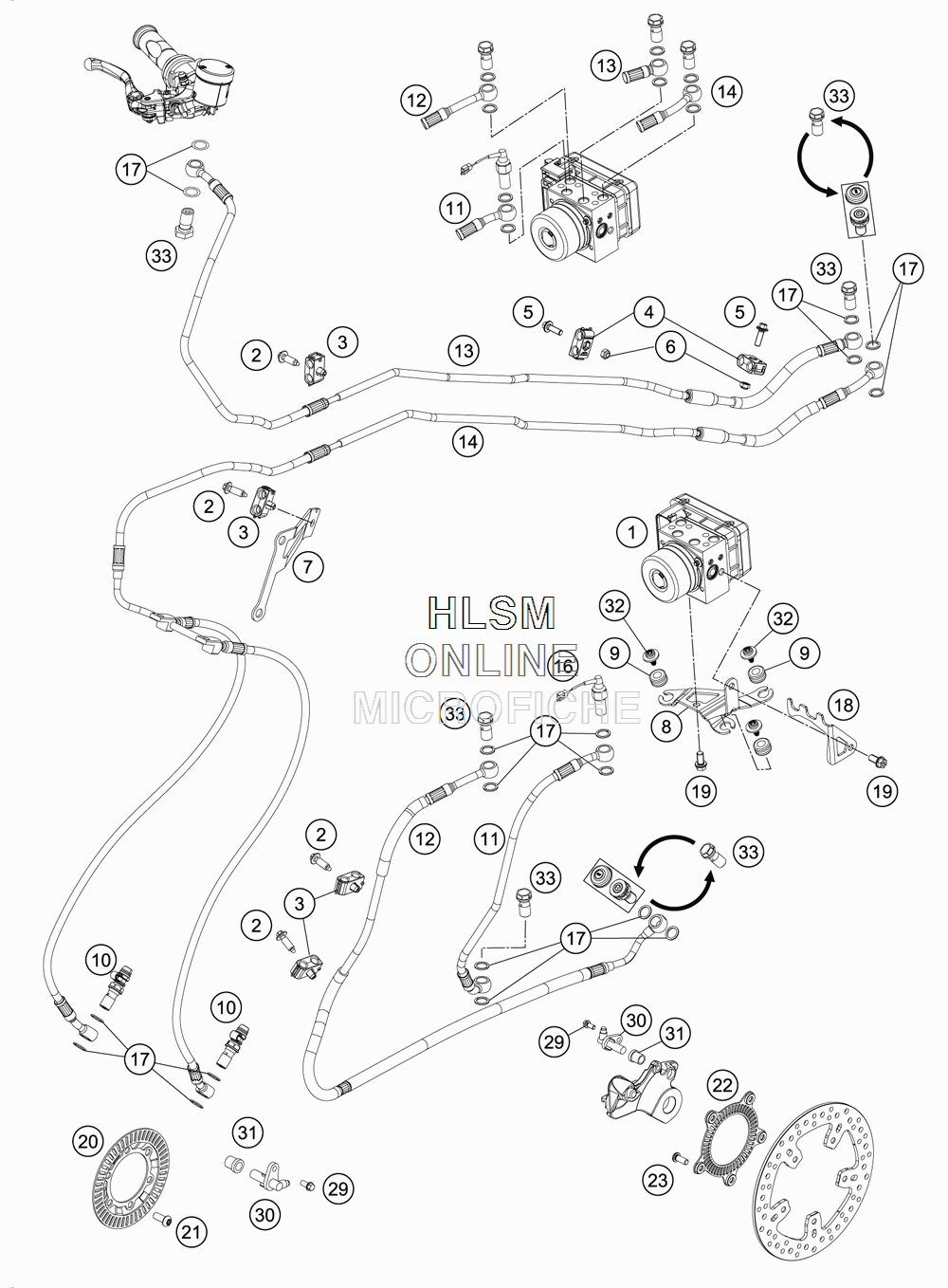

ANTI SKID SYSTEM ABS для Ktm 990 SUPERMOTO - 2013 года выпуска
-
№АртикулНазвание
-
162142031044 ABS MODULE FILLEDABS MODULE FILLED
-
20017060203 EJOT PT SCREW K60X20 WS=6EJOT PT SCREW K60X20 WS=6
-
360113046000 SUPPORT FOR BRAKE HOSESUPPORT FOR BRAKE HOSE
-
460113146000 SUPPORT FOR BRAKE HOSE M5SUPPORT FOR BRAKE HOSE M5
-
50014050163 HH COLLAR SCREW M 5X16 WS=6HH COLLAR SCREW M 5X16 WS=6
-
60985050003 SELF LOCKING NUT DIN0985-M 5SELF LOCKING NUT DIN0985-M 5
-
762142025000 SUPPORT BRAKE HOSE FRONTSUPPORT BRAKE HOSE FRONT
-
862142040000 SUPPORT ABS-MODULESUPPORT ABS-MODULE
-
962142041000 DAMP. COMPONENT ABS MODULDAMP. COMPONENT ABS MODUL
-
1062513020000 BLEEDER SCREW CPL.BLEEDER SCREW CPL.
-
1162142001000 BREAK HOSE CPL.BREAK HOSE CPL.
-
1262142002000 BRAKE HOSE BRAKECALIPERBRAKE HOSE BRAKECALIPER
-
1362142003000 BRAKE HOSE HAND BREAK CYLINDERBRAKE HOSE HAND BREAK CYLINDER
-
1462142004000 BRAKE HOSE BRAKE CALIPER FRONTBRAKE HOSE BRAKE CALIPER FRONT
-
1662111051000 BRAKE LIGHT SWITCH REARBRAKE LIGHT SWITCH REAR
-
170603100141 COPPER GASKET DIN7603-10X14X1COPPER GASKET DIN7603-10X14X1
-
190025060126 HH COLLAR SCREW M6X12 TX30HH COLLAR SCREW M6X12 TX30
-
2062142020000 SENSORGEAR FRONTSENSORGEAR FRONT
-
2169013076000 SCREW F. BRAKE CALIPERSCREW F. BRAKE CALIPER
-
2262142021044 SENSORGEAR REARSENSORGEAR REAR
-
2460111094000 CLAMP 5/7 MMCLAMP 5/7 MM
-
290024060156 HH COLLAR SCREW M6X15 TX30HH COLLAR SCREW M6X15 TX30
-
3060142025000 ABS-SENSORABS-SENSOR
-
3160142024050 SLEEVE SENSOR HOLDER ABSSLEEVE SENSOR HOLDER ABS
-
320081650121 EJOT PT SCREW K50X12 WN5452EJOT PT SCREW K50X12 WN5452
-
3354813020100 HOLLOW SCREW BLACK M10X1X19HOLLOW SCREW BLACK M10X1X19
