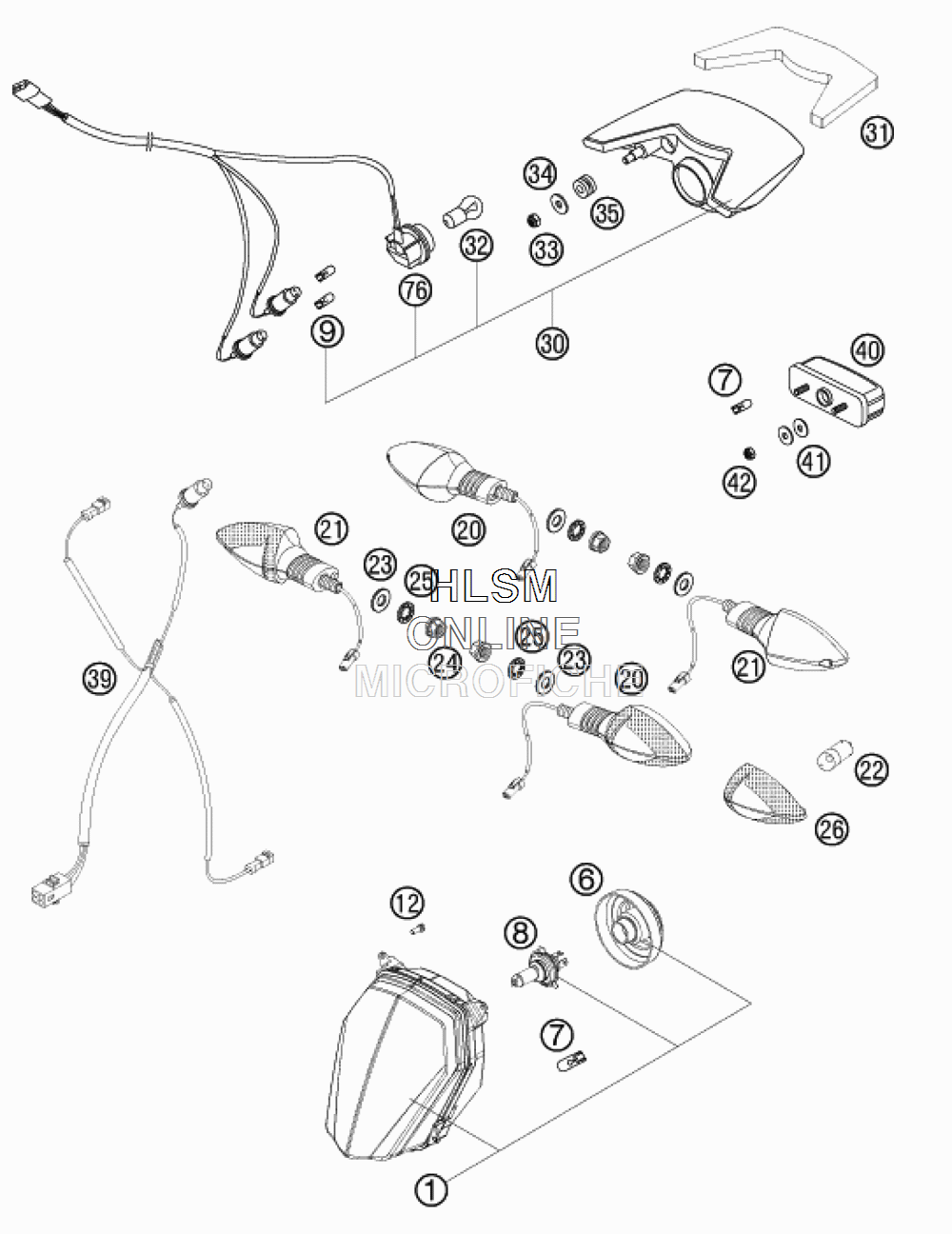

LIGHTNING SYSTEM для Ktm 990 SUPERMOTO - 2013 года выпуска

  • №
    Артикул
    Название
  • 1
    62614001000 HEAD LIGHT RIGHT TR.
    HEAD LIGHT RIGHT TR.
  • 6
    76514001050 RUBBER CAP FOR HEAD LIGHT
    RUBBER CAP FOR HEAD LIGHT
  • 7
    49011435100 BULB 12V 5W (W2,1X9,5D) PHIL.
    BULB 12V 5W (W2,1X9,5D) PHIL.
  • 8
    57111038000 BULB H4 12V 60/55W (P43T)
    BULB H4 12V 60/55W (P43T)
  • 9
    49011435200 BULB RED WR5W 12V
    BULB RED WR5W 12V
  • 12
    0025050126 HH COLLAR SCREW M5X12 TX30
    HH COLLAR SCREW M5X12 TX30
  • 20
    60114025000 FLASHER CPL.FRONT L/S REAR R/S
    FLASHER CPL.FRONT L/S REAR R/S
  • 21
    60114026000 FLASHER CPL.FRONT R/S REAR L/S
    FLASHER CPL.FRONT R/S REAR L/S
  • 22
    60114027000 BULB 12V ORANGE (RY10W)
    BULB 12V ORANGE (RY10W)
  • 23
    0433100003 WASHER 18X10,5X1,6
    WASHER 18X10,5X1,6
  • 24
    58414030000 HH COLLAR NUT M10X1,25 WS=13
    HH COLLAR NUT M10X1,25 WS=13
  • 25
    0797100003 LOCK WASHER DIN6797-J10,5 ZI
    LOCK WASHER DIN6797-J10,5 ZI
  • 26
    60114028000 FLASHER LENS L/S R/S TRANSP.
    FLASHER LENS L/S R/S TRANSP.
  • 30
    58614040044 REAR LIGHT CPL. RED
    REAR LIGHT CPL. RED
  • 31
    62614040050 METAMOLL FOR REARLIGHT
    METAMOLL FOR REARLIGHT
  • 32
    60014048100 BULB RED PR21W 12V
    BULB RED PR21W 12V
  • 33
    0985060003 SELF LOCK. NUT DIN0985-M 6
    SELF LOCK. NUT DIN0985-M 6
  • 34
    0021060003 WASHER DIN9021-A 6,4
    WASHER DIN9021-A 6,4
  • 35
    58214069051 RUBBER GROMMET 16X10,8X3
    RUBBER GROMMET 16X10,8X3
  • 39
    62611076000 WIRING HARNESS REAR
    WIRING HARNESS REAR
  • 40
    58414047000 LICENSE-PLATE ILLUMINATION
    LICENSE-PLATE ILLUMINATION
  • 41
    0021050003 WASHER DIN9021-A 5,3
    WASHER DIN9021-A 5,3
  • 42
    0985050003 SELF LOCKING NUT DIN0985-M 5
    SELF LOCKING NUT DIN0985-M 5
  • 76
    58611176100 CABLE HARNESS REAR PART
    CABLE HARNESS REAR PART
