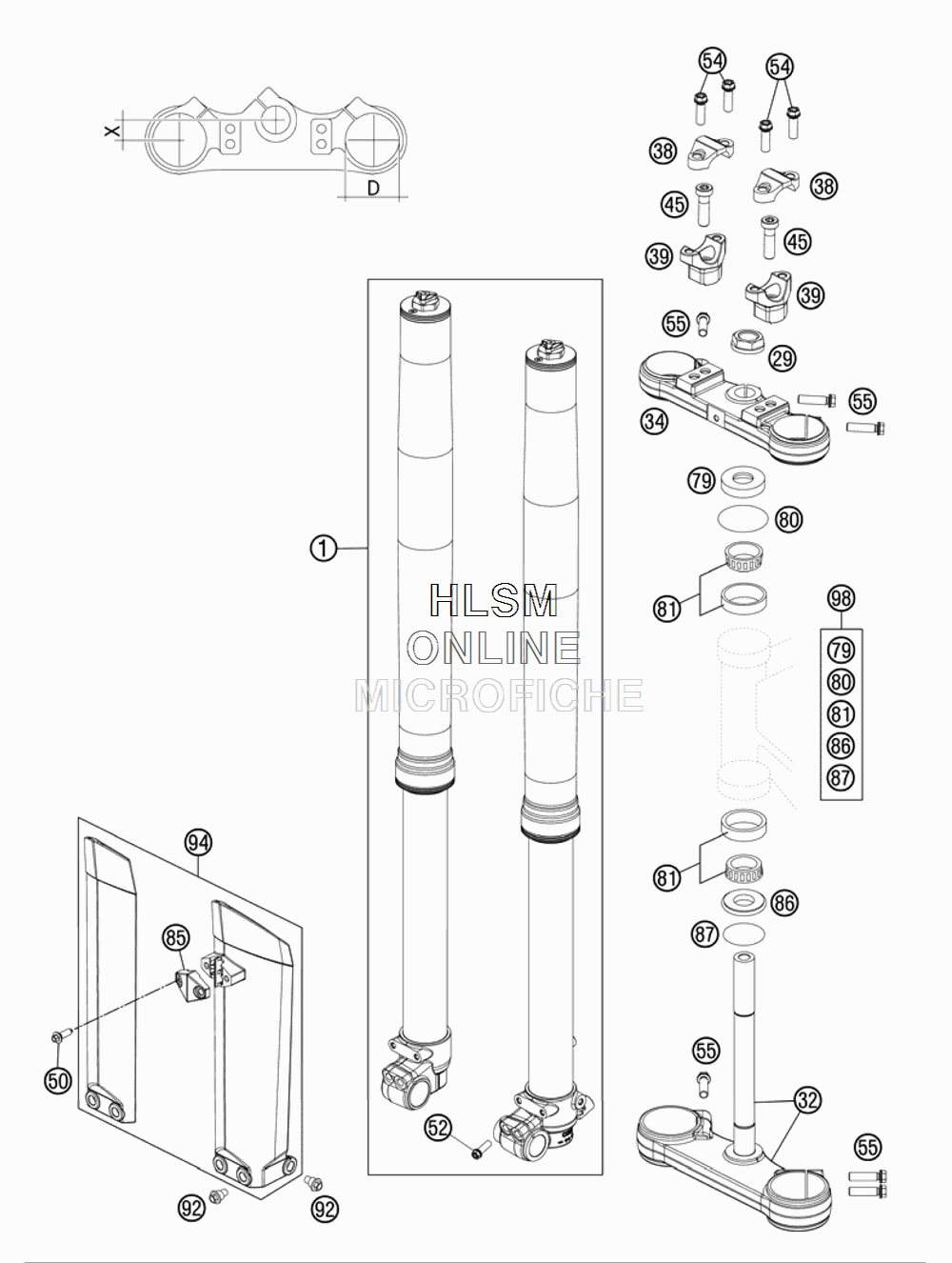

FRONT FORK TRIPLE CLAMP для Ktm 85 SX - 2013 года выпуска`
-
№АртикулНазвание
-
105187M0501 FORK WPFORK WP
-
2959030029000 HH NUT M20X1,5 WS=27 RIGHTHH NUT M20X1,5 WS=27 RIGHT
-
3247001032014 BOT.TRIPLE CLAMP CPL.BOT.TRIPLE CLAMP CPL.
-
3447101034014 TOP FORK PLATE 85 SXTOP FORK PLATE 85 SX
-
3877201038000 HANDLEBAR CLAMP 28MMHANDLEBAR CLAMP 28MM
-
3959401039037 HANDLEB.SUPP. D=28MM H=37MMHANDLEB.SUPP. D=28MM H=37MM
-
450032100356S AH-COLLAR SCREW M10X35 ISA45AH-COLLAR SCREW M10X35 ISA45
-
500017060204 EJOT PT SCREW K60X20 ALU WS=6EJOT PT SCREW K60X20 ALU WS=6
-
520025060206 HH COLLAR SCREW M6X20 TX30HH COLLAR SCREW M6X20 TX30
-
540025080256 HH COLLAR SCREW M8X25 TX40HH COLLAR SCREW M8X25 TX40
-
550025080306 HH COLLAR SCREW M8X30 TX40HH COLLAR SCREW M8X30 TX40
-
7949001086000 COVERING CAPCOVERING CAP
-
800770021300 O-RING 40,94X2,62 NBR70O-RING 40,94X2,62 NBR70
-
8149001081000 TAPERED ROLLER BEARING 32004XTAPERED ROLLER BEARING 32004X
-
857800108500028 CLAMP F. SPEED. CABLE D=6MMCLAMP F. SPEED. CABLE D=6MM
-
8646001086000 PROTECTION RING 20,1X39X5PROTECTION RING 20,1X39X5
-
870770360030 O-RING 36,00X3,00 NBRO-RING 36,00X3,00 NBR
-
9259001092050 SPECIAL SCREW M6X12,5 WS=8SPECIAL SCREW M6X12,5 WS=8
-
944710109400028 FORK PROTECTOR SET 85SX WHITEFORK PROTECTOR SET 85SX WHITE
-
9800050000931 STEARING HEAD REP. KIT MINISTEARING HEAD REP. KIT MINI
