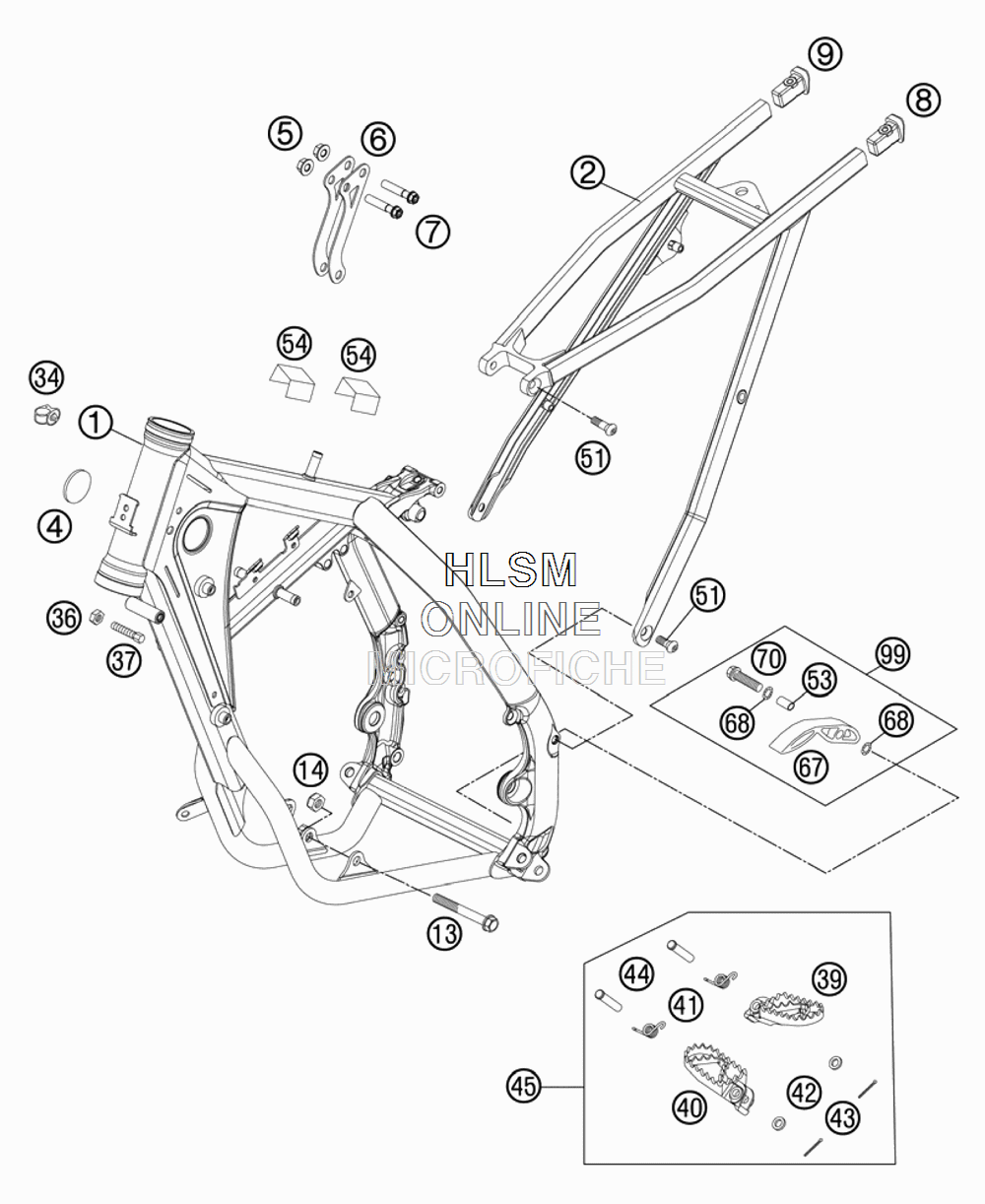

FRAME - SUBFRAME для Ktm 85 SX - 2013 года выпуска`

№

Артикул

Название
1

47103001000BE FRAME "471M3" ANTHR.-MET.

FRAME "471M3" ANTHR.-MET.

340 ₽
2

47103002000 SUB FRAME

SUB FRAME

77 800 ₽
4

54606004000 PLUG 37MM

PLUG 37MM

490 ₽
5

54310086200 SELF LOCKING NUT M8 10.9

SELF LOCKING NUT M8 10.9

500 ₽
6

47103013000 REINFORCING

REINFORCING

1 730 ₽
7

0025080356 HH COLLAR SCREW M8X35 TX40

HH COLLAR SCREW M8X35 TX40

930 ₽
8

78003002010 SUB FRAME APPLICATION LEFT

SUB FRAME APPLICATION LEFT

0 ₽
9

78003002020 SUB FRAME APPLICATION RIGHT

SUB FRAME APPLICATION RIGHT

0 ₽
13

47003013000 ENGINE BRACKET SCREW

ENGINE BRACKET SCREW

1 930 ₽
14

54310086100 SELF LOCKING NUT M10 CU WS=14

SELF LOCKING NUT M10 CU WS=14

410 ₽
34

58111076000 CABLE SUPPORT KHS NR.150-47610

CABLE SUPPORT KHS NR.150-47610

910 ₽
36

0934080003 HEXAGON NUT DIN0934-M 8

HEXAGON NUT DIN0934-M 8

320 ₽
37

59001037000 SPECIAL SCREW M8X26 WS=10

SPECIAL SCREW M8X26 WS=10

560 ₽
39

59003040050 FOOT PED L/S EXC SILVER

FOOT PED L/S EXC SILVER

11 830 ₽
40

59003041050 FOOT PED R/S EXC SILVER

FOOT PED R/S EXC SILVER

11 540 ₽
41

54603041000 FOOTREST SPRING L/S & R/S

FOOTREST SPRING L/S & R/S

1 110 ₽
42

0125100003 WASHER DIN0125-A10,5

WASHER DIN0125-A10,5

290 ₽
43

0094032253 PIN DIN0094-3,2X25 STEEL

PIN DIN0094-3,2X25 STEEL

290 ₽
44

54803044000 BOLT FOR FOOT PED

BOLT FOR FOOT PED

3 330 ₽
45

4700304003390 FOOTPEG L.+R. CPL.

FOOTPEG L.+R. CPL.

29 760 ₽
51

0019080206S FLAT HEAD SCREW M. ISA45 M8X20

FLAT HEAD SCREW M. ISA45 M8X20

440 ₽
53

51103053051 BUSHING 8,2X10X20

BUSHING 8,2X10X20

930 ₽
54

50307012000 ADH. FOIL TRANSP. 80X80 MM

ADH. FOIL TRANSP. 80X80 MM

330 ₽
67

51103053000 CHAIN SLIDING PIECE BELOW

CHAIN SLIDING PIECE BELOW

2 110 ₽
68

36003014000 LOCK WASHER 8MM

LOCK WASHER 8MM

290 ₽
70

0025080306 HH COLLAR SCREW M8X30 TX40

HH COLLAR SCREW M8X30 TX40

700 ₽
99

51103053110 CHAIN SLIDING KIT BELOW MINI

CHAIN SLIDING KIT BELOW MINI

4 500 ₽
