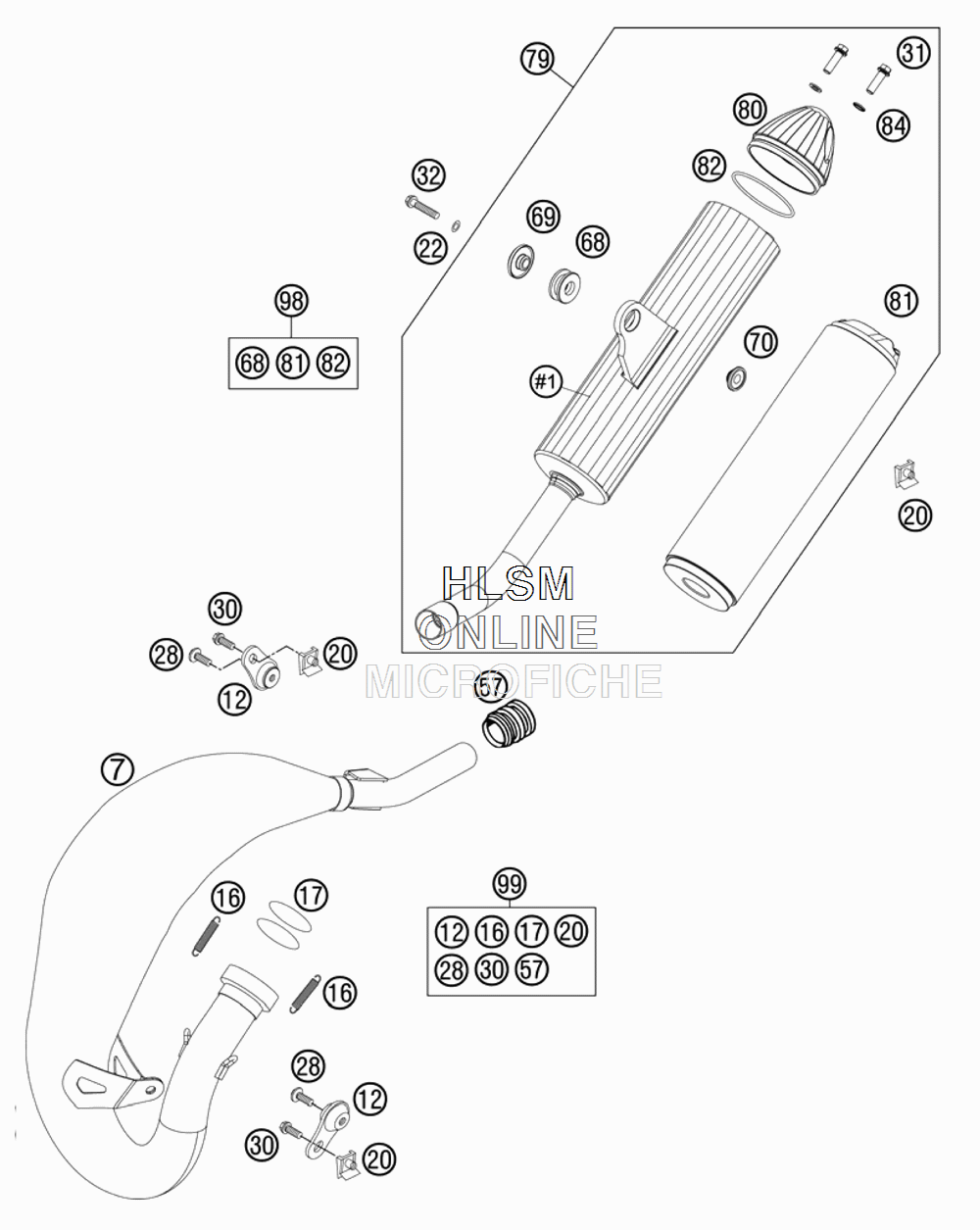

EXHAUST SYSTEM для Ktm 85 SX - 2013 года выпуска

  • №
    Артикул
    Название
  • 7
    47005007100 EXHAUST PIPE
    EXHAUST PIPE
  • 12
    50305012000 SWINGELEMENT FOR EXHAUST PIPE
    SWINGELEMENT FOR EXHAUST PIPE
  • 16
    50305016000 TEN.SPRING L=62MM EY.MOVEABLE
    TEN.SPRING L=62MM EY.MOVEABLE
  • 17
    0770380030 O-RING 38,00X3,00 VITON
    O-RING 38,00X3,00 VITON
  • 20
    54603048100 RANGE CHANGE METAL NUT M6
    RANGE CHANGE METAL NUT M6
  • 22
    0137060003 SPRING WASHER DIN0137-B 6
    SPRING WASHER DIN0137-B 6
  • 28
    0024060106 HH COLLAR SCREW M6X10 TX30
    HH COLLAR SCREW M6X10 TX30
  • 30
    0025060166 HH COLLAR SCREW M6X16 TX30
    HH COLLAR SCREW M6X16 TX30
  • 31
    0025060206 HH COLLAR SCREW M6X20 TX30
    HH COLLAR SCREW M6X20 TX30
  • 32
    0025060306 HH COLLAR SCREW M6X30 TX30
    HH COLLAR SCREW M6X30 TX30
  • 57
    54605057000 RUBBER SLEEVE D=21MM/23MM
    RUBBER SLEEVE D=21MM/23MM
  • 68
    54605068000 EXHAUST BRACKET RUBBER BLACK
    EXHAUST BRACKET RUBBER BLACK
  • 69
    46205169000 BUSHING 7.5X12X28X7.6
    BUSHING 7.5X12X28X7.6
  • 70
    77205069000 BUSHING 7.5X12X20X8.2
    BUSHING 7.5X12X20X8.2
  • 79
    47005079100 SILENCER
    SILENCER
  • 80
    50305079169 SILENCER ENDCAP SX REAR
    SILENCER ENDCAP SX REAR
  • 81
    50305079160 STUFFING YARN 160 GRAM
    STUFFING YARN 160 GRAM
  • 82
    0770055020 0-RING 55,00X2,00 NBR70
    0-RING 55,00X2,00 NBR70
  • 84
    50233041000 PAIR OF WASHERS M 6 NORDLOCK
    PAIR OF WASHERS M 6 NORDLOCK
  • 98
    00050000804 SILENCER REP. KIT 160 GRAM
    SILENCER REP. KIT 160 GRAM
  • 99
    00050000812 EXHAUST HARDWARE KIT
    EXHAUST HARDWARE KIT
