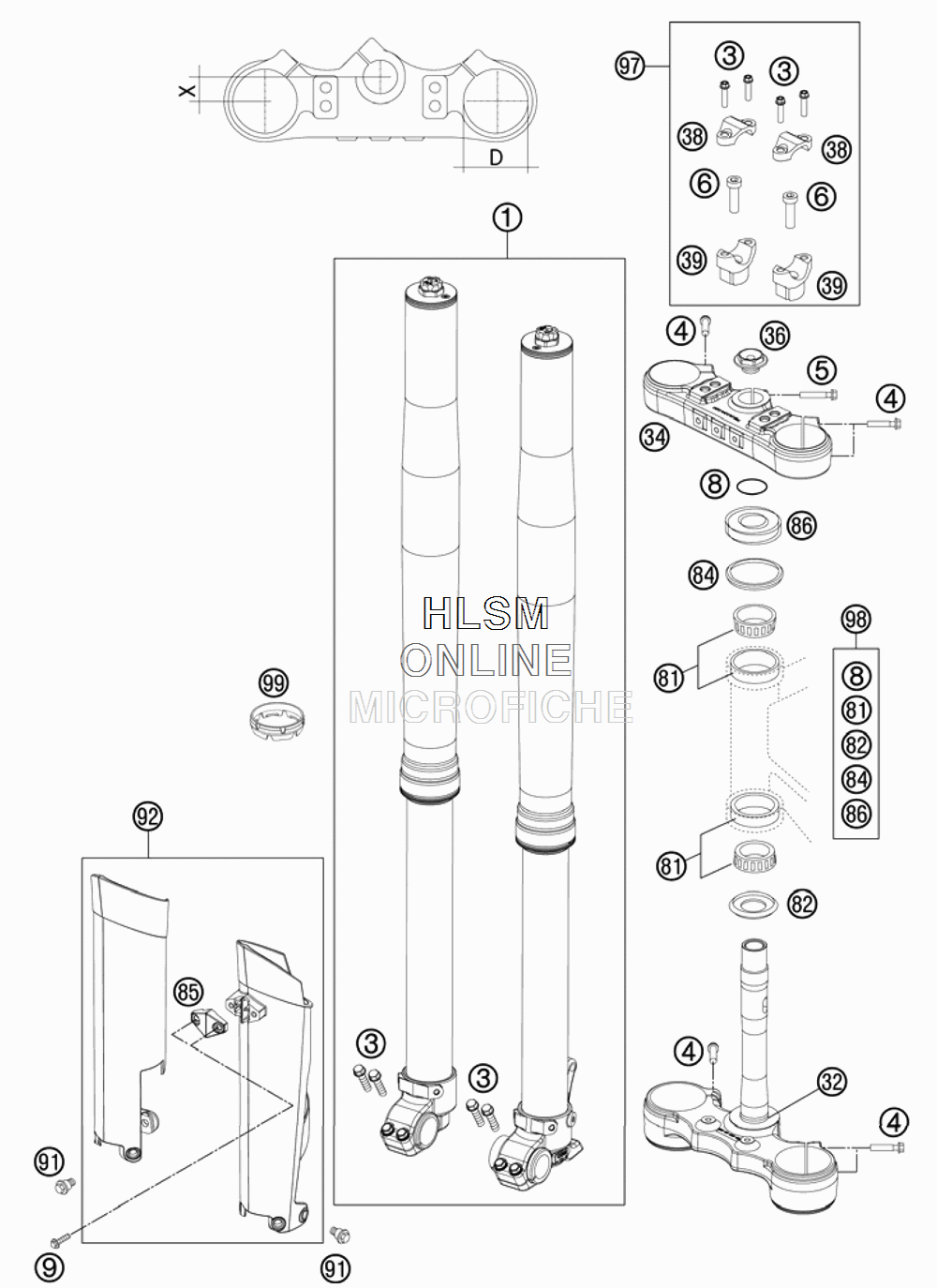

FRONT FORK TRIPLE CLAMP для Ktm 500 XC-W - 2013 года выпуска`
-
№АртикулНазвание
-
114187L6901 FORK WPFORK WP
-
30025080256 HH COLLAR SCREW M8X25 TX40HH COLLAR SCREW M8X25 TX40
-
40025080306 HH COLLAR SCREW M8X30 TX40HH COLLAR SCREW M8X30 TX40
-
50025080356 HH COLLAR SCREW M8X35 TX40HH COLLAR SCREW M8X35 TX40
-
60032100356S AH-COLLAR SCREW M10X35 ISA45AH-COLLAR SCREW M10X35 ISA45
-
80770025035 O-RING 25X3,55 NBR70O-RING 25X3,55 NBR70
-
90017060204 EJOT PT SCREW K60X20 ALU WS=6EJOT PT SCREW K60X20 ALU WS=6
-
3278101032020 BOTTTOM FORK PLATE CPL. X=20MMBOTTTOM FORK PLATE CPL. X=20MM
-
3478101034020 TOP TRIPLE CLAMP X=20MMTOP TRIPLE CLAMP X=20MM
-
3654801036000 STEER.HEAD SCREW M20X1,5 WS=27STEER.HEAD SCREW M20X1,5 WS=27
-
3877201038000 HANDLEBAR CLAMP 28MMHANDLEBAR CLAMP 28MM
-
3959401039032 HANDLEB.SUPP. D=28MM H=32MMHANDLEB.SUPP. D=28MM H=32MM
-
3959401039037 HANDLEB.SUPP. D=28MM H=37MMHANDLEB.SUPP. D=28MM H=37MM
-
3959401039042 HANDLEB.SUPP. D=28MM H=42MMHANDLEB.SUPP. D=28MM H=42MM
-
8154201081100 TAPERED ROLLER BEARING CPL.TAPERED ROLLER BEARING CPL.
-
8254601084100 O-RING SUPPORT W. SEALING LIPO-RING SUPPORT W. SEALING LIP
-
8454601184000 STEARING HEAD GASKET TOPSTEARING HEAD GASKET TOP
-
857800108500028 CLAMP F. SPEED. CABLE D=6MMCLAMP F. SPEED. CABLE D=6MM
-
8678101086000 STEERING HEAD COVERSTEERING HEAD COVER
-
9159001092050 SPECIAL SCREW M6X12,5 WS=8SPECIAL SCREW M6X12,5 WS=8
-
927800109410028 FORK PROTECT. L/S+R/S WHITEFORK PROTECT. L/S+R/S WHITE
-
9700050000921 HANDLEBAR SUPPORT KIT D28/H37HANDLEBAR SUPPORT KIT D28/H37
-
9800050000930 STEARING HEAD REP. KITSTEARING HEAD REP. KIT
-
9948600698 FORK PROTECTION RINGFORK PROTECTION RING
