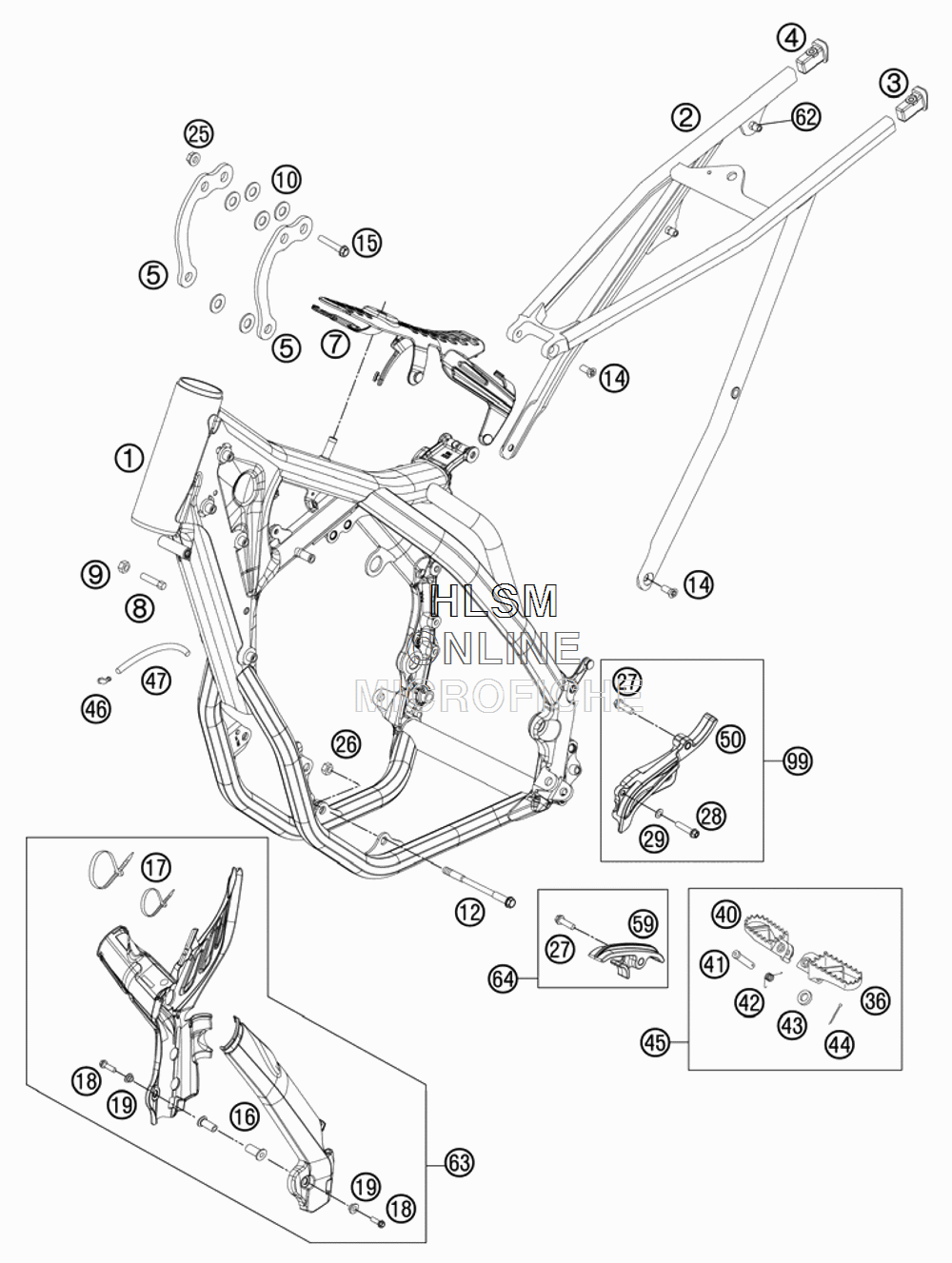

FRAME для Ktm 500 XC-W - 2013 года выпуска

  • №
    Артикул
    Название
  • 1
    7810300100033 FRAME BLACK M. "781L2"
    FRAME BLACK M. "781L2"
  • 2
    77203002000 SUB FRAME
    SUB FRAME
  • 3
    78003002010 SUB FRAME APPLICATION LEFT
    SUB FRAME APPLICATION LEFT
  • 4
    78003002020 SUB FRAME APPLICATION RIGHT
    SUB FRAME APPLICATION RIGHT
  • 5
    78703013000 REINFORCING B.
    REINFORCING B.
  • 7
    77207012000 TANK REST RUBBER
    TANK REST RUBBER
  • 8
    59001037000 SPECIAL SCREW M8X26 WS=10
    SPECIAL SCREW M8X26 WS=10
  • 9
    0934080003 HEXAGON NUT DIN0934-M 8
    HEXAGON NUT DIN0934-M 8
  • 10
    77003013050 WASHER 8,5X18X1 INOX
    WASHER 8,5X18X1 INOX
  • 12
    59003013000 ENGINEBRAC.SCREW M10X123 WS=13
    ENGINEBRAC.SCREW M10X123 WS=13
  • 14
    0019080206S FLAT HEAD SCREW M. ISA45 M8X20
    FLAT HEAD SCREW M. ISA45 M8X20
  • 15
    56530079000 HH COLLAR SCREW M 8X44 WS13
    HH COLLAR SCREW M 8X44 WS13
  • 16
    54803092050 BLIND PLUG-IN NUT M5 WN 22A
    BLIND PLUG-IN NUT M5 WN 22A
  • 17
    44011076140 CABLE TIE 140/2,5MM BLACK
    CABLE TIE 140/2,5MM BLACK
  • 17
    44011076305 CABLE TIE 300/4,8MM BLACK
    CABLE TIE 300/4,8MM BLACK
  • 18
    0738050250 COU.SUNK SCR. AH ISO7380 M5X25
    COU.SUNK SCR. AH ISO7380 M5X25
  • 19
    54803092060 BUSH F. FRAME PROTECTION
    BUSH F. FRAME PROTECTION
  • 20
    54403135000 PLASTIC CAP SFL10
    PLASTIC CAP SFL10
  • 25
    54310086200 SELF LOCKING NUT M8 10.9
    SELF LOCKING NUT M8 10.9
  • 26
    54310086100 SELF LOCKING NUT M10 CU WS=14
    SELF LOCKING NUT M10 CU WS=14
  • 27
    0025080306 HH COLLAR SCREW M8X30 TX40
    HH COLLAR SCREW M8X30 TX40
  • 28
    0025060356 HH COLLAR SCREW M6X35 TX30
    HH COLLAR SCREW M6X35 TX30
  • 29
    0125060003 WASHER DIN0125-A 6,4
    WASHER DIN0125-A 6,4
  • 36
    78003040050 FOOTREST L/S
    FOOTREST L/S
  • 40
    78003041050 FOOTREST R/S
    FOOTREST R/S
  • 41
    54803044000 BOLT FOR FOOT PED
    BOLT FOR FOOT PED
  • 42
    54603041000 FOOTREST SPRING L/S & R/S
    FOOTREST SPRING L/S & R/S
  • 43
    0125100003 WASHER DIN0125-A10,5
    WASHER DIN0125-A10,5
  • 44
    0094032253 PIN DIN0094-3,2X25 STEEL
    PIN DIN0094-3,2X25 STEEL
  • 45
    78003040033 FOOTREST L/S + R/S CPL.
    FOOTREST L/S + R/S CPL.
  • 46
    50303089000 ANGLE PIECE
    ANGLE PIECE
  • 47
    55007016001 PVC-HOSE 7X10 PER METER
    PVC-HOSE 7X10 PER METER
  • 50
    78103096000 CHAIN GUARD
    CHAIN GUARD
  • 59
    77303053000 CHAIN SLIDING PIECE BELOW
    CHAIN SLIDING PIECE BELOW
  • 62
    77303139000 BLIND ND RIVET NUT EM6-6 0LF/HX
    BLIND ND RIVET NUT EM6-6 0LF/HX
  • 63
    77303094100 PLASTIC FRAME PROTECTION SET
    PLASTIC FRAME PROTECTION SET
  • 64
    77303053010 CHAIN SLIDING KIT BELOW CPL
    CHAIN SLIDING KIT BELOW CPL
  • 99
    78103096010 SPROCKET COVER KIT
    SPROCKET COVER KIT
