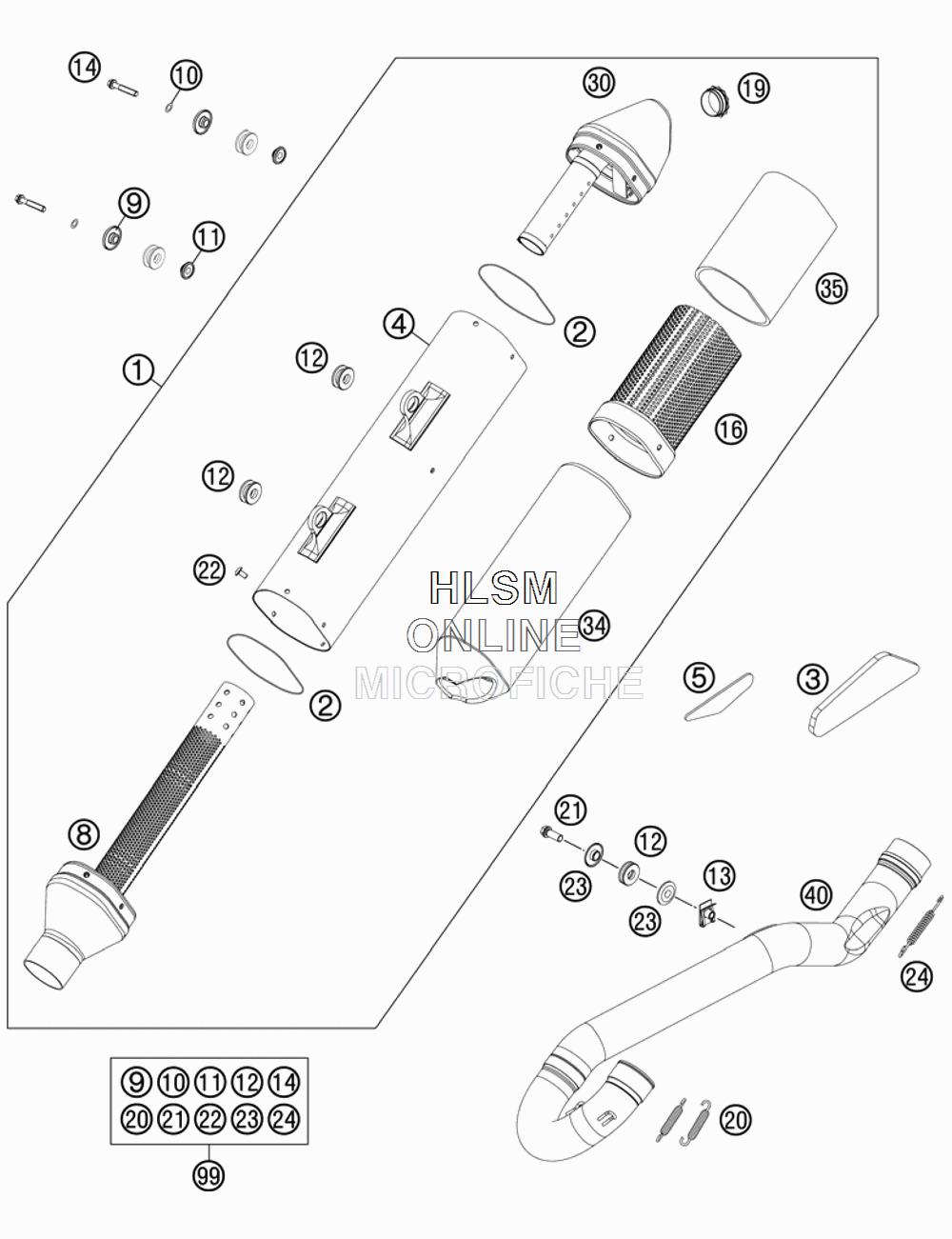

EXHAUST SYSTEM для Ktm 500 XC-W - 2013 года выпуска

  • №
    Артикул
    Название
  • 1
    78105082000 SILENCER
    SILENCER
  • 2
    0770740015 O-RING 74,00X1,50 FKM 75SH
    O-RING 74,00X1,50 FKM 75SH
  • 3
    77208013050 THERMAL PROTECTION FOIL
    THERMAL PROTECTION FOIL
  • 4
    78105082080 SILENCER HOUSING
    SILENCER HOUSING
  • 5
    77308013050 THERMAL PROTECTION FOIL
    THERMAL PROTECTION FOIL
  • 8
    78105081050 CONNECTING CAP
    CONNECTING CAP
  • 9
    77205169000 BUSHING 7.5X12X28X8.3
    BUSHING 7.5X12X28X8.3
  • 10
    0137060003 SPRING WASHER DIN0137-B 6
    SPRING WASHER DIN0137-B 6
  • 11
    77205069000 BUSHING 7.5X12X20X8.2
    BUSHING 7.5X12X20X8.2
  • 12
    77205068000 DAMP. COMPON. BLACK
    DAMP. COMPON. BLACK
  • 13
    54603048000 RANGE CHANGE METAL NUT M8
    RANGE CHANGE METAL NUT M8
  • 14
    0025060306 HH COLLAR SCREW M6X30 TX30
    HH COLLAR SCREW M6X30 TX30
  • 16
    78105081040 INSERT SILENCER
    INSERT SILENCER
  • 19
    77005081055 SIL. ELEMENT EXC-F
    SIL. ELEMENT EXC-F
  • 20
    50305016000 TEN.SPRING L=62MM EY.MOVEABLE
    TEN.SPRING L=62MM EY.MOVEABLE
  • 21
    0025080256 HH COLLAR SCREW M8X25 TX40
    HH COLLAR SCREW M8X25 TX40
  • 22
    78105081010 SCREW TORX M5X10
    SCREW TORX M5X10
  • 23
    59405069000 BUSHING FOR EXHAUST SUPPORT
    BUSHING FOR EXHAUST SUPPORT
  • 24
    50305116000 TEN.SPRING L=75MM EY.MOVEABLE
    TEN.SPRING L=75MM EY.MOVEABLE
  • 30
    78105082060 SILENCER CAP
    SILENCER CAP
  • 34
    78105078430 STUFFING YARN 430G
    STUFFING YARN 430G
  • 35
    78105078070 STUFFING YARN REAR
    STUFFING YARN REAR
  • 40
    78705007000 EXH. PIPE EXC WITHOUT LAMBDA
    EXH. PIPE EXC WITHOUT LAMBDA
  • 99
    00050000815 EXHAUST PARTS KIT
    EXHAUST PARTS KIT
