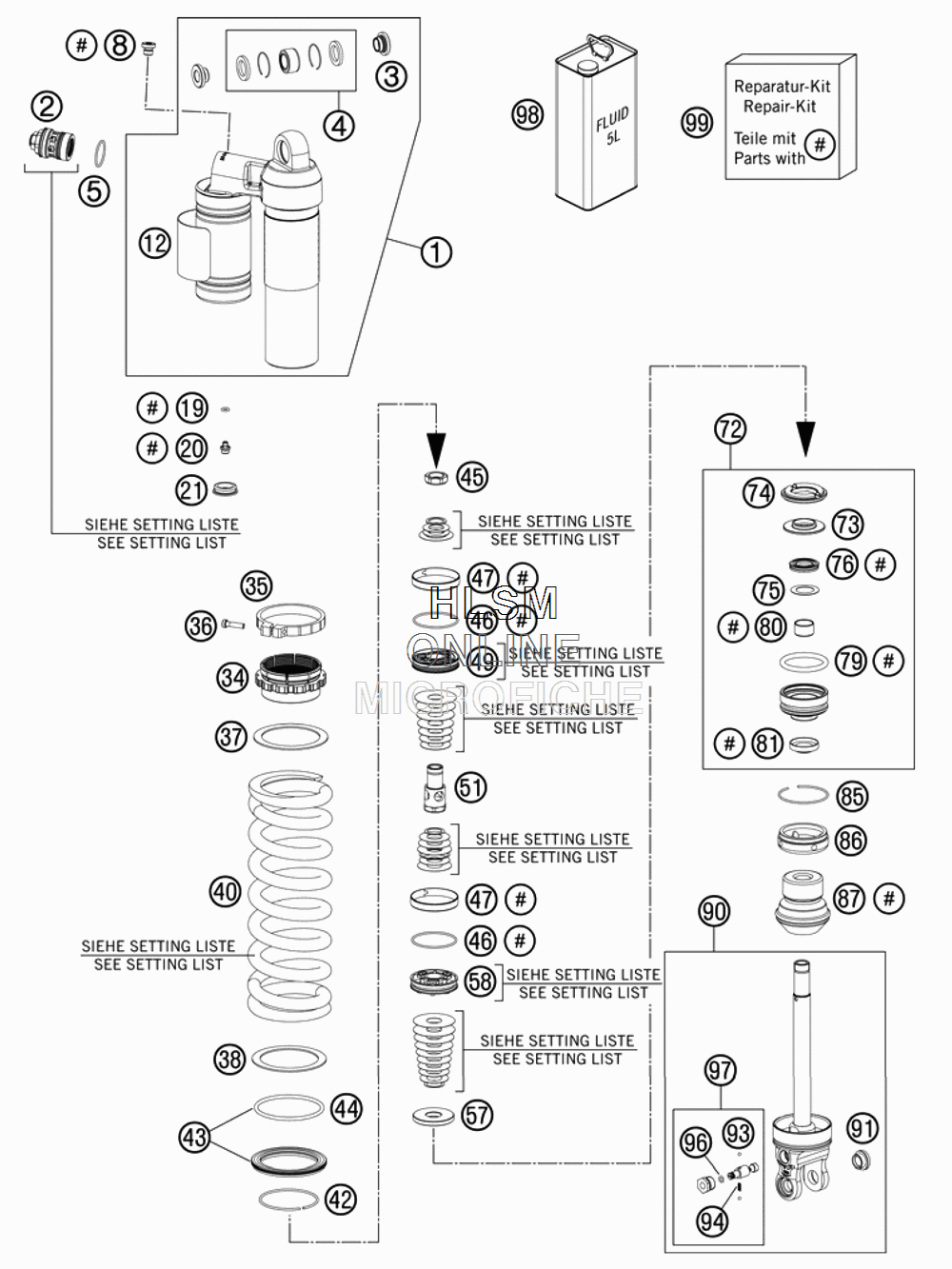

SHOCK ABSORBER DISASSEMBLED для Ktm 450 XC-W - 2013 года выпуска`
-
№АртикулНазвание
-
150180833SA2 MONOSHOCK UPPER PART CPL.MONOSHOCK UPPER PART CPL.
-
250180213S10 DCC-COMPR.DAMP.CONTROL CPL.DCC-COMPR.DAMP.CONTROL CPL.
-
346180007 ADAPTOR BUSH KGW 12X24ADAPTOR BUSH KGW 12X24
-
4R12012 REP. KIT BEAR./SEAL UP.REP. KIT BEAR./SEAL UP.
-
550180217 O-RING 27X1,5 VITONO-RING 27X1,5 VITON
-
850180095 BLEED PLUG R 1/8BLEED PLUG R 1/8
-
1252000085 WP CAUTION (PDS KTM)WP CAUTION (PDS KTM)
-
1946810893 O-RING NBR 5,28X1,78O-RING NBR 5,28X1,78
-
2036120151 SCREW PLUG M5X6SCREW PLUG M5X6
-
2146811208 RUBBER CAP "DO NOT OPEN"RUBBER CAP "DO NOT OPEN"
-
3450180938 ADJUSTING NUT PLASTICADJUSTING NUT PLASTIC
-
3550180937 TENSIONING RING D64 H10TENSIONING RING D64 H10
-
3614460042 ALLENHEAD SCREW M5 L=20 STAINLALLENHEAD SCREW M5 L=20 STAINL
-
3750180965 SPACER RING SPRING 61,3X78X3SPACER RING SPRING 61,3X78X3
-
3850180114 SPACER RING FOR SPRINGSPACER RING FOR SPRING
-
4091210053S SPRING 250 63N/MM ORANGESPRING 250 63N/MM ORANGE
-
4091210054S SPRING 250 66N/MM ORANGESPRING 250 66N/MM ORANGE
-
4091210068S SPRING 250 69N/MM ORANGESPRING 250 69N/MM ORANGE
-
4091210069S SPRING 250 72N/MM ORANGESPRING 250 72N/MM ORANGE
-
4091210070S SPRING 250 76N/MMSPRING 250 76N/MM
-
4250180273 CIRCLIP 58,2X2CIRCLIP 58,2X2
-
4350180463S SPRING RET. D=80 W. O-RINGSPRING RET. D=80 W. O-RING
-
4450180352 O-RING VITON 66,27X3,53O-RING VITON 66,27X3,53
-
4550180627 PISTON ROD NUT M20X1PISTON ROD NUT M20X1
-
4650180099 O-RING VITON 44,17X1,78O-RING VITON 44,17X1,78
-
4750180135 PISTON RING 50-8PISTON RING 50-8
-
4950180675 PISTON D=20PISTON D=20
-
5150180973 SUPPORT D20 M20X1 L51,3 PDSSUPPORT D20 M20X1 L51,3 PDS
-
5750180970 REBOUND DISC D43REBOUND DISC D43
-
5850180197 PISTON 6+6X7/4,5PISTON 6+6X7/4,5
-
7250180603S ADAPTOR CPL. D=50 H=28ADAPTOR CPL. D=50 H=28
-
7350180113 STEEL DISC 18X,5X43,7X6STEEL DISC 18X,5X43,7X6
-
7450180107 REBOUND RUBBERREBOUND RUBBER
-
7550180604 SHIM D29,75 X D19 X T0,4SHIM D29,75 X D19 X T0,4
-
7650180605S SEAL D18X30X5SEAL D18X30X5
-
7950180103 O-RING 41X5O-RING 41X5
-
8046180119 DU-BUSH 18X20X12DU-BUSH 18X20X12
-
8150180606 DUST SEAL 1828DUST SEAL 1828
-
8550180126 CIRCLIP 53X1,75CIRCLIP 53X1,75
-
8650180626 RESERVOIR CAP D=50 H=10RESERVOIR CAP D=50 H=10
-
8750180600 BUMP RUBBER D58 D17 H59BUMP RUBBER D58 D17 H59
-
9050180512SA4 SHOCK ABS. LOWER PART CPL.SHOCK ABS. LOWER PART CPL.
-
9150180105 THREADED BUSH M12 PDSTHREADED BUSH M12 PDS
-
9340540603 STEEL BALL D=3MMSTEEL BALL D=3MM
-
9448600028 SPRING D=2,9 L=7,9SPRING D=2,9 L=7,9
-
9650180222 O-RING NBR 4X1,5O-RING NBR 4X1,5
-
9750180434S ADJUSTING SCREW REBOUND TRAVELADJUSTING SCREW REBOUND TRAVEL
-
9850180751S1 SHOCK ABSORBER FLUID 5 LTSHOCK ABSORBER FLUID 5 LT
-
99R12015 REPAIR KIT 5018 PDSREPAIR KIT 5018 PDS
