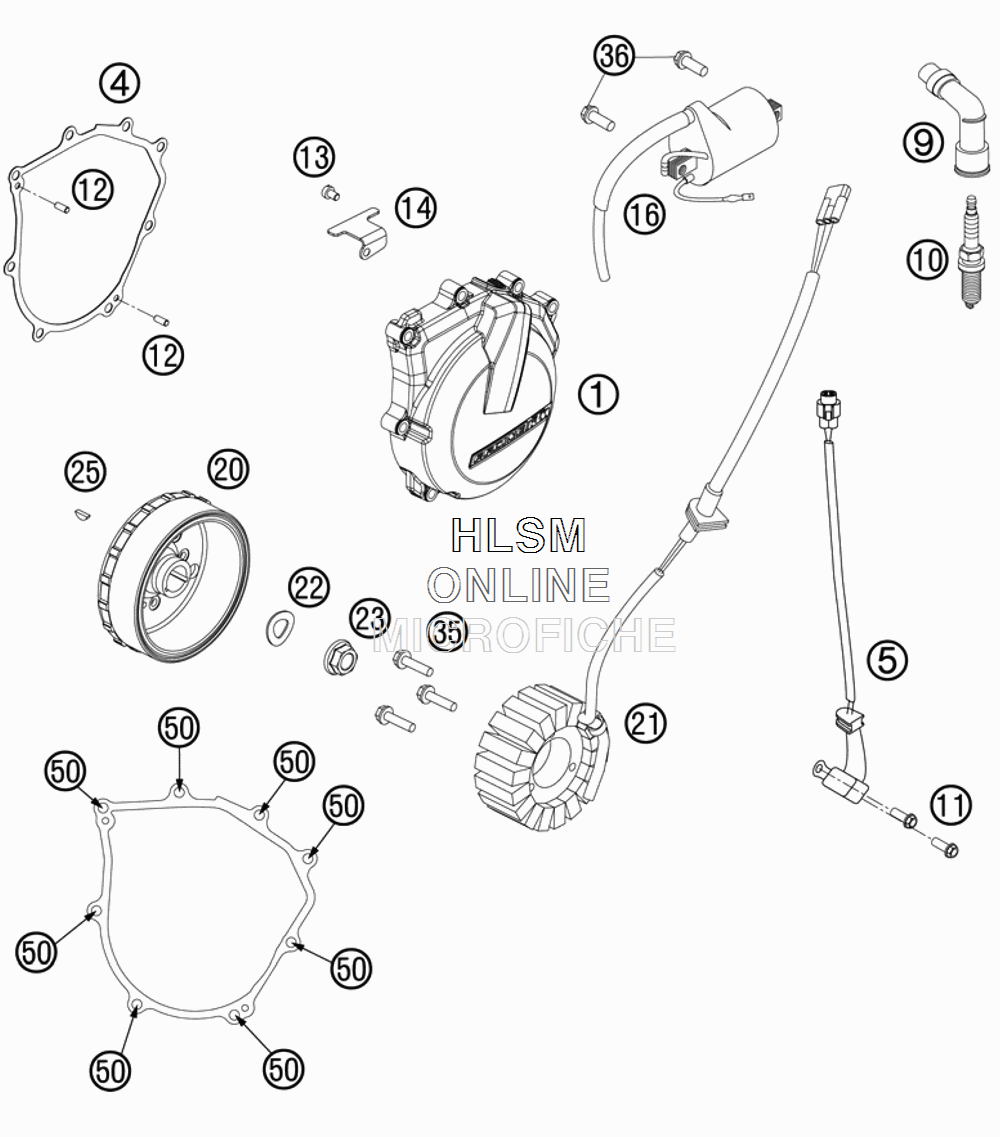

IGNITION SYSTEM для Ktm 450 XC-W - 2013 года выпуска

  • №
    Артикул
    Название
  • 1
    7813000220015 IGNITION COVER
    IGNITION COVER
  • 4
    78130040000 GASKET - IGNITION COVER
    GASKET - IGNITION COVER
  • 5
    59039034000 PULSER COIL KOKUSAN 4K3-A/B
    PULSER COIL KOKUSAN 4K3-A/B
  • 9
    77139090000 SPARK PLUG CONNECTOR
    SPARK PLUG CONNECTOR
  • 10
    75039093000 SPARK PLUG M12X1,25 LKAR8AI-9
    SPARK PLUG M12X1,25 LKAR8AI-9
  • 11
    0025050166 HH COLLAR SCREW M5X16 TX30
    HH COLLAR SCREW M5X16 TX30
  • 12
    0402040980 NEEDLE ROL.DIN5402 NRB 4X9,8
    NEEDLE ROL.DIN5402 NRB 4X9,8
  • 13
    0019040106S FLAT HEAD SCREW ISA25 M4X10
    FLAT HEAD SCREW ISA25 M4X10
  • 14
    81230002010 RETAINING PLATE
    RETAINING PLATE
  • 16
    58439006000 IGNITIONCOIL IG3826 KOKUSAN
    IGNITIONCOIL IG3826 KOKUSAN
  • 20
    78039205000 ROTOR EXC
    ROTOR EXC
  • 21
    83039004000 STATOR
    STATOR
  • 22
    0137120000 SPRING WASHER DIN0137-B12
    SPRING WASHER DIN0137-B12
  • 23
    49030021000 COLLAR NUT M12X1 R/S
    COLLAR NUT M12X1 R/S
  • 25
    0888030050 WOODRUFF KEY DIN6888-3X5X13
    WOODRUFF KEY DIN6888-3X5X13
  • 35
    0025050306 HH COLLAR SCREW M5X30 TX30
    HH COLLAR SCREW M5X30 TX30
  • 36
    0026060186 COLLAR SCREW M6X18 ISA30
    COLLAR SCREW M6X18 ISA30
  • 50
    0025060256 HH COLLAR SCREW M6X25 TX30
    HH COLLAR SCREW M6X25 TX30
