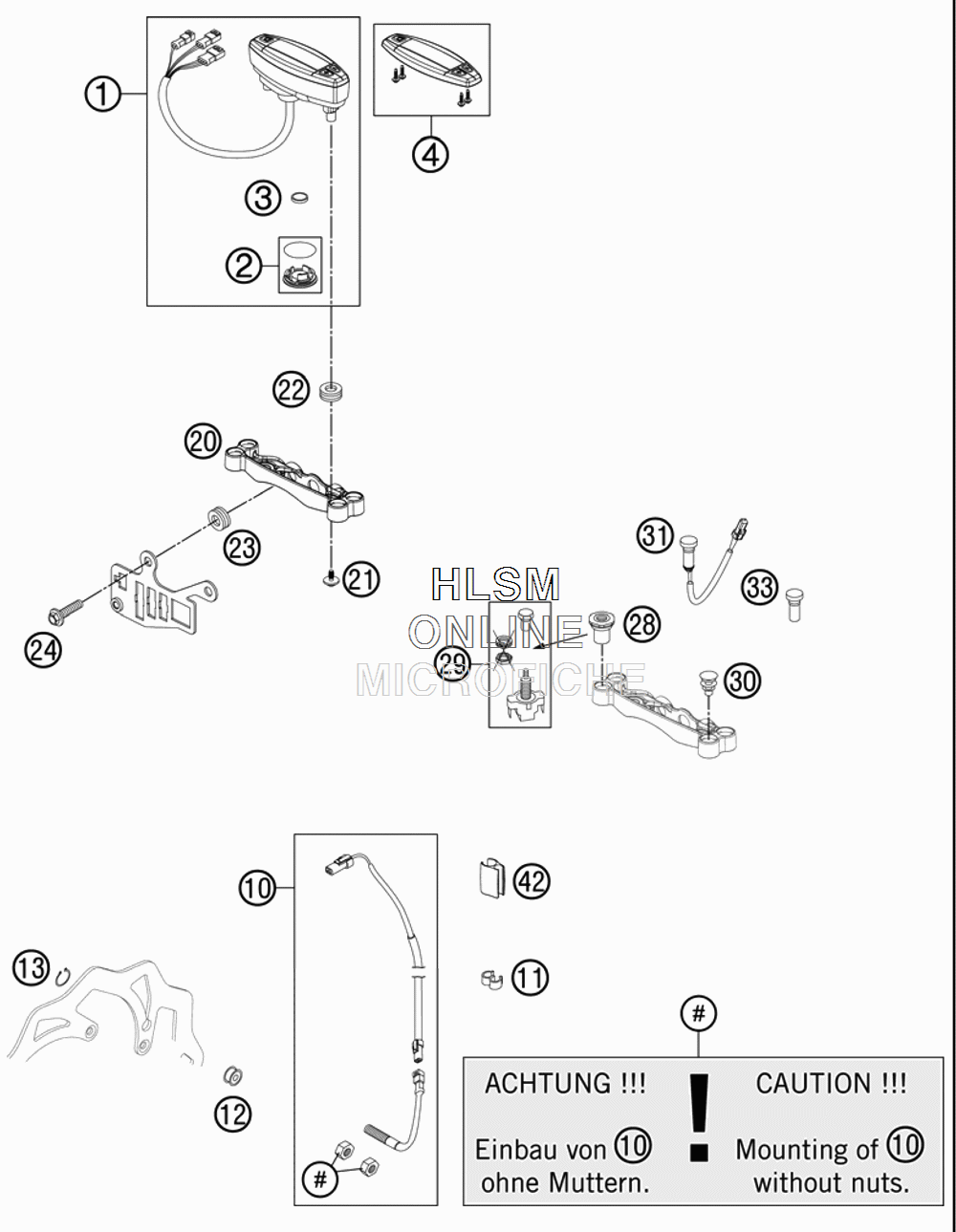

INSTRUMENTS / LOCK SYSTEM для Ktm 450 XC-W - 2013 года выпуска

  • №
    Артикул
    Название
  • 1
    54814069000 SPEEDOMETER KM/H F. 21" KM/H - MPH
    SPEEDOMETER KM/H F. 21" KM/H - MPH
  • 2
    54814069010 BATTERY COVER F. SPEEDOM.
    BATTERY COVER F. SPEEDOM.
  • 3
    58314068000 BATTERY F. SPEEDOM. M.A.E.
    BATTERY F. SPEEDOM. M.A.E.
  • 4
    54814069020 SPEEDOMETER TOP PART
    SPEEDOMETER TOP PART
  • 10
    54814068100 CABLE FOR DIGITAL SPEEDOM.
    CABLE FOR DIGITAL SPEEDOM.
  • 11
    60111094000 CLAMP 5/7 MM
    CLAMP 5/7 MM
  • 12
    54814069050 MAGNET FOR DIGITAL SPEEDOM.
    MAGNET FOR DIGITAL SPEEDOM.
  • 13
    0471009104 CIRCLIP DIN0471- 9X1 INOX
    CIRCLIP DIN0471- 9X1 INOX
  • 20
    81214060000 SPEEDOMETER BRACKET
    SPEEDOMETER BRACKET
  • 21
    0081645121 EJOT DELTA PT SCREW 45X12-Z
    EJOT DELTA PT SCREW 45X12-Z
  • 22
    58214069051 RUBBER GROMMET 16X10,8X3
    RUBBER GROMMET 16X10,8X3
  • 23
    31008060000 RUBBER SLEEVE D=8MM OPEN
    RUBBER SLEEVE D=8MM OPEN
  • 24
    0024060256 HH COLLAR SCREW M6X25 TX30
    HH COLLAR SCREW M6X25 TX30
  • 25
    58314060050 SPACER BUSH. F. SPEEDOMET.BRA.
    SPACER BUSH. F. SPEEDOMET.BRA.
  • 28
    54814060050 SPEC. NUT F. PULL SWITCH WS=17
    SPEC. NUT F. PULL SWITCH WS=17
  • 29
    55011599000 PULL SWITCH LOOSE
    PULL SWITCH LOOSE
  • 30
    50210086000 COVERING CAP SFL16
    COVERING CAP SFL16
  • 31
    81214083000 INDICATOR LIGHT LED YELLOW FI
    INDICATOR LIGHT LED YELLOW FI
  • 33
    81214086000 INDICATOR LIGHT RESERVE
    INDICATOR LIGHT RESERVE
  • 42
    54813026000 CABLE SUPPORT 10/6MM
    CABLE SUPPORT 10/6MM
