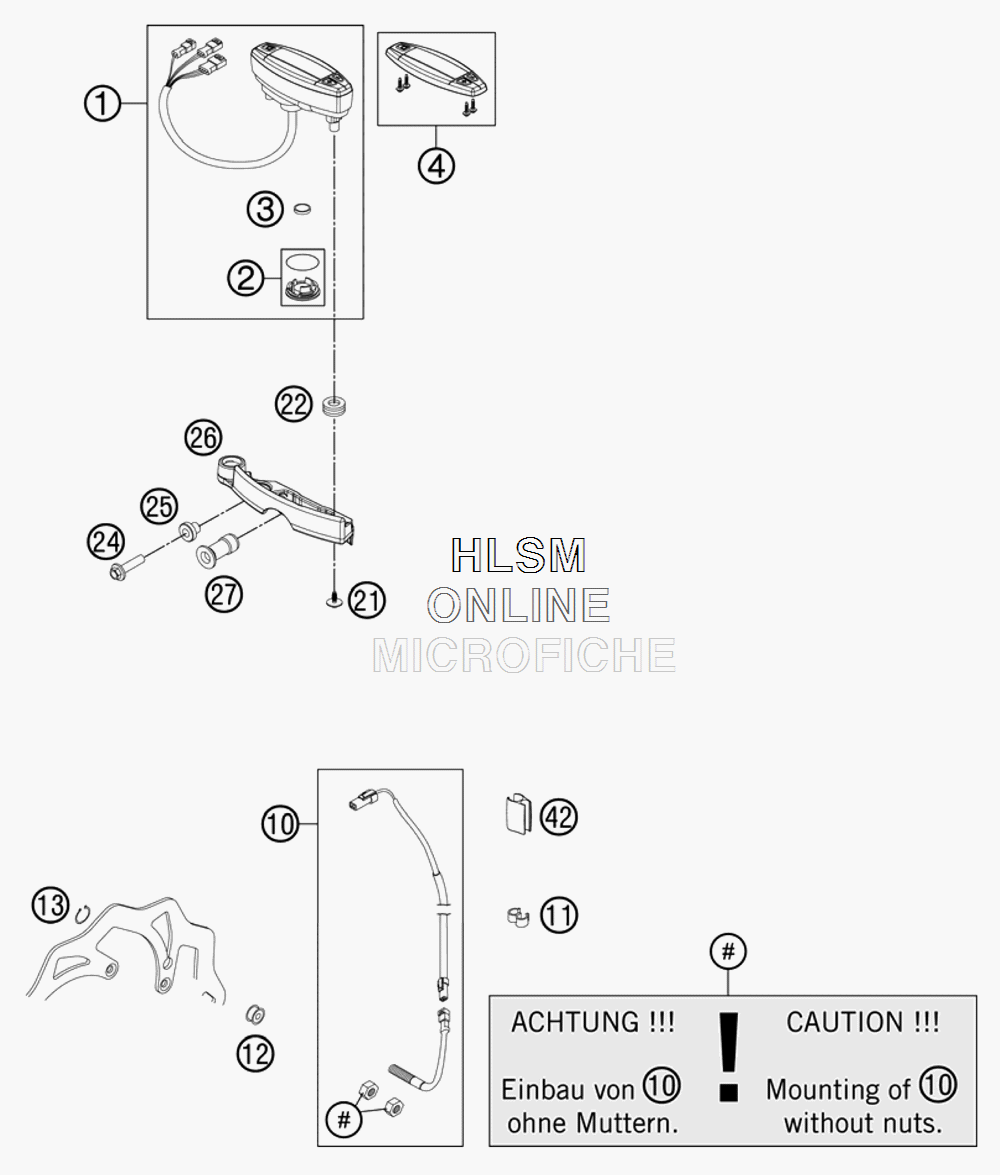

INSTRUMENTS / LOCK SYSTEM для Ktm 250 XC-W - 2013 года выпуска

  • №
    Артикул
    Название
  • 1
    54814069100 SPEEDOMETER MPH F. 21" MPH - KM/H
    SPEEDOMETER MPH F. 21" MPH - KM/H
  • 2
    54814069010 BATTERY COVER F. SPEEDOM.
    BATTERY COVER F. SPEEDOM.
  • 3
    58314068000 BATTERY F. SPEEDOM. M.A.E.
    BATTERY F. SPEEDOM. M.A.E.
  • 4
    54814069020 SPEEDOMETER TOP PART
    SPEEDOMETER TOP PART
  • 10
    54814068100 CABLE FOR DIGITAL SPEEDOM.
    CABLE FOR DIGITAL SPEEDOM.
  • 11
    55011022100 CLAMP D=6/8MM, BLACK
    CLAMP D=6/8MM, BLACK
  • 12
    54814069050 MAGNET FOR DIGITAL SPEEDOM.
    MAGNET FOR DIGITAL SPEEDOM.
  • 13
    0471009104 CIRCLIP DIN0471- 9X1 INOX
    CIRCLIP DIN0471- 9X1 INOX
  • 21*
    0081645121 EJOT DELTA PT SCREW 45X12-Z
    EJOT DELTA PT SCREW 45X12-Z
  • 22
    58214069051 RUBBER GROMMET 16X10,8X3
    RUBBER GROMMET 16X10,8X3
  • 24
    0024060206 HH COLLAR SCREW M6X20 TX30
    HH COLLAR SCREW M6X20 TX30
  • 25
    59030060050 BUSHING F. SPROCKET COVER RAC.
    BUSHING F. SPROCKET COVER RAC.
  • 26
    54814060100 SPEEDOMETER BRACKET
    SPEEDOMETER BRACKET
  • 27
    54814060051 SPACER TUBE SPEEDOM.
    SPACER TUBE SPEEDOM.
  • 42
    54813026000 CABLE SUPPORT ORT 10/6M
    CABLE SUPPORT ORT 10/6M
