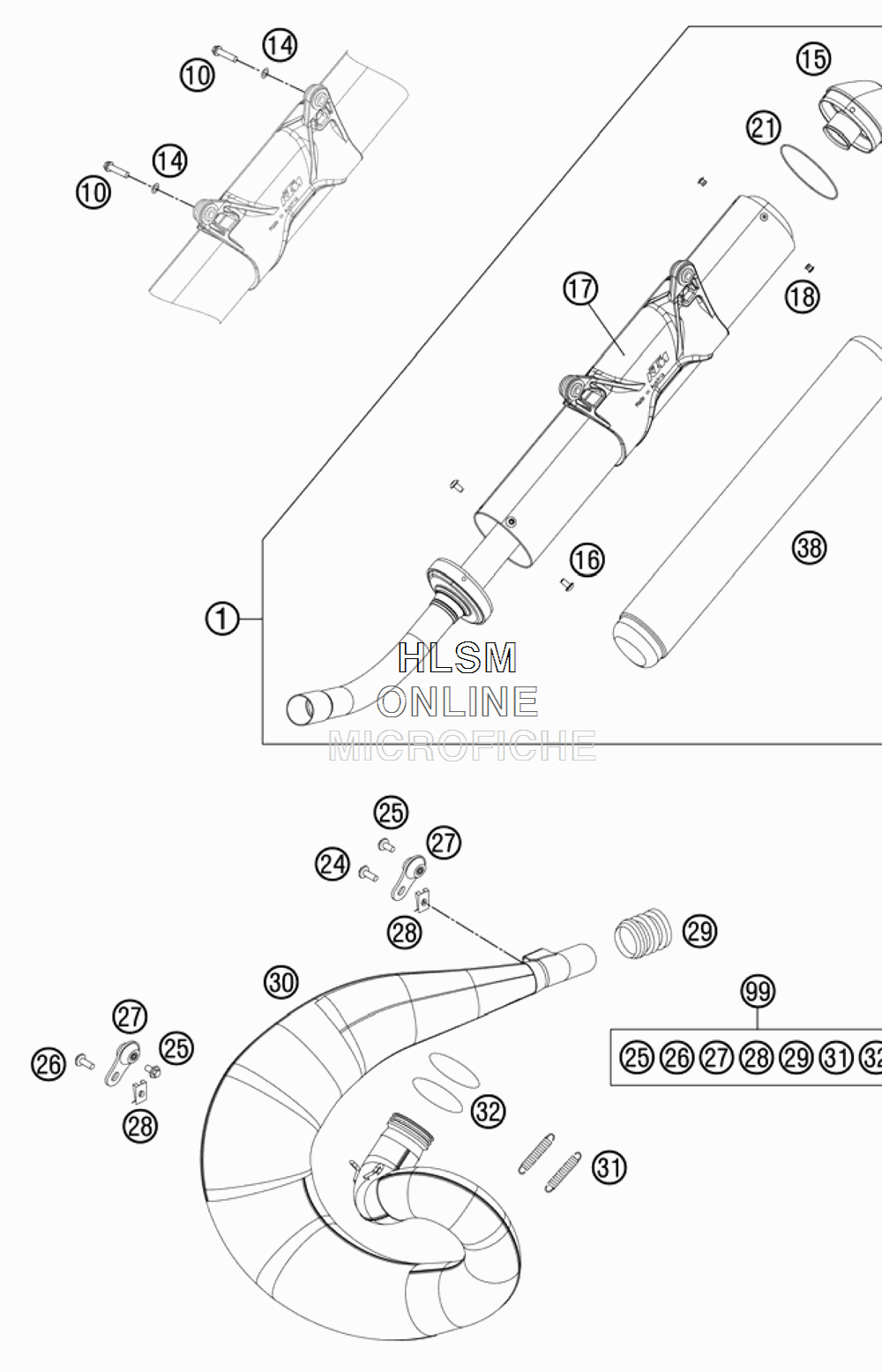

EXHAUST SYSTEM для Ktm 250 XC-W - 2013 года выпуска

  • №
    Артикул
    Название
  • 1
    54805083200 MAIN SILENCER
    MAIN SILENCER
  • 10
    0025060306 HH COLLAR SCREW M6X30 TX30
    HH COLLAR SCREW M6X30 TX30
  • 14
    0137060003 SPRING WASHER DIN0137-B 6
    SPRING WASHER DIN0137-B 6
  • 15
    54805083260 ENDCAP CPL.
    ENDCAP CPL.
  • 16
    58605083010 SCREW TORX M5X10 05
    SCREW TORX M5X10 05
  • 17
    54805183085 SILENCER HOUS. CPL. W. HANGING
    SILENCER HOUS. CPL. W. HANGING
  • 18
    0011480800 DUMMY RIVET 4,8X 8 NIRO
    DUMMY RIVET 4,8X 8 NIRO
  • 21
    0770740015 O-RING 74,00X1,50 FKM 75SH
    O-RING 74,00X1,50 FKM 75SH
  • 24
    0024060136 HH COLLAR SCREW M6X13 TX30
    HH COLLAR SCREW M6X13 TX30
  • 25
    0024060106 HH COLLAR SCREW M6X10 TX30
    HH COLLAR SCREW M6X10 TX30
  • 26
    0024060156 HH COLLAR SCREW M6X15 TX30
    HH COLLAR SCREW M6X15 TX30
  • 27
    50305012000 SWINGELEMENT FOR EXHAUST PIPE
    SWINGELEMENT FOR EXHAUST PIPE
  • 28
    54603048100 RANGE CHANGE METAL NUT M6
    RANGE CHANGE METAL NUT M6
  • 29
    50205057000 SILICON SLEEVE D=29/31MM
    SILICON SLEEVE D=29/31MM
  • 30
    54805107000 EXHAUST MANIFOLD
    EXHAUST MANIFOLD
  • 31
    50305016000 TEN.SPRING L=62MM EY.MOVEABLE
    TEN.SPRING L=62MM EY.MOVEABLE
  • 32
    0770440030 O-RING 44,00X3,00 VITON
    O-RING 44,00X3,00 VITON
  • 38
    54805078315 ROCKWOOL 315G
    ROCKWOOL 315G
  • 99
    00050000811 EXHAUST HARDWARE KIT
    EXHAUST HARDWARE KIT
