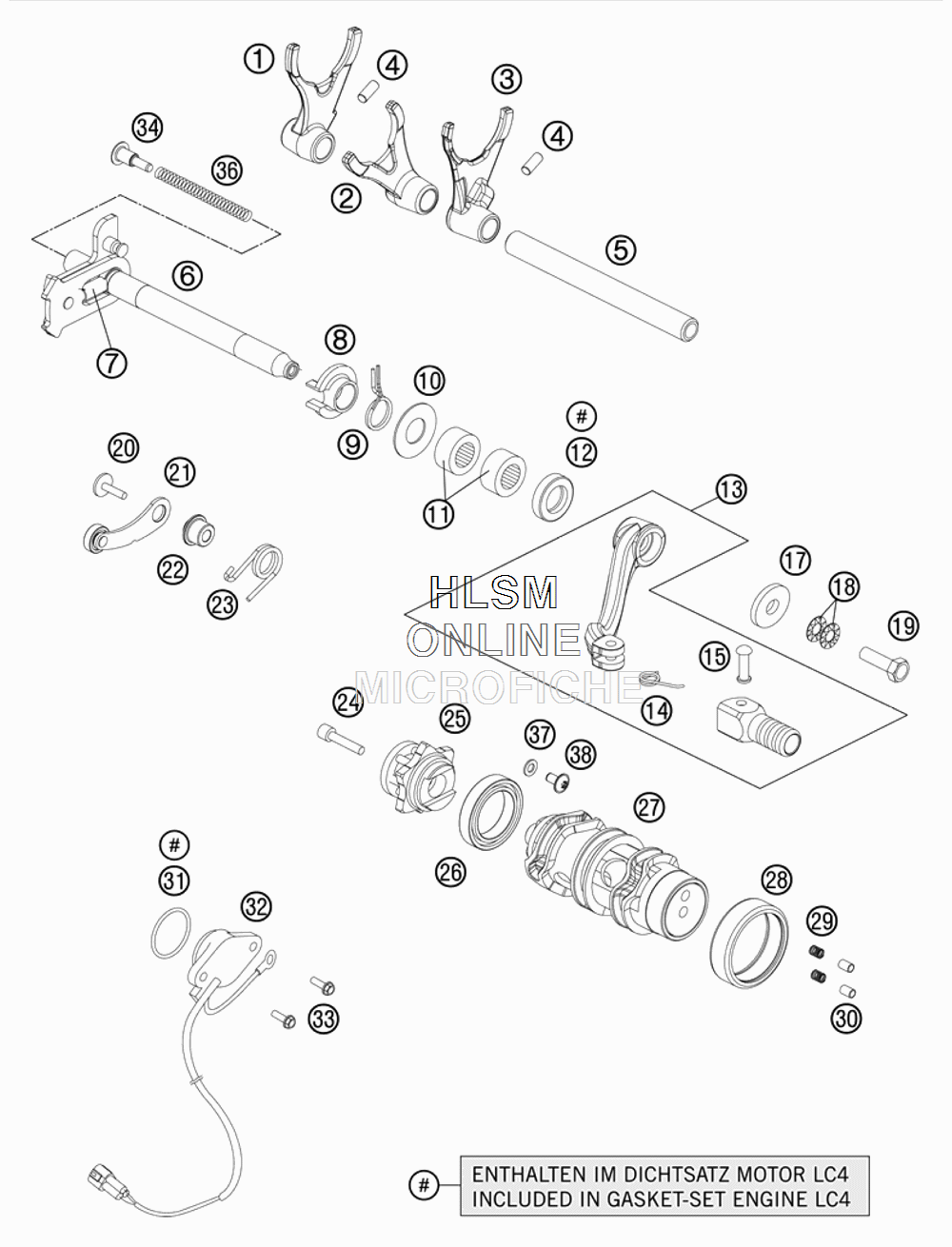

SHIFTING MECHANISM для Ktm 690 ENDURO R - 2012 года выпуска`
-
№АртикулНазвание
-
175034002000 SHIFT FORK F. SLIDING GEAR 5SHIFT FORK F. SLIDING GEAR 5
-
275034001000 SHIFT FORK F. SLIDING GEAR 3/4SHIFT FORK F. SLIDING GEAR 3/4
-
375034003000 SHIFT FORK F. SLIDING GEAR 6SHIFT FORK F. SLIDING GEAR 6
-
40402061480 NEEDLE ROLLER DIN5402 6X14,8NEEDLE ROLLER DIN5402 6X14,8
-
575034019000 SHIFTRAILSHIFTRAIL
-
675034005044 SHIFT SHAFT CPL.SHIFT SHAFT CPL.
-
756534013100 TENSIONING SPRING 0,8MMTENSIONING SPRING 0,8MM
-
854634020000 SPRING GUIDESPRING GUIDE
-
954634014100 RETURN SPRING 2,2MMRETURN SPRING 2,2MM
-
1075034050000 STOP DISK 14X30X1,5 STEELSTOP DISK 14X30X1,5 STEEL
-
1154632095000 NEEDLE BEAR.HK 1412 14X20X12NEEDLE BEAR.HK 1412 14X20X12
-
120760142461 SHAFT SEAL RING 14X24X6B VITONSHAFT SEAL RING 14X24X6B VITON
-
1376234031000 SHIFT LEVER CPL.SHIFT LEVER CPL.
-
1475034032000 SHIFTING LEVER SPRINGSHIFTING LEVER SPRING
-
1554634031050 BOLT 6X25 FOR SHIFT LEVERBOLT 6X25 FOR SHIFT LEVER
-
1750232050001 STEEL WASHER 6,4X17X3STEEL WASHER 6,4X17X3
-
1850233041000 PAIR OF WASHERS M 6 NORDLOCKPAIR OF WASHERS M 6 NORDLOCK
-
1959009062016 SPECIAL SCREW M6X16 WS=8 10.9SPECIAL SCREW M6X16 WS=8 10.9
-
200024060206 HH COLLAR SCREW M6X20 TX30HH COLLAR SCREW M6X20 TX30
-
2175034024044 LOCKING LEVER CPL.LOCKING LEVER CPL.
-
2275034052000 SLEEVE FOR LOCKING LEVERSLEEVE FOR LOCKING LEVER
-
2360034023000 ARRESTING LEVER SPRINGARRESTING LEVER SPRING
-
240912060303 AH SCREW DIN0912-M 6X30AH SCREW DIN0912-M 6X30
-
2575034015000 SHIFT DRUM LOCATING CPL.SHIFT DRUM LOCATING CPL.
-
260625618050 BALL BEARING 61805 C3BALL BEARING 61805 C3
-
2775034012044 SHIFT ROLLER CPL.SHIFT ROLLER CPL.
-
280618354212 NEEDLE BEAR HK3512 35X42X12NEEDLE BEAR HK3512 35X42X12
-
2960034014000 CONTACT SPRINGCONTACT SPRING
-
3060034037000 CONTACT BOLTCONTACT BOLT
-
310770275025 O-RING 27,5X2,5 NBRO-RING 27,5X2,5 NBR
-
3260011023100 GEAR-POSITION SENSORGEAR-POSITION SENSOR
-
330025050166 HH COLLAR SCREW M5X16 TX30HH COLLAR SCREW M5X16 TX30
-
3475034006000 SPACERSPACER
-
3675034007000 SPRING FOR OPERATING SHAFTSPRING FOR OPERATING SHAFT
-
370125050003 WASHER DIN0125-5-A 5,3WASHER DIN0125-5-A 5,3
-
38073800501001 FLAT HEAD SCREW W ISO 7380 M5X10FLAT HEAD SCREW W ISO 7380 M5X10
