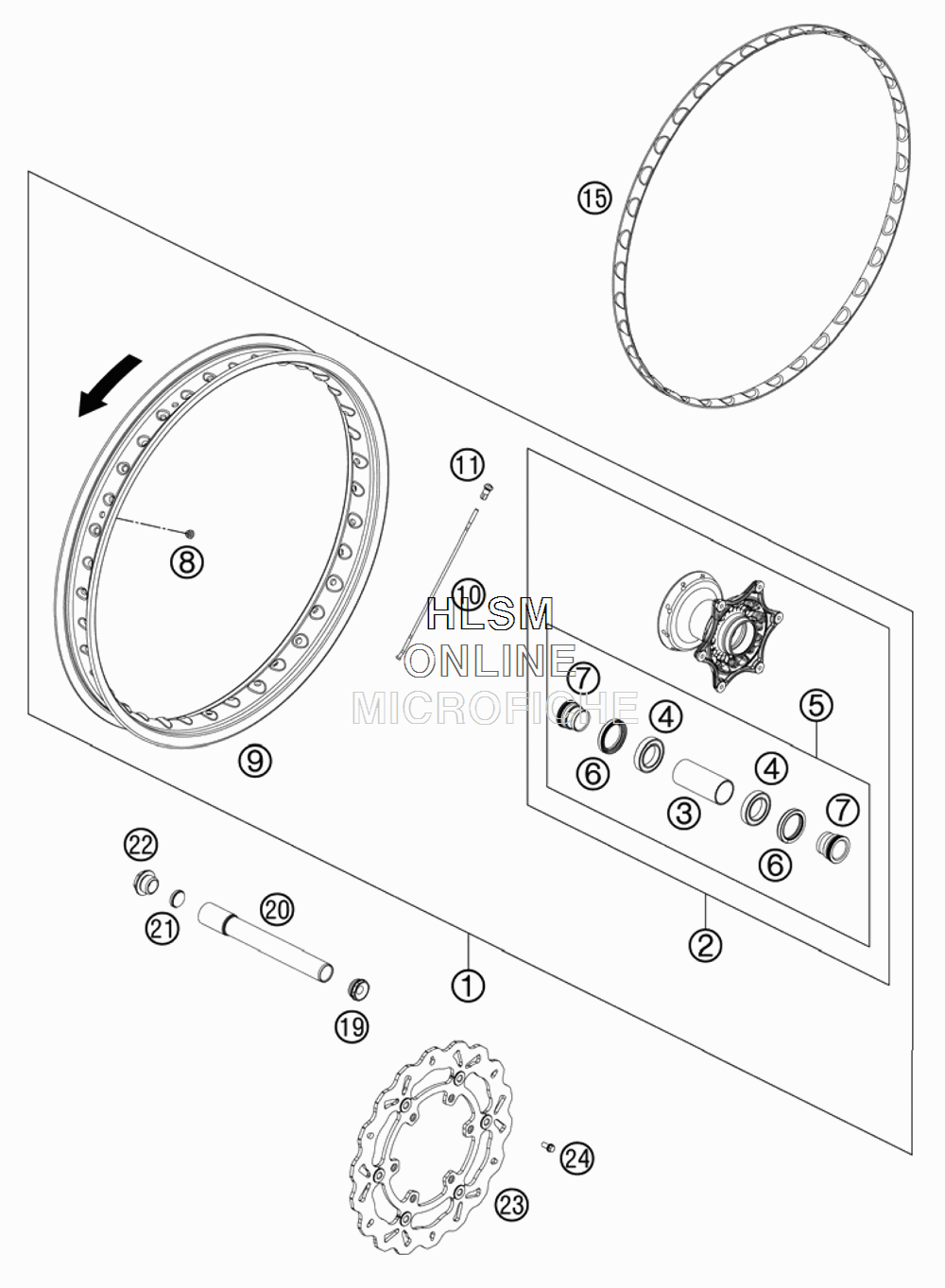

FRONT WHEEL для Ktm 690 ENDURO R - 2012 года выпуска

  • №
    Артикул
    Название
  • 1
    7650900104430 FRONT WHEEL CPL. 1,85X21''
    FRONT WHEEL CPL. 1,85X21''
  • 2
    75309010044 FRONT HUB CPL.
    FRONT HUB CPL.
  • 3
    54809011000 BEA.SPACERTUBE 35X2 L=79,4
    BEA.SPACERTUBE 35X2 L=79,4
  • 4
    0625069068 GR.BALL BEAR.6906 DDU2CG23S6NM
    GR.BALL BEAR.6906 DDU2CG23S6NM
  • 5
    78009015000 FRONT WHEEL REP. KIT
    FRONT WHEEL REP. KIT
  • 6
    0760354771 SHAFT SEAL RING 35X47X7 TC
    SHAFT SEAL RING 35X47X7 TC
  • 7
    78009012000 SPACER BUSHING F. FR. WHEEL
    SPACER BUSHING F. FR. WHEEL
  • 8
    55003135000 PLUG FOR RIM
    PLUG FOR RIM
  • 9
    7650907000030 RIM 1,85X21" DID BLACK
    RIM 1,85X21" DID BLACK
  • 10
    75309073226 SPOKE M4,5X226-18'' INOX
    SPOKE M4,5X226-18'' INOX
  • 11
    50309072100 SPOKE NIPPLE M4,5X0,75 8X21
    SPOKE NIPPLE M4,5X0,75 8X21
  • 15
    58409073100 RIM BAND FRONT 2MM
    RIM BAND FRONT 2MM
  • 19
    54809081050 PLUG BUSHING WS=27
    PLUG BUSHING WS=27
  • 20
    77309081000 WHEEL SPIN.FR. D=26 M24X1,5
    WHEEL SPIN.FR. D=26 M24X1,5
  • 21
    54809081070 AUXILIARY SCREW FRONT
    AUXILIARY SCREW FRONT
  • 22
    54809082000 SPINDLE SCREW M24X1,5 WS=27
    SPINDLE SCREW M24X1,5 WS=27
  • 23
    76509060100 FRONT BRAKE DISC D=300
    FRONT BRAKE DISC D=300
  • 24
    59009062013 SPECIAL SCREW CREW M6X13 WS=8 10.9
    SPECIAL SCREW CREW M6X13 WS=8 10.9
