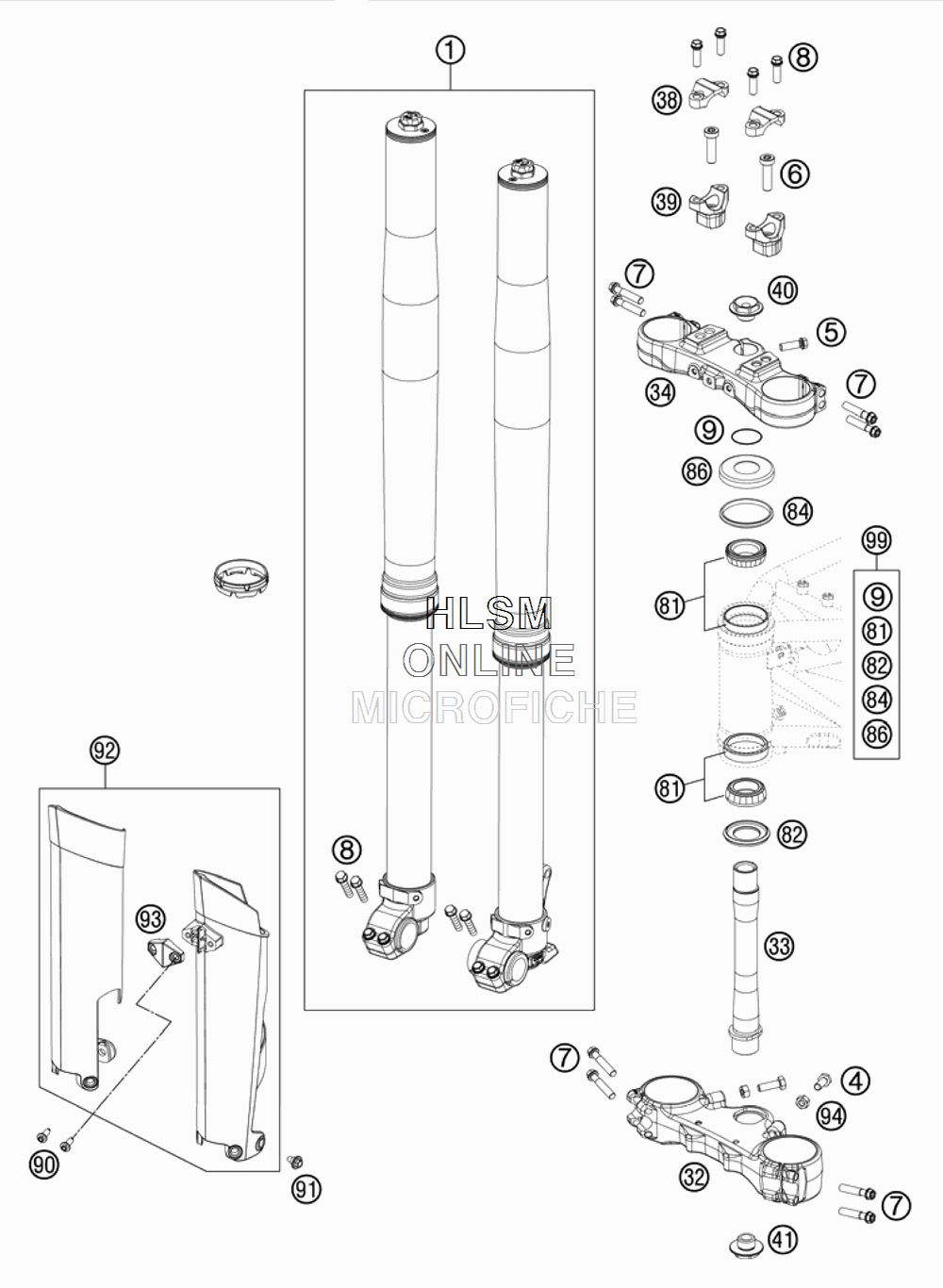

FRONT FORK TRIPLE CLAMP для Ktm 690 ENDURO R - 2012 года выпуска
-
№АртикулНазвание
-
114187L1001 FORKFORK
-
40933080253 HH SCREW DIN0933-M 8X25HH SCREW DIN0933-M 8X25
-
50025080306 HH COLLAR SCREW M8X30 TX40HH COLLAR SCREW M8X30 TX40
-
60032100356S AH-COLLAR SCREW M10X35 ISA45AH-COLLAR SCREW M10X35 ISA45
-
70025080406 HH COLLAR SCREW M8X40 TX40HH COLLAR SCREW M8X40 TX40
-
80025080256 HH COLLAR SCREW M8X25 TX40HH COLLAR SCREW M8X25 TX40
-
90770025035 O-RING 25X3,55 NBR70O-RING 25X3,55 NBR70
-
327650103103133 BOT.TRIPLE CLAMP 60 MMBOT.TRIPLE CLAMP 60 MM
-
3376501033000 FORK TUBE L=237MMFORK TUBE L=237MM
-
347650103403133 TOP TRIPLE CLAMP 54MMTOP TRIPLE CLAMP 54MM
-
3877201038000 HANDLEBAR CLAMP 28MMHANDLEBAR CLAMP 28MM
-
3959401039042 HANDLEB.SUPP. D=28MM H=42MMHANDLEB.SUPP. D=28MM H=42MM
-
4054801036000 STEER.HEAD SCREW M20X1,5 WS=27STEER.HEAD SCREW M20X1,5 WS=27
-
4154801036100 STE.HEAD SCR. M20X1,5 WS=27 SLSTE.HEAD SCR. M20X1,5 WS=27 SL
-
8154201081100 TAPERED ROLLER BEARING CPL.TAPERED ROLLER BEARING CPL.
-
8254601084100 O-RING SUPPORT W. SEALING LIPO-RING SUPPORT W. SEALING LIP
-
8454601184000 STEARING HEAD GASKET TOPSTEARING HEAD GASKET TOP
-
8654201086000 STEERING HEAD COVERSTEERING HEAD COVER
-
900017060204 EJOT PT SCREW K60X20 ALU WS=6EJOT PT SCREW K60X20 ALU WS=6
-
9159001092050 SPECIAL SCREW M6X12,5 WS=8SPECIAL SCREW M6X12,5 WS=8
-
927800109410030 FORK PROTECTION LE+RI BLACKFORK PROTECTION LE+RI BLACK
-
937800108500030 CLAMP F.SPEED.CABLE D=6MMCLAMP F.SPEED.CABLE D=6MM
-
940934080003 HEXAGON NUT DIN0934-M 8HEXAGON NUT DIN0934-M 8
-
9900050000930 STEARING HEAD REP. KITSTEARING HEAD REP. KIT
