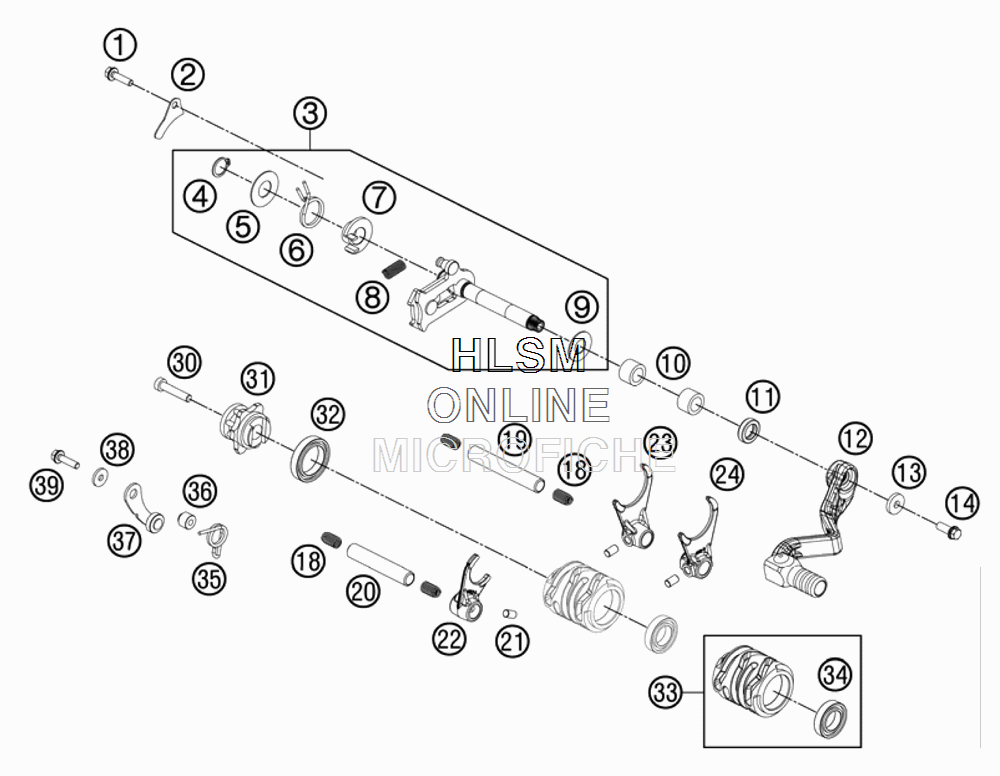

SHIFTING MECHANISM для Ktm 65 SXS - 2012 года выпуска`
-
№АртикулНазвание
-
10025050126 HH COLLAR SCREW M5X12 TX30HH COLLAR SCREW M5X12 TX30
-
246234005110 SHIFTING SHAFT FENDER RET. PL.SHIFTING SHAFT FENDER RET. PL.
-
346234005044 SHIFT SHAFT CPL.SHIFT SHAFT CPL.
-
40471140100 LOCK WASHER DIN0471-14X1LOCK WASHER DIN0471-14X1
-
554634050000 STOP DISK 14X30X1STOP DISK 14X30X1
-
654834014000 RETURN SPRINGRETURN SPRING
-
754634020000 SPRING GUIDESPRING GUIDE
-
856534013100 TENSIONING SPRING 0,8MMTENSIONING SPRING 0,8MM
-
949033013000 STOP DISK 12,1X25X1STOP DISK 12,1X25X1
-
1046034027000 NEEDLE BEARING 12X18X12NEEDLE BEARING 12X18X12
-
110760122050 SHAFT SEAL RING 12X20X5 BSHAFT SEAL RING 12X20X5 B
-
1246234031044 SHIFTING LEVER CPL.SHIFTING LEVER CPL.
-
1350232050001 STEEL WASHER 6,4X17X3STEEL WASHER 6,4X17X3
-
1459009062016 SPECIAL SCREW M6X16 WS=8 10.9SPECIAL SCREW M6X16 WS=8 10.9
-
1858038023200 PRESSURE SPRING 0,9MMPRESSURE SPRING 0,9MM
-
1946234019000 SHIFTING RAIL COUNTER SHAFTSHIFTING RAIL COUNTER SHAFT
-
2046234020000 SHIFTING RAIL MAIN SHAFTSHIFTING RAIL MAIN SHAFT
-
210402061000 NEEDLE ROLLER ZRB 6X10NEEDLE ROLLER ZRB 6X10
-
2246234001000 SHIFT FORK MAIN SHAFTSHIFT FORK MAIN SHAFT
-
2346234002000 SHIFT FORK COUNTERSHAFT R/SSHIFT FORK COUNTERSHAFT R/S
-
2446234003000 SHIFT FORK COUNTERSHAFT LL/SSHIFT FORK COUNTERSHAFT LL/S
-
300012060303 AH SCREW DIN6912 M6X30 8.8AH SCREW DIN6912 M6X30 8.8
-
3146234015044 SHIFT DRUM LOCATING CPL.SHIFT DRUM LOCATING CPL.
-
320625618050 BALL BEARING 61805 C3BALL BEARING 61805 C3
-
3346234012033 SHIFT ROLLER CPL.SHIFT ROLLER CPL.
-
340625069034 BALL BEARING 6903 C4BALL BEARING 6903 C4
-
3554834023000 LOCKING LEVER SPRINGLOCKING LEVER SPRING
-
3654634052300 SLEEVE FOR LOCKING LEVERSLEEVE FOR LOCKING LEVER
-
3750334024144 LOCATING LEVER CPL.LOCATING LEVER CPL.
-
380349000050 WASHER DIN7349-5X15X2WASHER DIN7349-5X15X2
-
390025050206 HH COLLAR SCREW W M5X 20 TX30HH COLLAR SCREW W M5X 20 TX30
