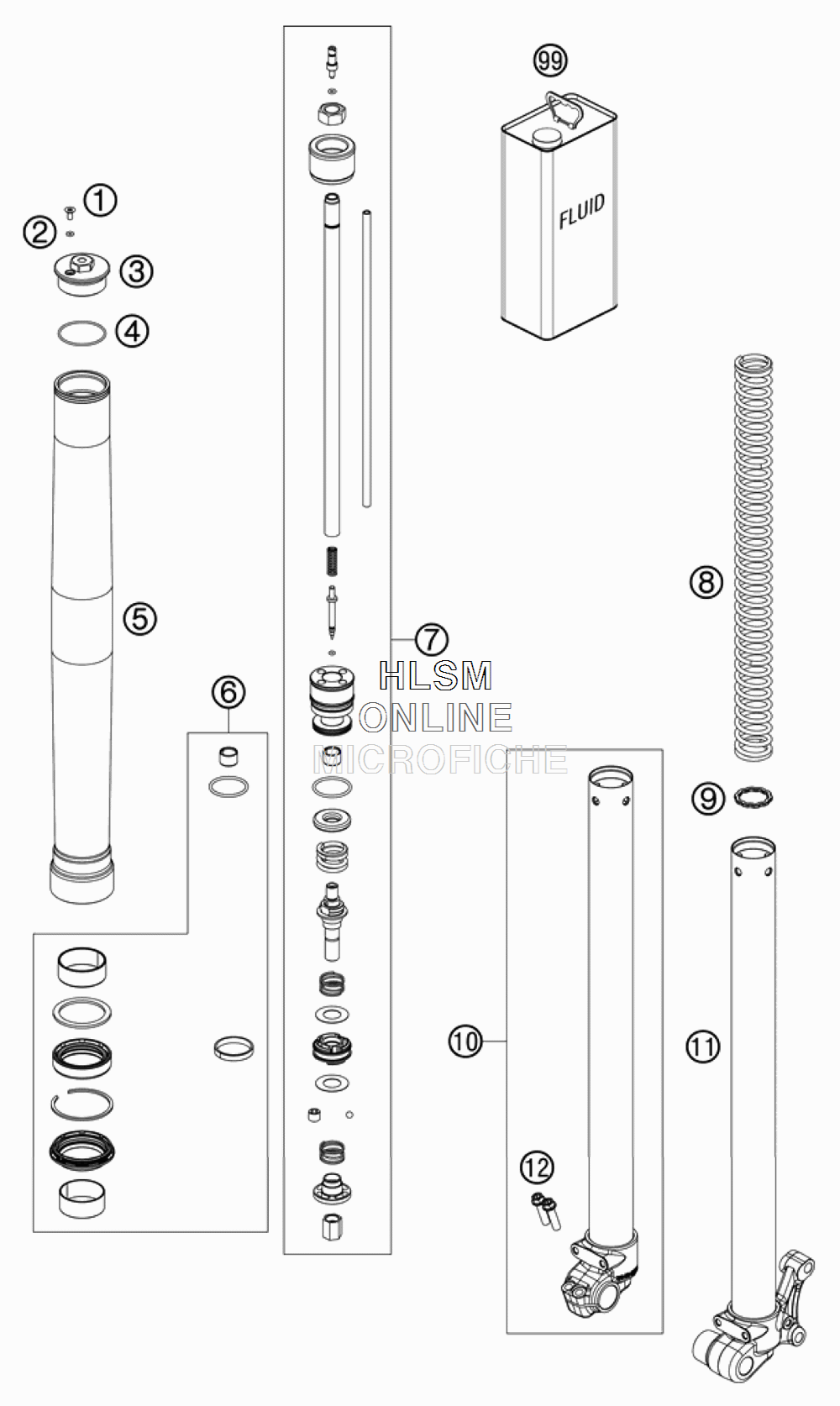

FRONT FORK DISASSEMBLED для Ktm 65 SXS - 2012 года выпуска`
-
№АртикулНазвание
-
148600481 VENT SCREW M4X8VENT SCREW M4X8
-
248600046 O-RING NBR 3X1,5O-RING NBR 3X1,5
-
335480496S SCREW CAP M38X1,5 ADJ. REBSCREW CAP M38X1,5 ADJ. REB
-
335480496S1 SCREW CAP M38X1,5 ADJ. COMSCREW CAP M38X1,5 ADJ. COM
-
446180581 O-RING 35X1.5 NBR70O-RING 35X1.5 NBR70
-
535480472 OUTER TUBE L=465OUTER TUBE L=465
-
6R703 REPAIR KITREPAIR KIT
-
735480477S PISTON ROD L/S CPL.PISTON ROD L/S CPL.
-
735480477S3 PISTON ROD R/S CPL.PISTON ROD R/S CPL.
-
895010044S SPRING 2,8N/MM D3,6 SETSPRING 2,8N/MM D3,6 SET
-
935480497 WASHER 22X30X2.5WASHER 22X30X2.5
-
1035480455S2 AXLE CLAMP KTM 65SX R/S. CPL.AXLE CLAMP KTM 65SX R/S. CPL.
-
1135480466S2 AXLE CLAMP KTM 65SX L/S CPL.AXLE CLAMP KTM 65SX L/S CPL.
-
120025060256 HH COLLAR SCREW M6X25 TX30HH COLLAR SCREW M6X25 TX30
-
9948600765 FORK OIL SAE5FORK OIL SAE5
