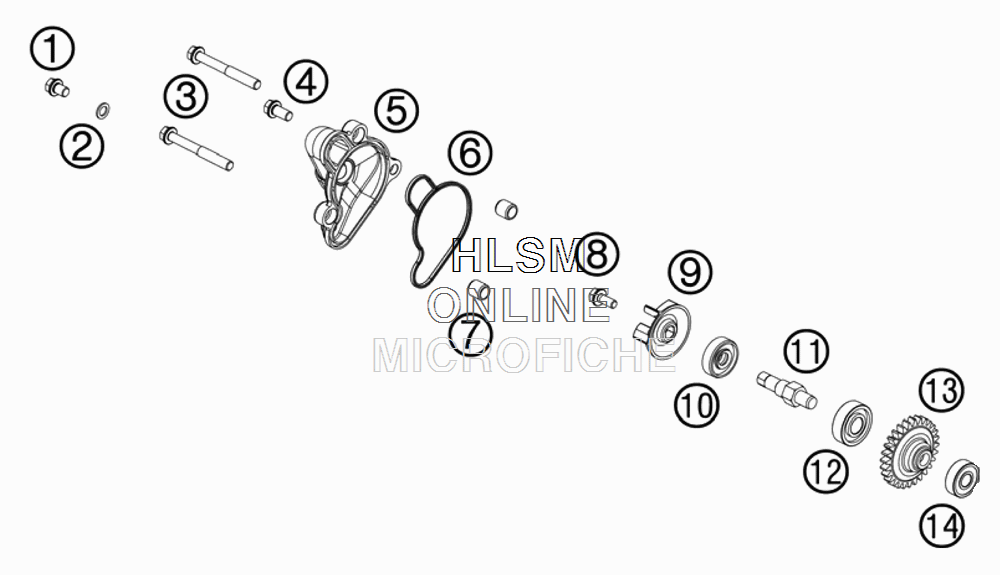

WATER PUMP для Ktm 65 SXS - 2012 года выпуска
-
№АртикулНазвание
-
10025060086 HH COLLAR SCREW M6X8 TX30HH COLLAR SCREW M6X8 TX30
-
20603061001 CU-SEAL RING DIN7603-6X10X1CU-SEAL RING DIN7603-6X10X1
-
30025060506 HH COLLAR SCREW M6X50 TX30HH COLLAR SCREW M6X50 TX30
-
40025060126 HH COLLAR SCREW M6X12 TX30HH COLLAR SCREW M6X12 TX30
-
545235052000 WATERPUMP COVERWATERPUMP COVER
-
645235053000 WATER PUMP COVER GASKETWATER PUMP COVER GASKET
-
749030090000 DOWEL 9,8 X 7 X 10DOWEL 9,8 X 7 X 10
-
80014050123 HH COLLAR SCREW M 5X12 WS=6HH COLLAR SCREW M 5X12 WS=6
-
954835005000 WATER PUMP WHEELWATER PUMP WHEEL
-
100760082472 SHAFT SEAL RING 8X24X7 A DUOSHAFT SEAL RING 8X24X7 A DUO
-
1150335054150 WATER PUMP SHAFTWATER PUMP SHAFT
-
120625060001 BALL BEARING 6000/C3BALL BEARING 6000/C3
-
1345235054028 DRIVE WHEELDRIVE WHEEL
-
140625006087 GROOVED BALL BEAR. 608 2RS C3GROOVED BALL BEAR. 608 2RS C3
