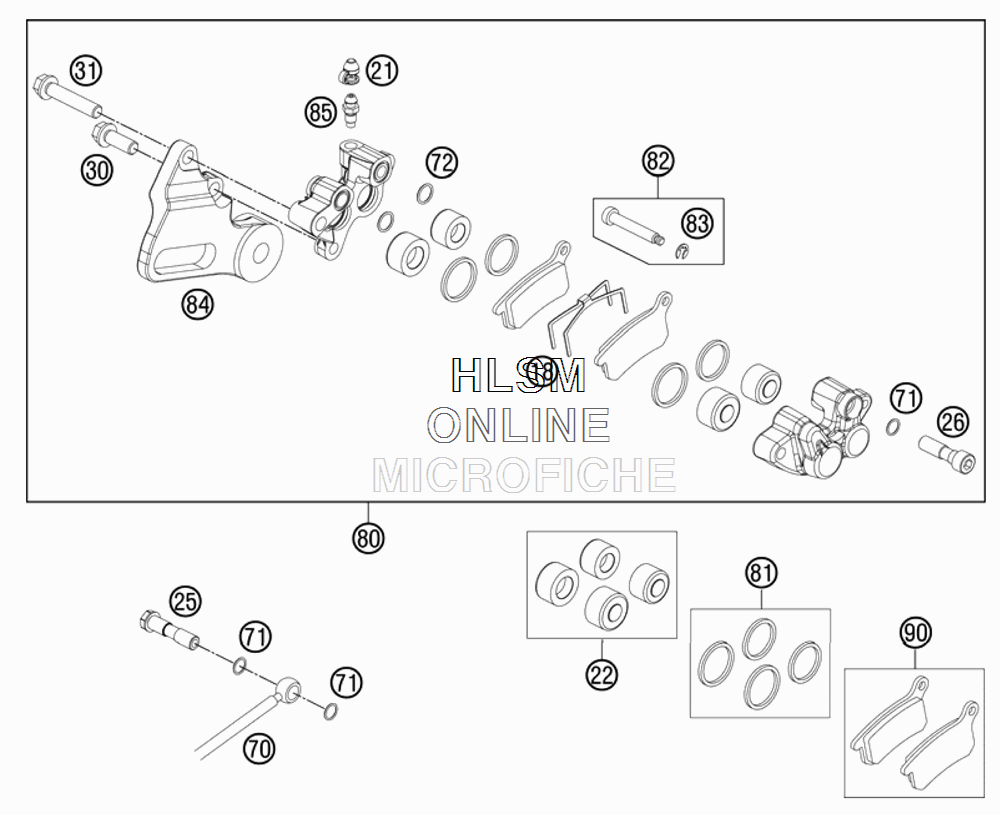

BRAKE CALIPER REAR для Ktm 65 SXS - 2012 года выпуска`
-
№АртикулНазвание
-
1846113018000 RETAINING SPRINGRETAINING SPRING
-
2147013021000 CAP FOR BLEEDER SCREWCAP FOR BLEEDER SCREW
-
2247013083100 REPAIR KIT BRAKEPISTONREPAIR KIT BRAKEPISTON
-
2547013225000 HOLLOW SCREW REARHOLLOW SCREW REAR
-
2647013325000 HOLLOW SCREW REARHOLLOW SCREW REAR
-
300025080206 HH COLLAR SCREW M8X20 TX40HH COLLAR SCREW M8X20 TX40
-
310025080406 HH COLLAR SCREW M8X40 TX40HH COLLAR SCREW M8X40 TX40
-
7046213070000 BRAKE HOSE REARBRAKE HOSE REAR
-
710770080019 O-RING 8,00X1,00 FORMULAO-RING 8,00X1,00 FORMULA
-
720770100019 O-RING 10X1 EPDMO-RING 10X1 EPDM
-
8046213080000 BRAKE CALIPER REAR CPL.BRAKE CALIPER REAR CPL.
-
8147013081000 REPAIR KIT SEAL RING REARREPAIR KIT SEAL RING REAR
-
8247013425000 AH SCREW + CIRCLIP 85/105AH SCREW + CIRCLIP 85/105
-
830799040009 TAB WASHER DIN6799-RA 4,0TAB WASHER DIN6799-RA 4,0
-
8446213075000 BRAKE CALIPER SUPPORTBRAKE CALIPER SUPPORT
-
8547013085000 BLEEDER SCREW M8X1BLEEDER SCREW M8X1
-
9047013090200 BRAKE PADS REAR SINTERBRAKE PADS REAR SINTER
