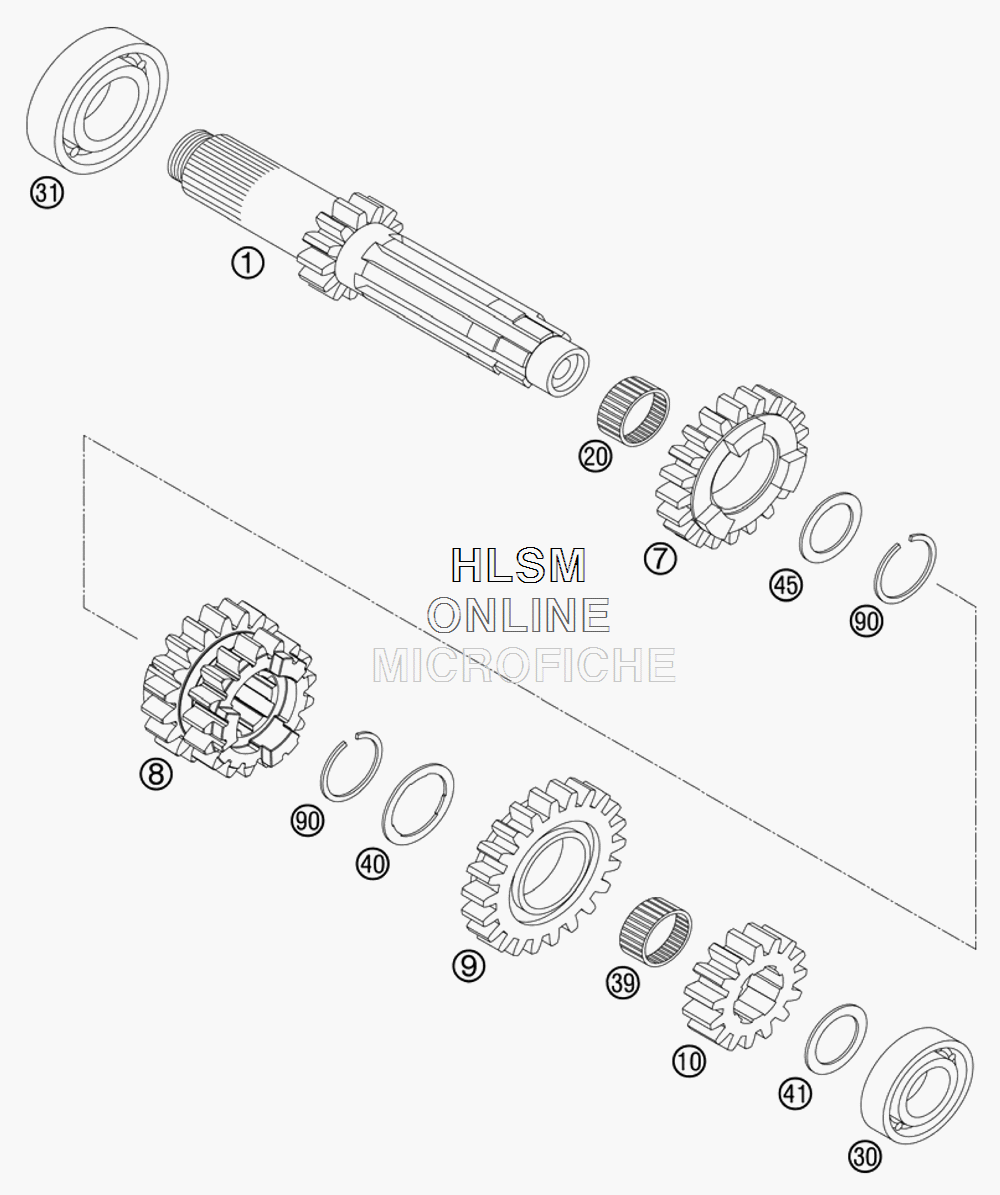

TRANSMISSION - MAIN SHAFT для Ktm 250 XCF-W - 2012 года выпуска`
-
№АртикулНазвание
-
177033101000 MAIN SHAFT CPL. Z=13 "B13"MAIN SHAFT CPL. Z=13 "B13"
-
777033105000 IDLER G. 5TH G=23 "5B23"IDLER G. 5TH G=23 "5B23"
-
877033103000 SLIDING G.3/4. G19/23-T"B1923"SLIDING G.3/4. G19/23-T"B1923"
-
977033106000 IDLER G. 6TH G.26 "6B26"IDLER G. 6TH G.26 "6B26"
-
1077033102000 SOLID GEAR 2ND G.17-T"2B17"SOLID GEAR 2ND G.17-T"2B17"
-
200405222611 NEEDLE BEAR.K 22X26X10 DIVIDEDNEEDLE BEAR.K 22X26X10 DIVIDED
-
300625160032 GROOVED BALL BEARING 16003 ZGROOVED BALL BEARING 16003 Z
-
310625060042 BALL BEARING 6004 TN9 C4BALL BEARING 6004 TN9 C4
-
3950133099000 NEEDLE CAGE K18X22X10 PARTEDNEEDLE CAGE K18X22X10 PARTED
-
4077033021000 STOP DISCSTOP DISC
-
4150333030000 STOP DISK 17,2X24X1STOP DISK 17,2X24X1
-
4577033020000 STOP GEAR 22X28.5X1STOP GEAR 22X28.5X1
-
9050133090000 LOCK RING NG 22X1,2LOCK RING NG 22X1,2
