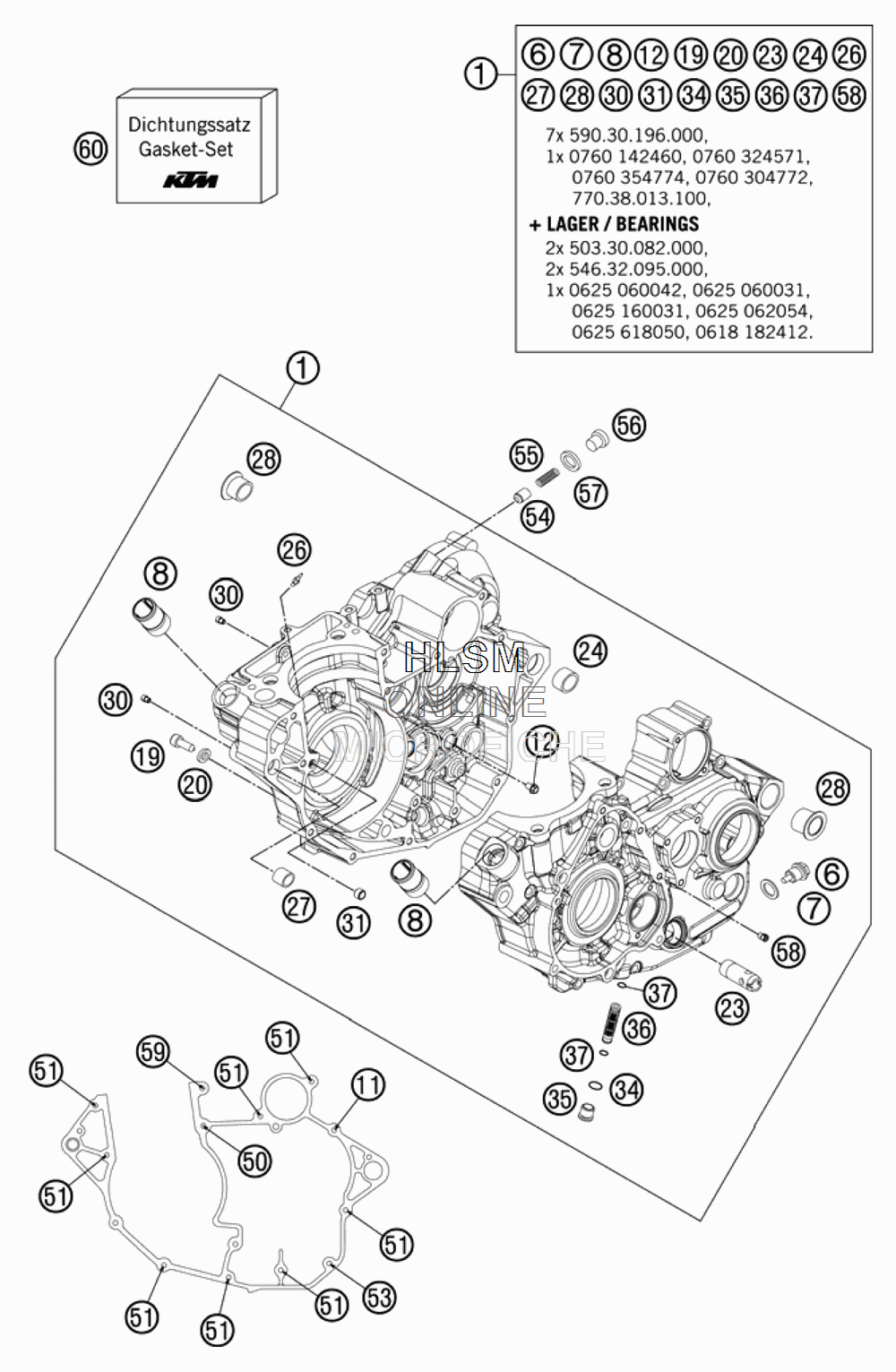

ENGINE CASE для Ktm 250 XCF-W - 2012 года выпуска

  • №
    Артикул
    Название
  • 1
    77130000144 ENGINE CASE CPL. W.TR.BEAR.
    ENGINE CASE CPL. W.TR.BEAR.
  • 6
    58030021000 OILDRAIN PLUG W.MAG. M 12X1,5
    OILDRAIN PLUG W.MAG. M 12X1,5
  • 7
    58038022000 CU-SEAL RING DIN7603-12X18X1,5
    CU-SEAL RING DIN7603-12X18X1,5
  • 8
    58030010200 SCREW IN NOZZLE M20X1,5
    SCREW IN NOZZLE M20X1,5
  • 11
    0025060406 HH COLLAR SCREW M6X40 TX30
    HH COLLAR SCREW M6X40 TX30
  • 12
    0025060086 HH COLLAR SCREW M6X8 TX30
    HH COLLAR SCREW M6X8 TX30
  • 19
    58030080000 LOCATING SCREW M8 L=23
    LOCATING SCREW M8 L=23
  • 20
    58030081000 CU-SEAL RING 8 X 14 X 3
    CU-SEAL RING 8 X 14 X 3
  • 23
    77038022000 OIL INTAKEPIPE
    OIL INTAKEPIPE
  • 24
    59030024000 DOWEL 17 X 19 X 12
    DOWEL 17 X 19 X 12
  • 26
    60030064070 OIL JET 70 M6X0,75 WS8
    OIL JET 70 M6X0,75 WS8
  • 27
    54630027000 DOWEL BUSHING 13,8X11X12
    DOWEL BUSHING 13,8X11X12
  • 28
    75030010100 CASE BUSH
    CASE BUSH
  • 30
    59030058000 JET 100 BING(44-031/180) M4
    JET 100 BING(44-031/180) M4
  • 31
    77130023000 DOWEL 6X8X5,5
    DOWEL 6X8X5,5
  • 34
    0770120020 O-RING 12,00X2,00 NBR 70
    O-RING 12,00X2,00 NBR 70
  • 35
    77038017000 SCREW PLUG
    SCREW PLUG
  • 36
    59038015100 OIL SCREEN 11,8X44,5MM
    OIL SCREEN 11,8X44,5MM
  • 37
    0770090015 O-RING 9X1,5 NBR
    O-RING 9X1,5 NBR
  • 50
    0025060656 HH COLLAR SCREW M6X65 TX30
    HH COLLAR SCREW M6X65 TX30
  • 51
    0025060506 HH COLLAR SCREW M6X50 TX30
    HH COLLAR SCREW M6X50 TX30
  • 53
    0025060306 HH COLLAR SCREW M6X30 TX30
    HH COLLAR SCREW M6X30 TX30
  • 54
    58038028000 VALVE PISTON D=10MM
    VALVE PISTON D=10MM
  • 55
    58038023300 PRESSURE SPRING L=25MM D=1MM
    PRESSURE SPRING L=25MM D=1MM
  • 56
    0908120153 PLUG DIN0908-M12X1,5
    PLUG DIN0908-M12X1,5
  • 57
    58038022000 CU-SEAL RING DIN7603-12X18X1,5
    CU-SEAL RING DIN7603-12X18X1,5
  • 58
    80030058060 OIL JET "60" M4
    OIL JET "60" M4
  • 59
    0025060606 HH COLLAR SCREW M6X60 TX30
    HH COLLAR SCREW M6X60 TX30
  • 60
    77030099100 GASKET SET
    GASKET SET
