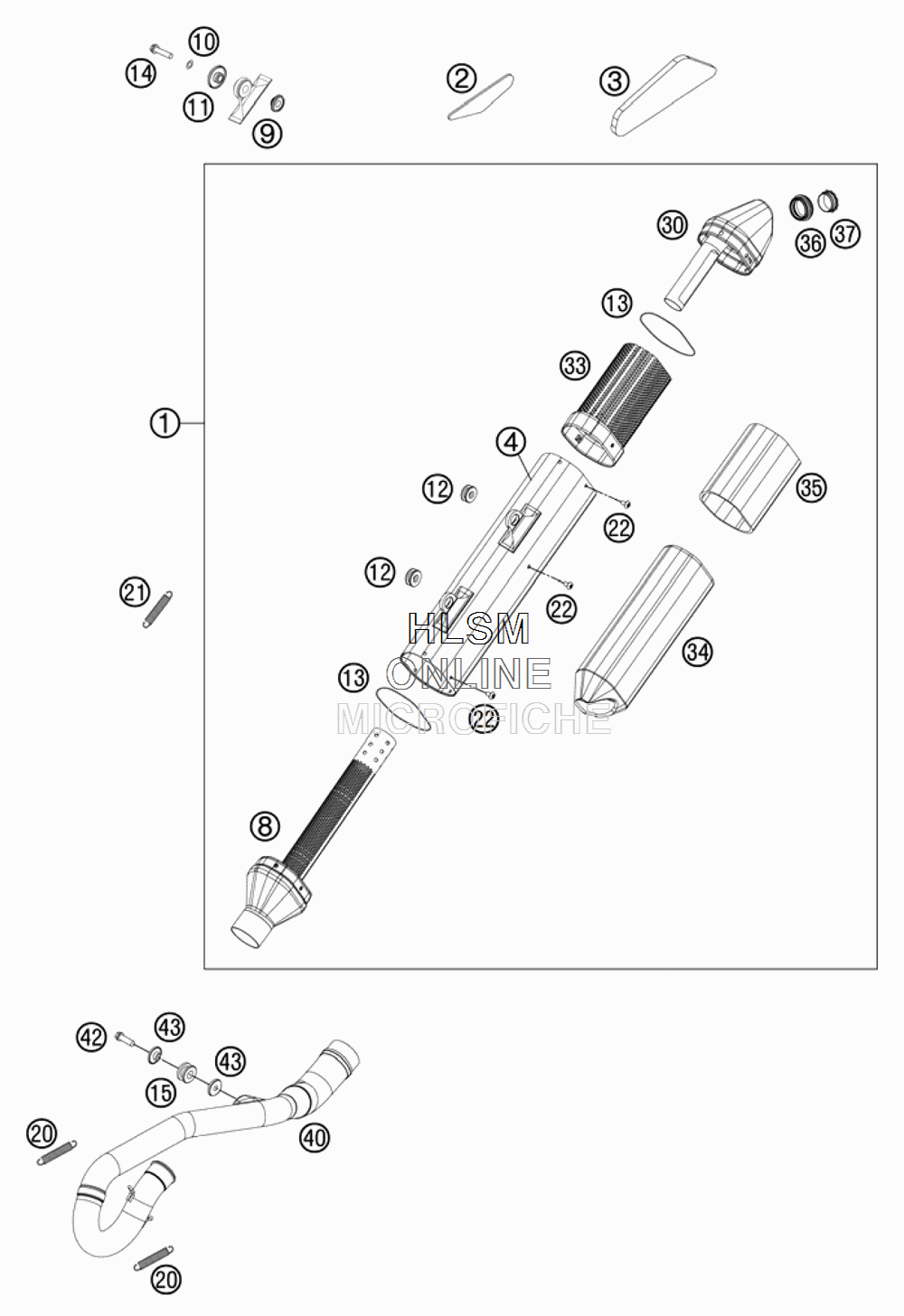

EXHAUST SYSTEM для Ktm 250 XCF-W - 2012 года выпуска

  • №
    Артикул
    Название
  • 1
    78105082000 SILENCER XC-W USA
    SILENCER XC-W USA
  • 2
    77308013050 THERMAL PROTECTION FOIL
    THERMAL PROTECTION FOIL
  • 3
    77208013050 THERMAL PROTECTION FOIL
    THERMAL PROTECTION FOIL
  • 4
    78105082080 SILENCER HOUSING
    SILENCER HOUSING
  • 8
    78105081050 CONNECTING CAP
    CONNECTING CAP
  • 9
    77205169000 BUSHING 7.5X12X28X8.3
    BUSHING 7.5X12X28X8.3
  • 10
    0137060003 SPRING WASHER DIN0137-B 6
    SPRING WASHER DIN0137-B 6
  • 11
    77205069000 BUSHING 7.5X12X20X8.2
    BUSHING 7.5X12X20X8.2
  • 12
    77205068000 DAMP. COMPON. BLACK
    DAMP. COMPON. BLACK
  • 13
    0770740015 O-RING 74,00X1,50 FKM 75SH
    O-RING 74,00X1,50 FKM 75SH
  • 14
    0025060306 HH COLLAR SCREW M6X30 TX30
    HH COLLAR SCREW M6X30 TX30
  • 15
    54605068000 EXHAUST BRACKET RUBBER BLACK
    EXHAUST BRACKET RUBBER BLACK
  • 20
    50305016000 TEN.SPRING L=62MM EY.MOVEABLE
    TEN.SPRING L=62MM EY.MOVEABLE
  • 21
    50305116000 TEN.SPRING L=75MM EY.MOVEABLE
    TEN.SPRING L=75MM EY.MOVEABLE
  • 22
    78105081010 SCREW TORX M5X10
    SCREW TORX M5X10
  • 30
    78105082060 SILENCER CAP
    SILENCER CAP
  • 33
    78105081040 INSERT SILENCER
    INSERT SILENCER
  • 34
    78105078430 STUFFING YARN 430G
    STUFFING YARN 430G
  • 35
    78105078070 STUFFING YARN REAR
    STUFFING YARN REAR
  • 36
    77005081154 SILENCER BUSHING REAR
    SILENCER BUSHING REAR
  • 37
    77005081055 SIL. ELEMENT
    SIL. ELEMENT
  • 40
    77105007000 EXHAUST MANIFOLD
    EXHAUST MANIFOLD
  • 42
    0025080256 HH COLLAR SCREW M8X25 TX40
    HH COLLAR SCREW M8X25 TX40
  • 43
    59405069000 BUSHING FOR EXHAUST SUPPORT
    BUSHING FOR EXHAUST SUPPORT
