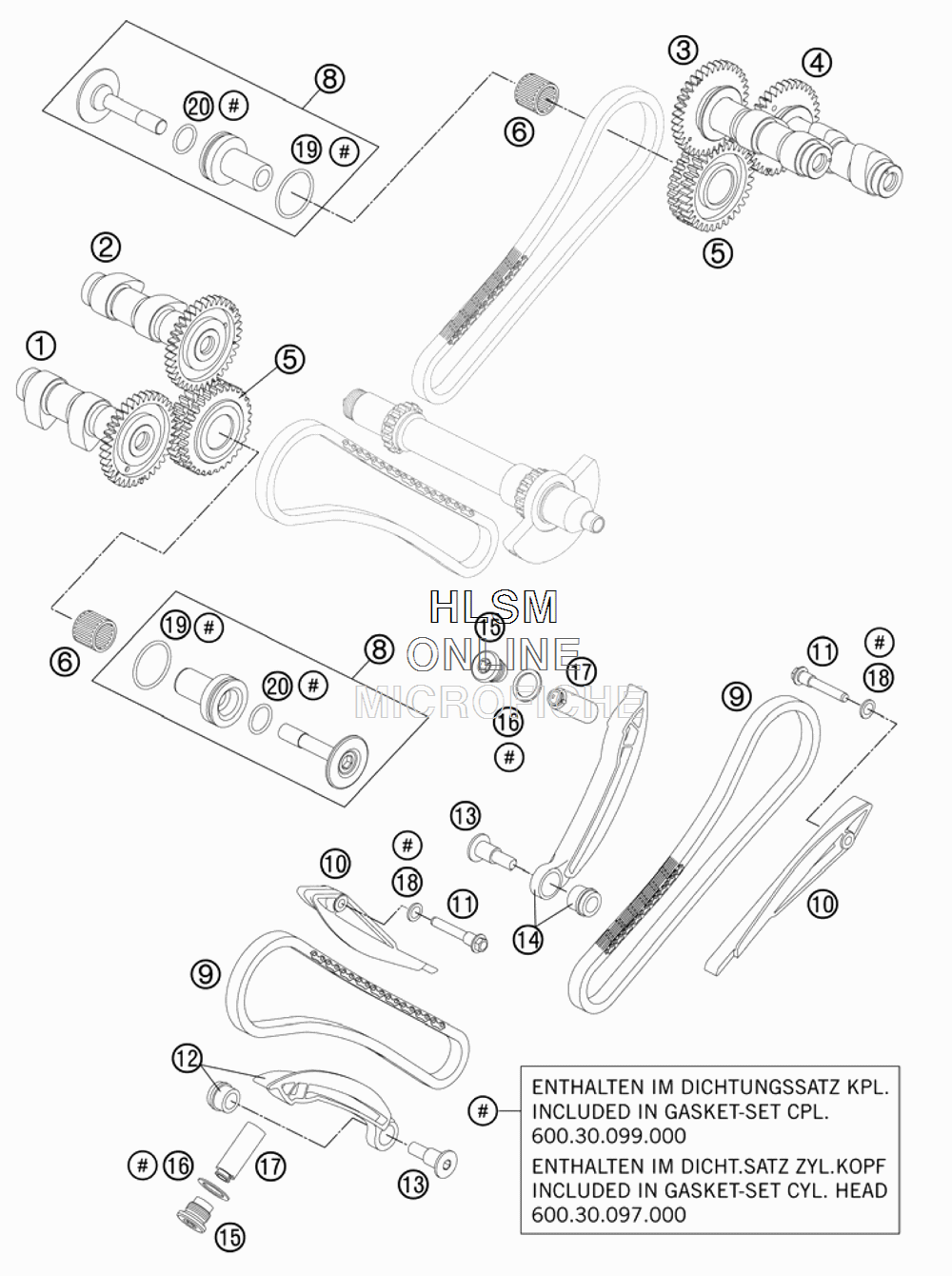

TIMING DRIVE для Ktm 990 SMT - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    60136010000 CAMSHAFT EXHAUST CPL. FRONT
    CAMSHAFT EXHAUST CPL. FRONT
  • 2
    60136009000 CAMSHAFT INTAKE CPL. FRONT
    CAMSHAFT INTAKE CPL. FRONT
  • 3
    60136109000 CAMSHAFT INTAKE CPL. REAR
    CAMSHAFT INTAKE CPL. REAR
  • 4
    60136110000 CAMSHAFT EXHAUST CPL. REAR
    CAMSHAFT EXHAUST CPL. REAR
  • 5
    60036070000 TIMING GEARS 32-T CPL.
    TIMING GEARS 32-T CPL.
  • 6
    0405182420 NEEDLE BEARING K18/24/20
    NEEDLE BEARING K18/24/20
  • 8
    60036071100 BEARING BOLT
    BEARING BOLT
  • 9
    60036013000 TOOTH CHAIN 88 LINK 6,35PITCH
    TOOTH CHAIN 88 LINK 6,35PITCH
  • 10
    60036001000 GUIDE RAIL
    GUIDE RAIL
  • 11
    60036002060 BUSHING SCREW 2 CYL.
    BUSHING SCREW 2 CYL.
  • 12
    60036002000 TENSIONER RAIL CPL. FRONT
    TENSIONER RAIL CPL. FRONT
  • 13
    60036002050 COLLAR SCREW AH M8
    COLLAR SCREW AH M8
  • 14
    60036102000 TENSIONER RAIL CPL. REAR
    TENSIONER RAIL CPL. REAR
  • 15
    60036008000 SCREW PLUG M16X1,5
    SCREW PLUG M16X1,5
  • 16
    0603162013 CU SEAL-RING DIN7603 16X20X1,3
    CU SEAL-RING DIN7603 16X20X1,3
  • 17
    60036003000 TIMING-CH.TENS. HYDR.(75YM)
    TIMING-CH.TENS. HYDR.(75YM)
  • 18
    0603082121 SEAL RING CU DIN7603- 8X12X1
    SEAL RING CU DIN7603- 8X12X1
  • 19
    0770290020 O-RING 29X2 VITON
    O-RING 29X2 VITON
  • 20
    0770160021 O-RING NG 16,00X2,00 VIT ON
    O-RING NG 16,00X2,00 VIT ON
