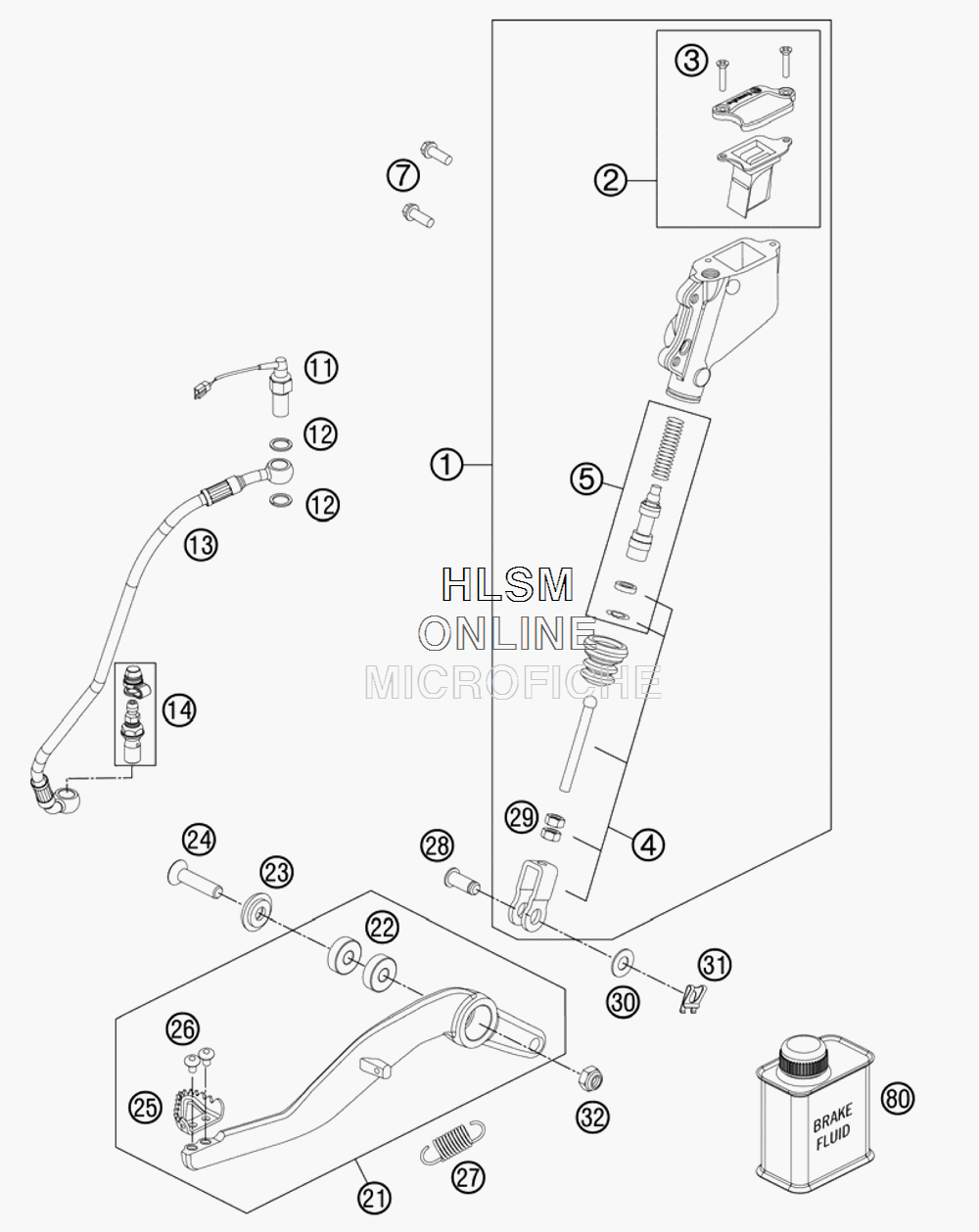

REAR BRAKE CONTROL для Ktm 990 SMT - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    60013060200 MAIN BRAKE CYLINDER CPL.
    MAIN BRAKE CYLINDER CPL.
  • 2
    60013059100 COVER MAIN BRAKE CYLINDER CPL.
    COVER MAIN BRAKE CYLINDER CPL.
  • 3
    0965040161 FLAT HEAD SCREW DIN0965-M 4X16
    FLAT HEAD SCREW DIN0965-M 4X16
  • 4
    60013056044 PUSH ROD CPL.
    PUSH ROD CPL.
  • 5
    60013061000 REPAIR KIT PISTON
    REPAIR KIT PISTON
  • 7
    59009062016 SPECIAL SCREW M6X16 WS=8 10.9
    SPECIAL SCREW M6X16 WS=8 10.9
  • 11
    62111051000 BRAKE LIGHT SWITCH REAR
    BRAKE LIGHT SWITCH REAR
  • 12
    06031001410 SEALING RING ALU DIN7603-10X14
    SEALING RING ALU DIN7603-10X14
  • 13
    62142001000 BRAKE HOSE CPL.
    BRAKE HOSE CPL.
  • 14
    62513020000 BLEEDER SCREW CPL.
    BLEEDER SCREW CPL.
  • 21
    6251305004401S FOOT BRAKE LEVER CPL.
    FOOT BRAKE LEVER CPL.
  • 22
    0625006087 GROOVED BALL BEAR. 608 2RS C3
    GROOVED BALL BEAR. 608 2RS C3
  • 23
    62603062000 SPECIAL WASHER 8X24 ALU H=2,6
    SPECIAL WASHER 8X24 ALU H=2,6
  • 24
    0019080356 COUNTERSUNK SCREW ISA45 M8X35
    COUNTERSUNK SCREW ISA45 M8X35
  • 25
    54813051100 STEP PLATE FOR BRAKE LEVER
    STEP PLATE FOR BRAKE LEVER
  • 26
    58605083010 SCREW TORX M5X10
    SCREW TORX M5X10
  • 27
    54603062000 RETURN SPRING FOR BRAKE LEVER
    RETURN SPRING FOR BRAKE LEVER
  • 28
    60013057000 BOLT F. LINK FORK 8X20X16,5
    BOLT F. LINK FORK 8X20X16,5
  • 29
    0934060003 HEXAGON NUT DIN0934-M 6
    HEXAGON NUT DIN0934-M 6
  • 30
    0125080003 WASHER DIN0125-A 8,4
    WASHER DIN0125-A 8,4
  • 31
    60013058000 SECURING CLIP D=8MM
    SECURING CLIP D=8MM
  • 32
    0985080003 SELF LOCKING NUT DIN0985-M 8
    SELF LOCKING NUT DIN0985-M 8
  • 80
    00062030000 BRAKE FLUID DOT5.1 0,25L 0 ,25L
    BRAKE FLUID DOT5.1 0,25L 0 ,25L
