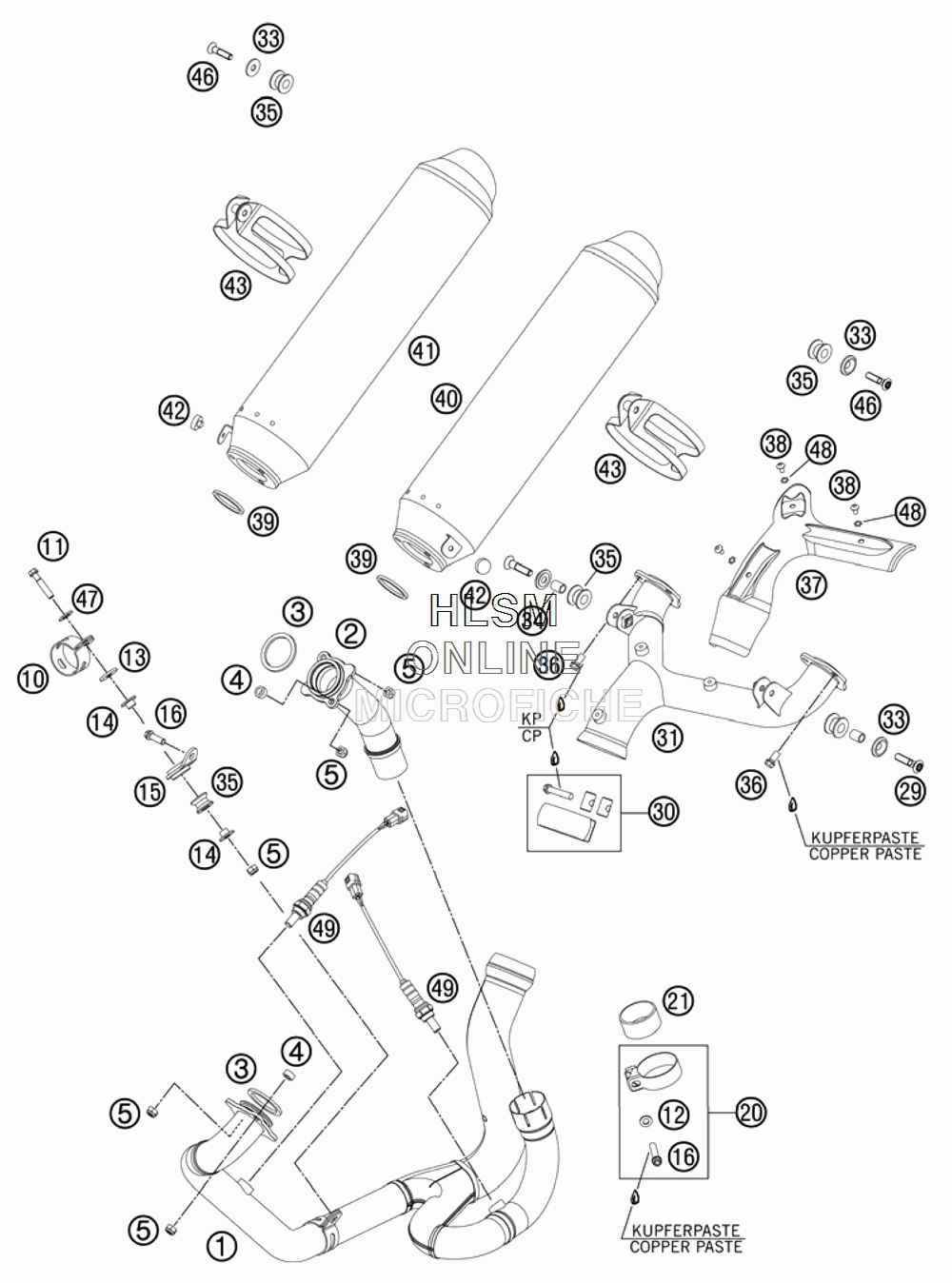

EXHAUST SYSTEM для Ktm 990 SMT - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    62605007000 EXHAUST MANIFOLD
    EXHAUST MANIFOLD
  • 2
    61105008000 EXHAUST PIPE REAR
    EXHAUST PIPE REAR
  • 3
    61005005000 EXHAUST GASKET 05
    EXHAUST GASKET 05
  • 4
    61005009000 SPACER BUSH. 8,5X15X7,5
    SPACER BUSH. 8,5X15X7,5
  • 5
    51010086100 SELF LOCKING NUT M 8 CU
    SELF LOCKING NUT M 8 CU
  • 10
    61005007049 CLAMP EXHAUST PIPE
    CLAMP EXHAUST PIPE
  • 11
    0025080406 HH COLLAR SCREW M8X40 TX40
    HH COLLAR SCREW M8X40 TX40
  • 12
    0125080003 WASHER DIN0125-A 8,4
    WASHER DIN0125-A 8,4
  • 13
    51005067000 INSOLATE WASHER 8,5X28X3
    INSOLATE WASHER 8,5X28X3
  • 14
    58405050065 COLLAR BUSH 8,5X12X23,5X10
    COLLAR BUSH 8,5X12X23,5X10
  • 15
    62505015150 EXHAUST PIPE BRACKET FRONT
    EXHAUST PIPE BRACKET FRONT
  • 16
    0025080356 HH COLLAR SCREW M8X35 TX40
    HH COLLAR SCREW M8X35 TX40
  • 20
    61105051000 EXHAUST CLAMP 52,2MM
    EXHAUST CLAMP 52,2MM
  • 21
    58405005001 GRAPHITRING 45X50X25
    GRAPHITRING 45X50X25
  • 29
    0019080356 COUNTERSUNK SCREW ISA45 M8X35
    COUNTERSUNK SCREW ISA45 M8X35
  • 30
    61005052000 EXHAUST CLAMP CPL.
    EXHAUST CLAMP CPL.
  • 31
    62505048100 DISTRIBUTOR TUBE
    DISTRIBUTOR TUBE
  • 32
    0025080306 HH COLLAR SCREW M8X30 TX40
    HH COLLAR SCREW M8X30 TX40
  • 33
    62603061000 SPECIAL WASHER 8X24 ALU H=4,2
    SPECIAL WASHER 8X24 ALU H=4,2
  • 34
    62505069000 SPACER BUSH. 8,5X12X18MM
    SPACER BUSH. 8,5X12X18MM
  • 35
    54305068100 DAMP. COMPONENT SILICONE GREY
    DAMP. COMPONENT SILICONE GREY
  • 36
    0025080166 HH COLLAR SCREW M8X16 TX40
    HH COLLAR SCREW M8X16 TX40
  • 37
    62505047000 THERMAL SHIELD
    THERMAL SHIELD
  • 38
    58605083010 SCREW TORX M5X10
    SCREW TORX M5X10
  • 39
    60005005002 EXHAUST GASKET
    EXHAUST GASKET
  • 40
    62605182000 EXHAUST SILENCER L/S
    EXHAUST SILENCER L/S
  • 41
    62605183000 EXHAUST SILENCER R/S
    EXHAUST SILENCER R/S
  • 42
    54308042000 RUBBER BUFFER
    RUBBER BUFFER
  • 43
    60005095000 CLAMP FOR SILENCER CPL.
    CLAMP FOR SILENCER CPL.
  • 46
    0019080306S COUNTER-SUNK SCREW ISA45 M8X30
    COUNTER-SUNK SCREW ISA45 M8X30
  • 47
    0021080003 WASHER DIN9021-A 8,4
    WASHER DIN9021-A 8,4
  • 48
    0797050000 TOOTH LOCK WASHER DIN6797-J
    TOOTH LOCK WASHER DIN6797-J
  • 49
    61041090000 LAMBDA SENSOR
    LAMBDA SENSOR
