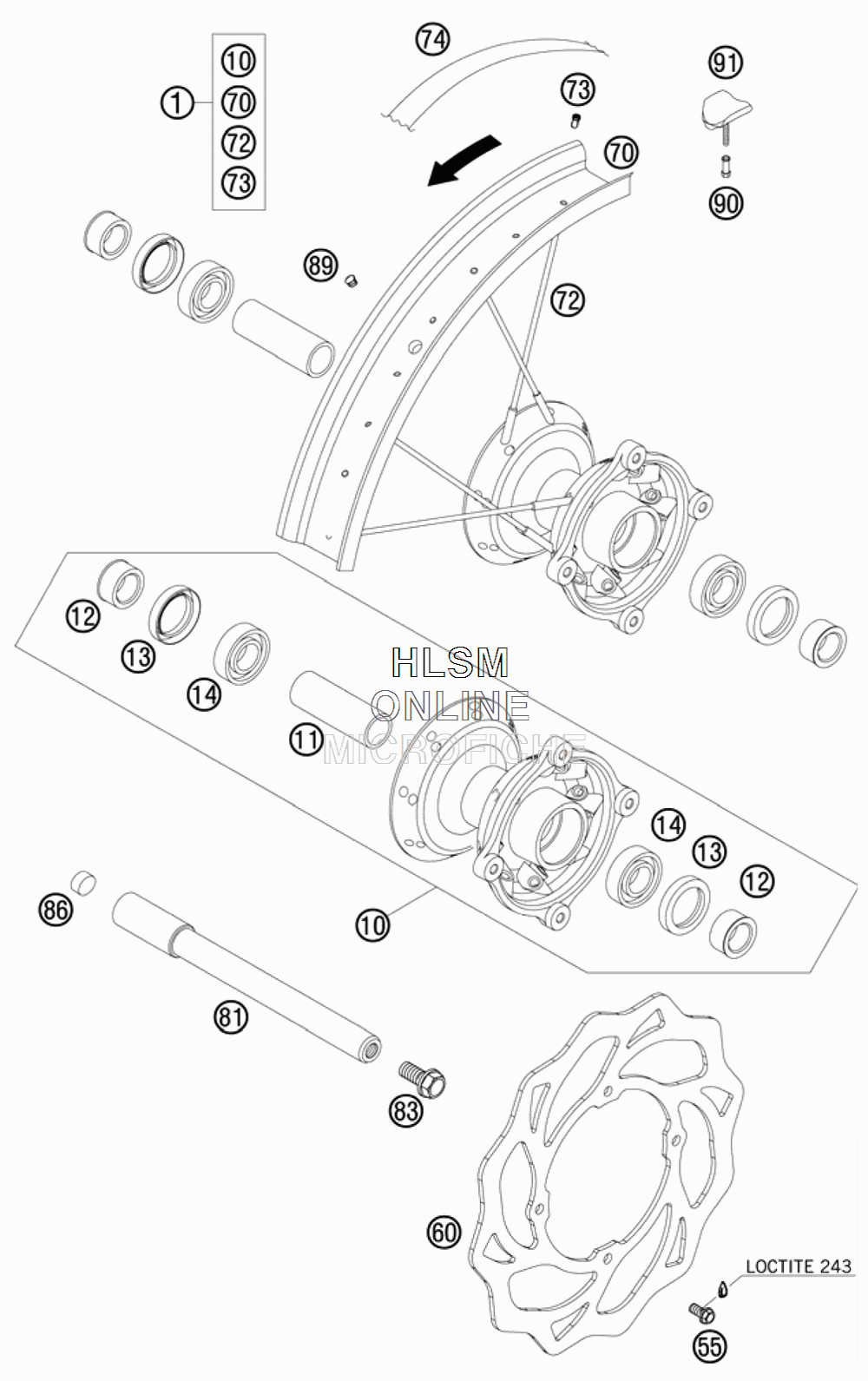

FRONT WHEEL для Ktm 85 SX 17/14 - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    47009001344 FRONT WHEEL ET 85 SX 19"
    FRONT WHEEL ET 85 SX 19"
  • 10
    4700901004491 FRONT WHEEL HUB CPL. 85 SX
    FRONT WHEEL HUB CPL. 85 SX
  • 11
    47009011000 BEARING SPACER TUBE 85 SX
    BEARING SPACER TUBE 85 SX
  • 12
    47009012000 SPACER BUSHING 85 SX
    SPACER BUSHING 85 SX
  • 13
    0760253572 SEAL SHAFT RING 25X35X7 BSL
    SEAL SHAFT RING 25X35X7 BSL
  • 14
    0625060037 GR.BALL BEAR. 6003-2RSH/C3HMTF
    GR.BALL BEAR. 6003-2RSH/C3HMTF
  • 55
    59009062013 SPECIAL SCREW M6X13 WS=8 10.9
    SPECIAL SCREW M6X13 WS=8 10.9
  • 60
    47009060300 BRAKE DISC FRONT D=219MM
    BRAKE DISC FRONT D=219MM
  • 70
    47009070100 RIM FRONT AL4 19X1,60-32
    RIM FRONT AL4 19X1,60-32
  • 72
    47009074210 SPOKE FRONT 19" 4/3,5/4-210
    SPOKE FRONT 19" 4/3,5/4-210
  • 73
    50309072100 SPOKE NIPPLE M4,5X0,75 8X21
    SPOKE NIPPLE M4,5X0,75 8X21
  • 74
    47009073100 RIM BAND 85 SX 19"
    RIM BAND 85 SX 19"
  • 81
    47009081000 AXLE FRONT 85 SX
    AXLE FRONT 85 SX
  • 83
    49032011000 HH COLLAR SCREW M10X20 WS=17
    HH COLLAR SCREW M10X20 WS=17
  • 86
    55009086000 PLUG SFL13
    PLUG SFL13
  • 89
    55003135000 PLUG FOR RIM
    PLUG FOR RIM
  • 90
    50310090050 NUT FOR WHEEL HOLDER
    NUT FOR WHEEL HOLDER
  • 91
    51009100100 RIM LOCK VM1 (1,60")
    RIM LOCK VM1 (1,60")
