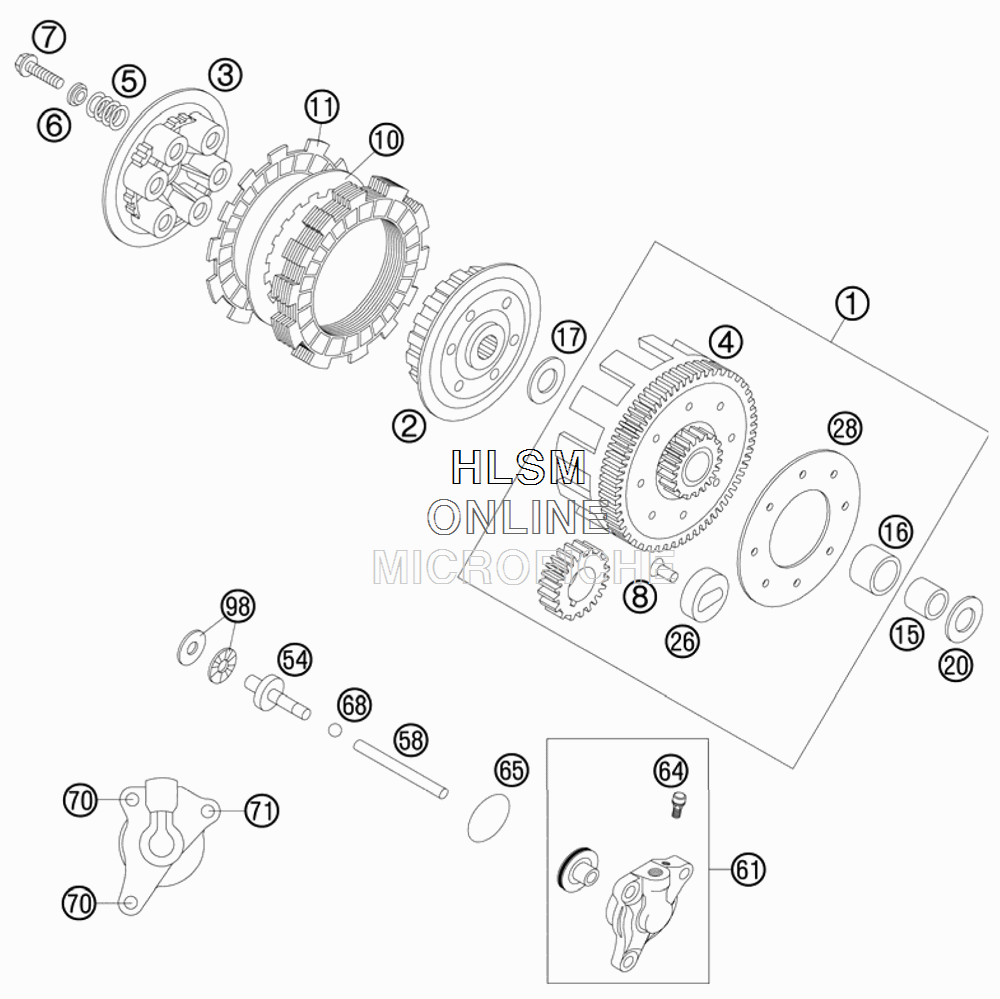

CLUTCH для Ktm 85 SX 17/14 - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    47032001144 OUTER CLUTCH HUB CPL. 85 SX
    OUTER CLUTCH HUB CPL. 85 SX
  • 2
    47032002000 INNER CLUTCH HUB 85 SX
    INNER CLUTCH HUB 85 SX
  • 3
    47032003000 PRESSURE CAP 85 SX
    PRESSURE CAP 85 SX
  • 4
    47032001100 OUT. CLUTCH HUB LOOSE 85 SX
    OUT. CLUTCH HUB LOOSE 85 SX
  • 5
    47032005000 CLUTCH SPRING 85 SX
    CLUTCH SPRING 85 SX
  • 6
    47032006000 SPRING RETAIN. 5,1X10,2X15X2,5
    SPRING RETAIN. 5,1X10,2X15X2,5
  • 7
    0015050203 HH COLLAR SCREW M 5X20 WS=8
    HH COLLAR SCREW M 5X20 WS=8
  • 8
    47032008000 RIVET DIN0661 5X14
    RIVET DIN0661 5X14
  • 10
    47032010000 STEEL DISC 85 SX
    STEEL DISC 85 SX
  • 11
    47032011000 LINING DISC 85 SX
    LINING DISC 85 SX
  • 15
    47032015000 BUSHING 20X25X20,5
    BUSHING 20X25X20,5
  • 16
    47032016000 INNER RING 25X28X20
    INNER RING 25X28X20
  • 17
    47032017000 SUPPORT WASHER 18,5X35X1,5
    SUPPORT WASHER 18,5X35X1,5
  • 20
    47032020000 STOP DISC 20X32X2
    STOP DISC 20X32X2
  • 26
    47032026000 DAMPING ELEMENT 85 SX
    DAMPING ELEMENT 85 SX
  • 28
    47032028000 RETAINING PLATE 85 SX
    RETAINING PLATE 85 SX
  • 54
    47032054000 PRESSURE PLATE 85 SX
    PRESSURE PLATE 85 SX
  • 58
    47032058000 PUSH ROD 85 SX
    PUSH ROD 85 SX
  • 61
    75032061044 OUTPUT CYL. WITH BLEEDER SCREW
    OUTPUT CYL. WITH BLEEDER SCREW
  • 64
    54732064000 BLEEDER SCREW WITH CAP
    BLEEDER SCREW WITH CAP
  • 65
    0770300015 O-RING 30,00X1,50 NBR 70
    O-RING 30,00X1,50 NBR 70
  • 68
    47032068000 BALL D=6MM 85 SX
    BALL D=6MM 85 SX
  • 70
    0015060163 HH COLLAR SCREW M 6X16 WS=8
    HH COLLAR SCREW M 6X16 WS=8
  • 71
    0015060303 HH COLLAR SCREW M 6X30 SW=8
    HH COLLAR SCREW M 6X30 SW=8
  • 98
    47032098000 AXIAL NEEDLE BEARING 85 SX
    AXIAL NEEDLE BEARING 85 SX
