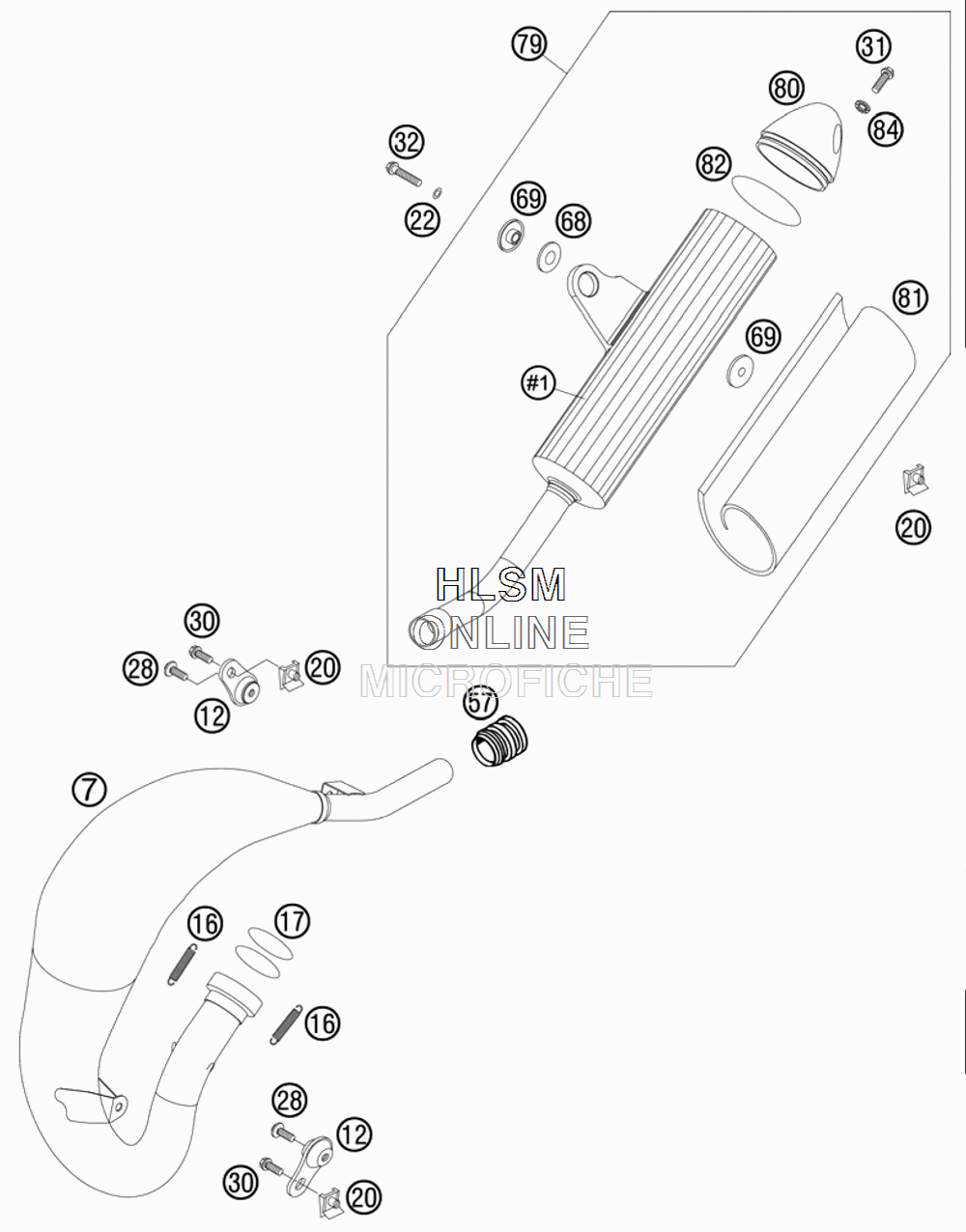

EXHAUST SYSTEM для Ktm 85 SX 17/14 - 2011 года выпуска

  • №
    Артикул
    Название
  • 7
    47005007100 EXHAUST PIPE 85 SX
    EXHAUST PIPE 85 SX
  • 12
    50305012000 SWINGELEMENT FOR EXHAUST PIPE
    SWINGELEMENT FOR EXHAUST PIPE
  • 16
    50305016000 TEN.SPRING L=62MM EY.MOVEABLE
    TEN.SPRING L=62MM EY.MOVEABLE
  • 17
    0770380030 O-RING 38,00X3,00 VITON
    O-RING 38,00X3,00 VITON
  • 20
    54603048100 RANGE CHANGE METAL NUT M6
    RANGE CHANGE METAL NUT M6
  • 22
    0137060003 SPRING WASHER DIN0137-B 6
    SPRING WASHER DIN0137-B 6
  • 28
    0024060106 HH COLLAR SCREW M6X10 TX30
    HH COLLAR SCREW M6X10 TX30
  • 30
    0025060166 HH COLLAR SCREW M6X16 TX30
    HH COLLAR SCREW M6X16 TX30
  • 31
    0025060206 HH COLLAR SCREW M6X20 TX30
    HH COLLAR SCREW M6X20 TX30
  • 32
    0025060306 HH COLLAR SCREW M6X30 TX30
    HH COLLAR SCREW M6X30 TX30
  • 57
    54605057000 RUBBER SLEEVE D=21MM/23MM
    RUBBER SLEEVE D=21MM/23MM
  • 68
    54605068000 EXHAUST BRACKET RUBBER BLACK
    EXHAUST BRACKET RUBBER BLACK
  • 69
    54605069000 BUSHING 7,5X12X28X7,8
    BUSHING 7,5X12X28X7,8
