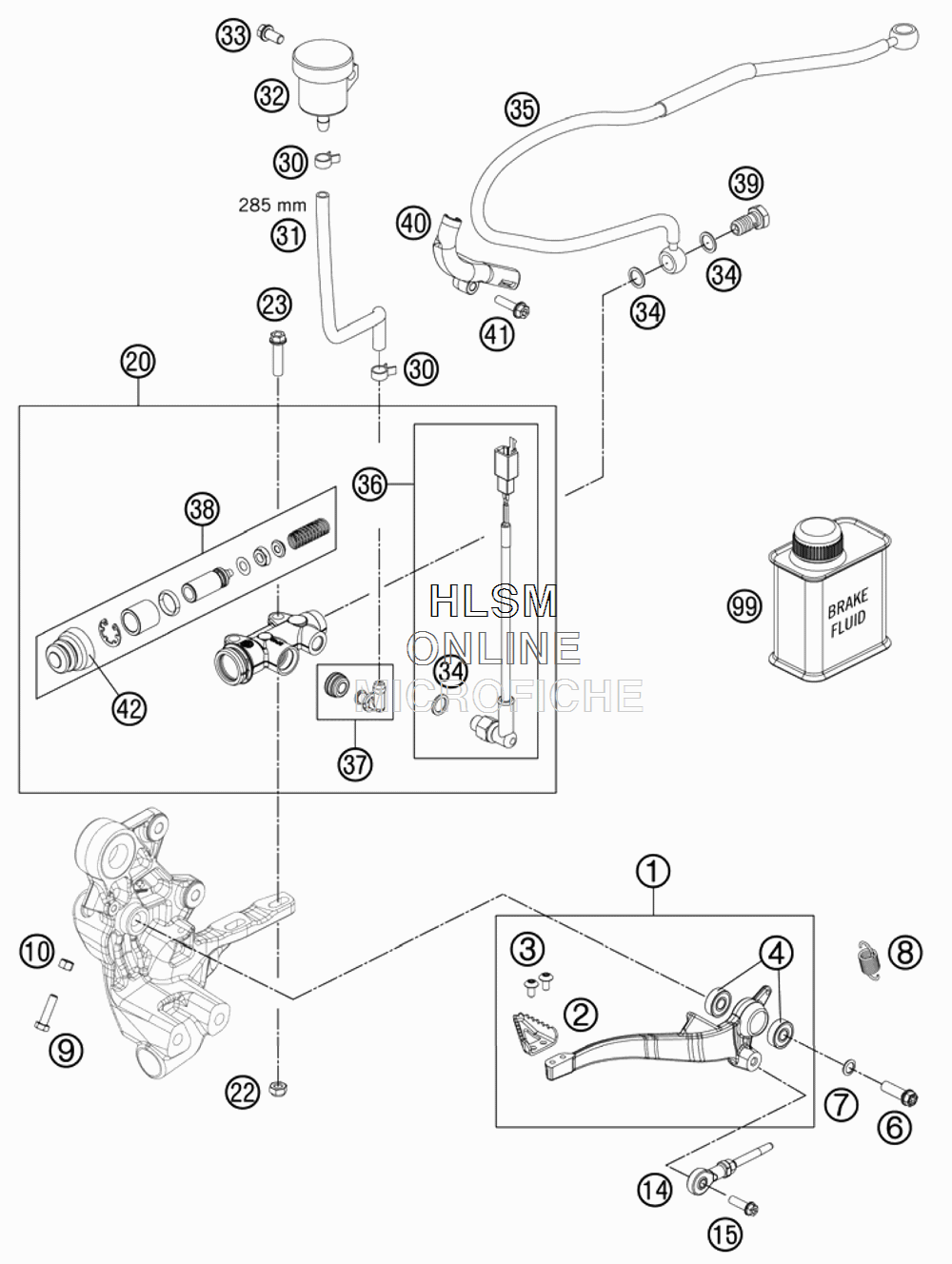

REAR BREAK CONTROL для Ktm 690 ENDURO - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    7651305024401 FOOT BRAKE LEVER CPL.
    FOOT BRAKE LEVER CPL.
  • 2
    60013051000 STEP PLATE FOOT BRAKE LEVER
    STEP PLATE FOOT BRAKE LEVER
  • 3
    58605083010 SCREW TORX M5X10
    SCREW TORX M5X10
  • 4
    0625006087 GROOVED BALL BEAR. 608 2RS C3
    GROOVED BALL BEAR. 608 2RS C3
  • 6
    0025080256S HH COLLAR SCREW M8X25 TX40
    HH COLLAR SCREW M8X25 TX40
  • 7
    36003014000 LOCK WASHER 8MM
    LOCK WASHER 8MM
  • 8
    54603062000 RETURN SPRING FOR BRAKE LEVER
    RETURN SPRING FOR BRAKE LEVER
  • 9
    0933050203 HH SCREW DIN933 M5X20
    HH SCREW DIN933 M5X20
  • 10
    0934050003 HEXAGON NUT DIN0934-M 5
    HEXAGON NUT DIN0934-M 5
  • 14
    76513056144 PUSH ROD CPL.
    PUSH ROD CPL.
  • 15
    0025060206S HH COLLAR SCREW M6X20 TX30
    HH COLLAR SCREW M6X20 TX30
  • 20
    76513060000 FOOT BRAKE CYLINDER 13MM
    FOOT BRAKE CYLINDER 13MM
  • 22
    0926060000 STOP NUT M6 DIN6926 A2-70
    STOP NUT M6 DIN6926 A2-70
  • 23
    0025060256 HH COLLAR SCREW M6X25 TX30
    HH COLLAR SCREW M6X25 TX30
  • 30
    58007017000 YDNAC CLAMP 10101 (9MM)
    YDNAC CLAMP 10101 (9MM)
  • 31
    58007016101 HOSE FOR RESERVOIR 6X1,5
    HOSE FOR RESERVOIR 6X1,5
  • 32
    54513030044 BRAKE FLUID RESERVOIR
    BRAKE FLUID RESERVOIR
  • 33
    0024060123 COLLAR SCREW M6X12 TX
    COLLAR SCREW M6X12 TX
  • 34
    0603100141 COPPER GASKET DIN7603-10X14X1
    COPPER GASKET DIN7603-10X14X1
  • 35
    76513072000 BRAKE HOSE REAR 805MM
    BRAKE HOSE REAR 805MM
  • 36
    76511051000 BRAKE LIGHT SWITCH REAR
    BRAKE LIGHT SWITCH REAR
  • 37
    54513155000 ANGLE PIECE
    ANGLE PIECE
  • 38
    76513061000 REPAIR KIT PISTON 13MM
    REPAIR KIT PISTON 13MM
  • 39
    54813020100 HOLLOW SCREW BLACK M10X1X19
    HOLLOW SCREW BLACK M10X1X19
  • 40
    76513047000 BRACKET FOR BRAKE HOSE
    BRACKET FOR BRAKE HOSE
  • 41
    0025050206 HH COLLAR SCREW M5X20 TX30
    HH COLLAR SCREW M5X20 TX30
  • 42
    54513151000 RUBBER SLEEVE
    RUBBER SLEEVE
  • 99
    00062030000 BRAKE FLUID DOT5.1 0,25L
    BRAKE FLUID DOT5.1 0,25L
