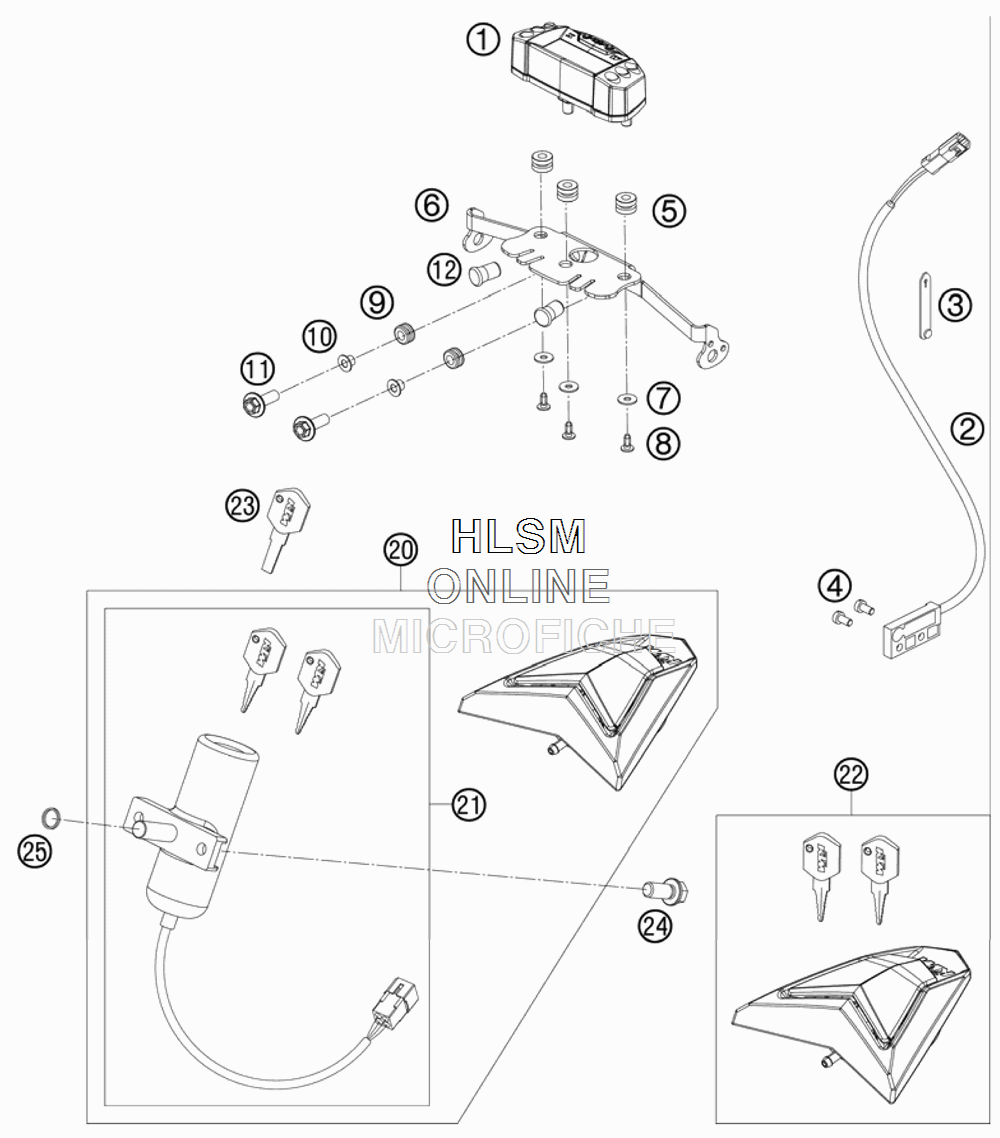

INSTRUMENTS / LOCK SYSTEM для Ktm 690 ENDURO - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    76514069000 SPEEDOMETER
    SPEEDOMETER
  • 2
    76514068100 SPEEDOMETER SENSOR
    SPEEDOMETER SENSOR
  • 3
    60011093045 RUBBER CABLE TIE 45MM
    RUBBER CABLE TIE 45MM
  • 4
    0084040083 CYL.HEAD SCREW DIN0084-M 4X8 A
    CYL.HEAD SCREW DIN0084-M 4X8 A
  • 5
    58214069051 RUBBER GROMMET 16X10,8X3
    RUBBER GROMMET 16X10,8X3
  • 6
    76514160000 SPEEDOMETER BRACKET
    SPEEDOMETER BRACKET
  • 7
    0021050003 WASHER DIN9021-A 5,3
    WASHER DIN9021-A 5,3
  • 8
    0081050121 SCREW FOR PLASTIC K50X12 T20
    SCREW FOR PLASTIC K50X12 T20
  • 9
    31008060000 RUBBER SLEEVE D=8MM OPEN
    RUBBER SLEEVE D=8MM OPEN
  • 10
    75014010050 COLLAR BUSHING 6,1X8,1X14X8
    COLLAR BUSHING 6,1X8,1X14X8
  • 11
    0024060156 HH COLLAR SCREW M6X15 TX30
    HH COLLAR SCREW M6X15 TX30
  • 12
    58608003000 PLUG CAP KV8
    PLUG CAP KV8
  • 20
    76511066144 LOCK SET
    LOCK SET
  • 21
    76511066000 IGNITION LOCK
    IGNITION LOCK
  • 22
    76507008100 TANK CAP
    TANK CAP
  • 23
    40011166100 KEY BLANK LC4/DUKE/LC8
    KEY BLANK LC4/DUKE/LC8
  • 24
    59009062013 SPECIAL SCREW M6X13 WS=8 10.9
    SPECIAL SCREW M6X13 WS=8 10.9
  • 25
    0770100020 O-RING NG 10,00X2,00 SIL CONE
    O-RING NG 10,00X2,00 SIL CONE
