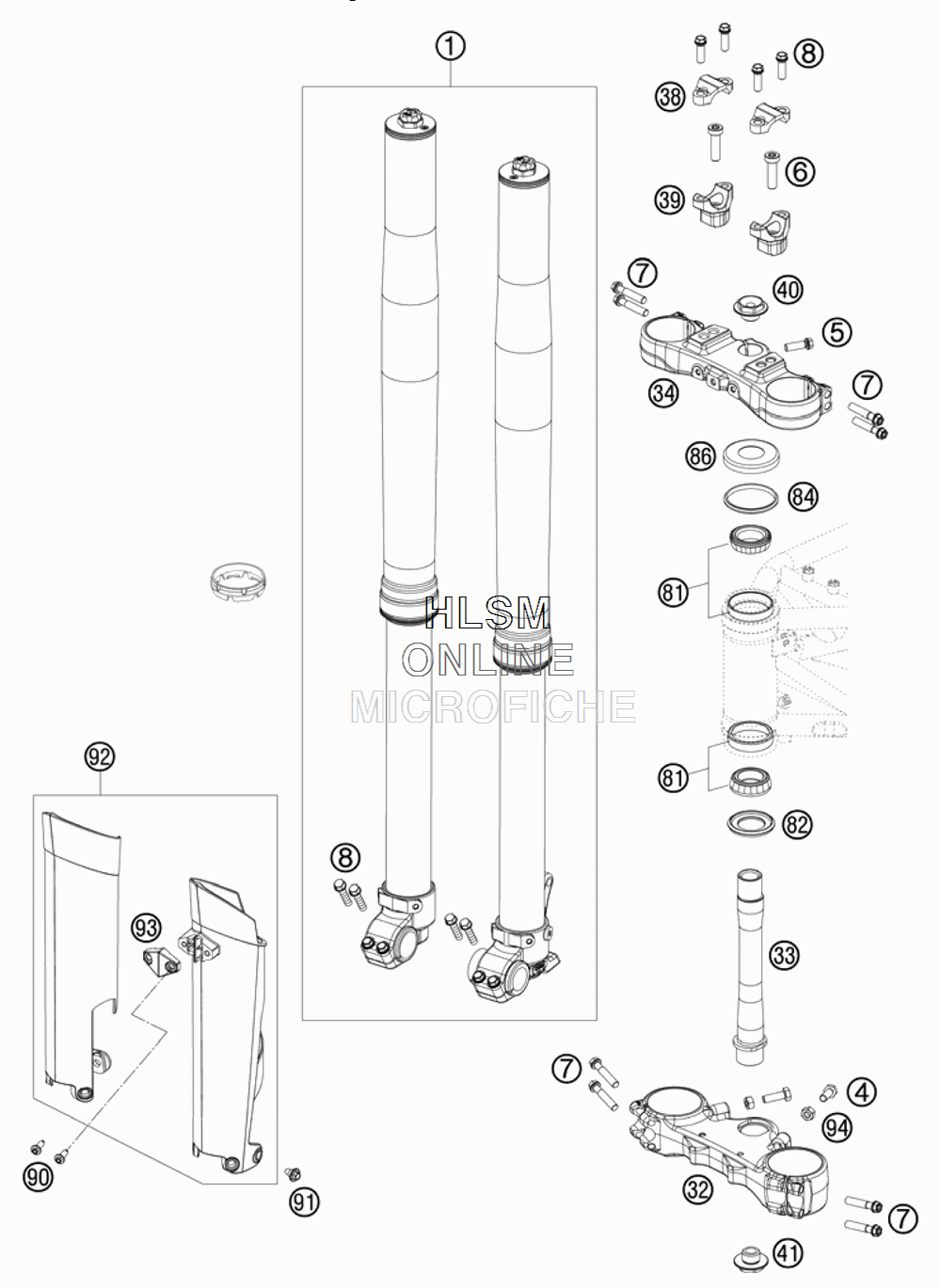

FRONT FORK TRIPLE CLAMP для Ktm 690 ENDURO - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    14187K4101 FORK
    FORK
  • 4
    0933080253 HH SCREW DIN0933-M 8X25
    HH SCREW DIN0933-M 8X25
  • 5
    0025080306 HH COLLAR SCREW M8X30 TX40
    HH COLLAR SCREW M8X30 TX40
  • 6
    0032100356S AH-COLLAR SCREW M10X35 ISA45
    AH-COLLAR SCREW M10X35 ISA45
  • 7
    0025080406 HH COLLAR SCREW M8X40 TX40
    HH COLLAR SCREW M8X40 TX40
  • 8
    0025080256 HH COLLAR SCREW M8X25 TX40
    HH COLLAR SCREW M8X25 TX40
  • 32
    7650103103101 TRIPLE CLAMP BOTTOM 60MM
    TRIPLE CLAMP BOTTOM 60MM
  • 33
    76501033000 FORK TUBE L=237MM
    FORK TUBE L=237MM
  • 34
    7650103403101 TRIPLE CLAMP TOP 54MM
    TRIPLE CLAMP TOP 54MM
  • 38
    59401038000 HANDLEBAR CLAMP 28MM
    HANDLEBAR CLAMP 28MM
  • 39
    59401039042 HANDLEB.SUPP. D=28MM H=42MM
    HANDLEB.SUPP. D=28MM H=42MM
  • 40
    54801036000 STEER.HEAD SCREW M20X1,5 WS=27
    STEER.HEAD SCREW M20X1,5 WS=27
  • 41
    54801036100 STE.HEAD SCR. M20X1,5 WS=27 SL
    STE.HEAD SCR. M20X1,5 WS=27 SL
  • 81
    54201081100 TAPERED ROLLER BEARING CPL.
    TAPERED ROLLER BEARING CPL.
  • 82
    54601084100 O-RING SUPPORT W. SEALING LIP
    O-RING SUPPORT W. SEALING LIP
  • 84
    54601184000 STEARING HEAD GASKET TOP
    STEARING HEAD GASKET TOP
  • 86
    54201086000 STEERING HEAD COVER
    STEERING HEAD COVER
  • 90
    0017060204 EJOT PT SCREW K60X20 ALU WS=6
    EJOT PT SCREW K60X20 ALU WS=6
  • 91
    59001092050 SPECIAL SCREW M6X12,5 WS=8
    SPECIAL SCREW M6X12,5 WS=8
  • 92
    7800109410028 FORK PROTECT. L/S+R/S WHITE
    FORK PROTECT. L/S+R/S WHITE
  • 93
    7800108500028 CLAMP F. SPEED. CABLE D=6MM
    CLAMP F. SPEED. CABLE D=6MM
  • 94
    0934080003 HEXAGON NUT DIN0934-M 8
    HEXAGON NUT DIN0934-M 8
