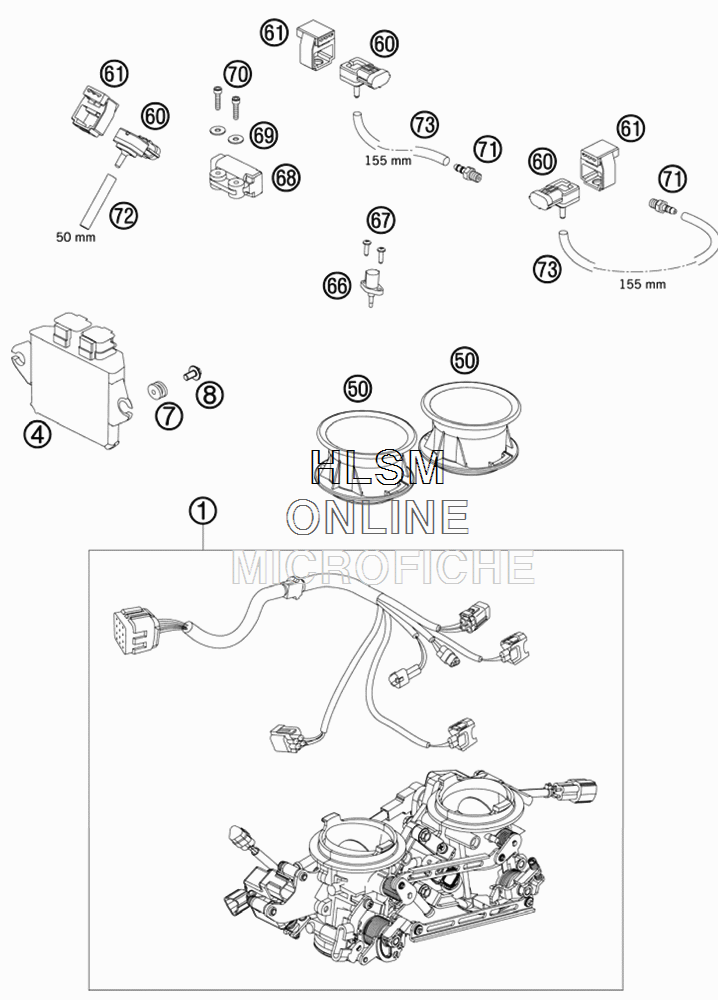

THROTTLE BODY для Ktm 990 SUPERMOTO-R - 2010 года выпуска`
-
№АртикулНазвание
-
161041001000 THROTTLE BODY CPL.THROTTLE BODY CPL.
-
461041031200 TIMING CHARGER EFITIMING CHARGER EFI
-
760039030000 VIBRATION DAMPER DIGITALBOXVIBRATION DAMPER DIGITALBOX
-
80023060123 COLLAR SCREW M6X12 TXCOLLAR SCREW M6X12 TX
-
5061041040000 INTAKE TRUMPETINTAKE TRUMPET
-
6061041085100 PRESSURE SENSORPRESSURE SENSOR
-
6161041085150 RUBBER SUPP. PRESSURE SENS.RUBBER SUPP. PRESSURE SENS.
-
6661041080000 AMBIENT-AIR TEMPERATURE SENSORAMBIENT-AIR TEMPERATURE SENSOR
-
670081500181 SCREW FOR PLASTIC D=5X18SCREW FOR PLASTIC D=5X18
-
6861041088000 ROLLOVER SENSORROLLOVER SENSOR
-
6961041088050 SHIM 4,3X15X1,25MM GALVANIZEDSHIM 4,3X15X1,25MM GALVANIZED
-
700912040203 AH SCREW DIN 912-M 4X20AH SCREW DIN 912-M 4X20
-
7161036023100 VACUUM CONECTIONVACUUM CONECTION
-
7261041095050 HOSE 3,2X8,5 L=50 MMHOSE 3,2X8,5 L=50 MM
-
7362541095155 HOSE 32X8,5 L=155MMHOSE 32X8,5 L=155MM
