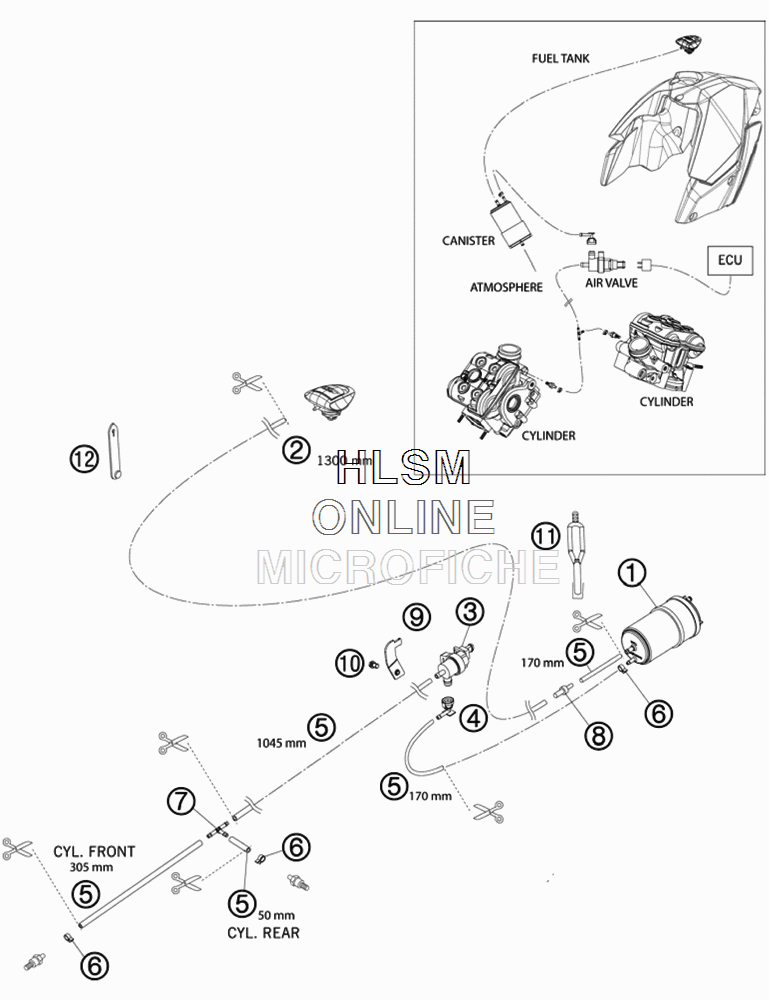

EVAPORATIVE CANISTER для Ktm 990 SUPERMOTO-R - 2010 года выпуска`
-
№АртикулНазвание
-
158715001000 EVAP.CANISTER FILTER TYPE AK47EVAP.CANISTER FILTER TYPE AK47
-
278015021000 HOSE EPA D=4/8 L=2000MMHOSE EPA D=4/8 L=2000MM
-
361115015000 VALVE FOR CARBON CANISTERVALVE FOR CARBON CANISTER
-
461115016000 FITTING PIECE NQV2 NW7 90°FITTING PIECE NQV2 NW7 90°
-
578015019000 HOSE EPA D=6/10 L=2000MMHOSE EPA D=6/10 L=2000MM
-
658007017000 YDNAC CLAMP 10101 (9MM)YDNAC CLAMP 10101 (9MM)
-
760015022000 T-CONNECTOR TS-6T-CONNECTOR TS-6
-
875015023000 REDUCTION CONNECTION GRS6-4REDUCTION CONNECTION GRS6-4
-
962615016000 SUPPORT AKFSUPPORT AKF
-
100025080126 HH COLLAR SCREW M8X12 TX40HH COLLAR SCREW M8X12 TX40
-
1150303018000 RUBBER L=145MMRUBBER L=145MM
-
1260011093060 RUBBER CABLE TIE 60MMRUBBER CABLE TIE 60MM
