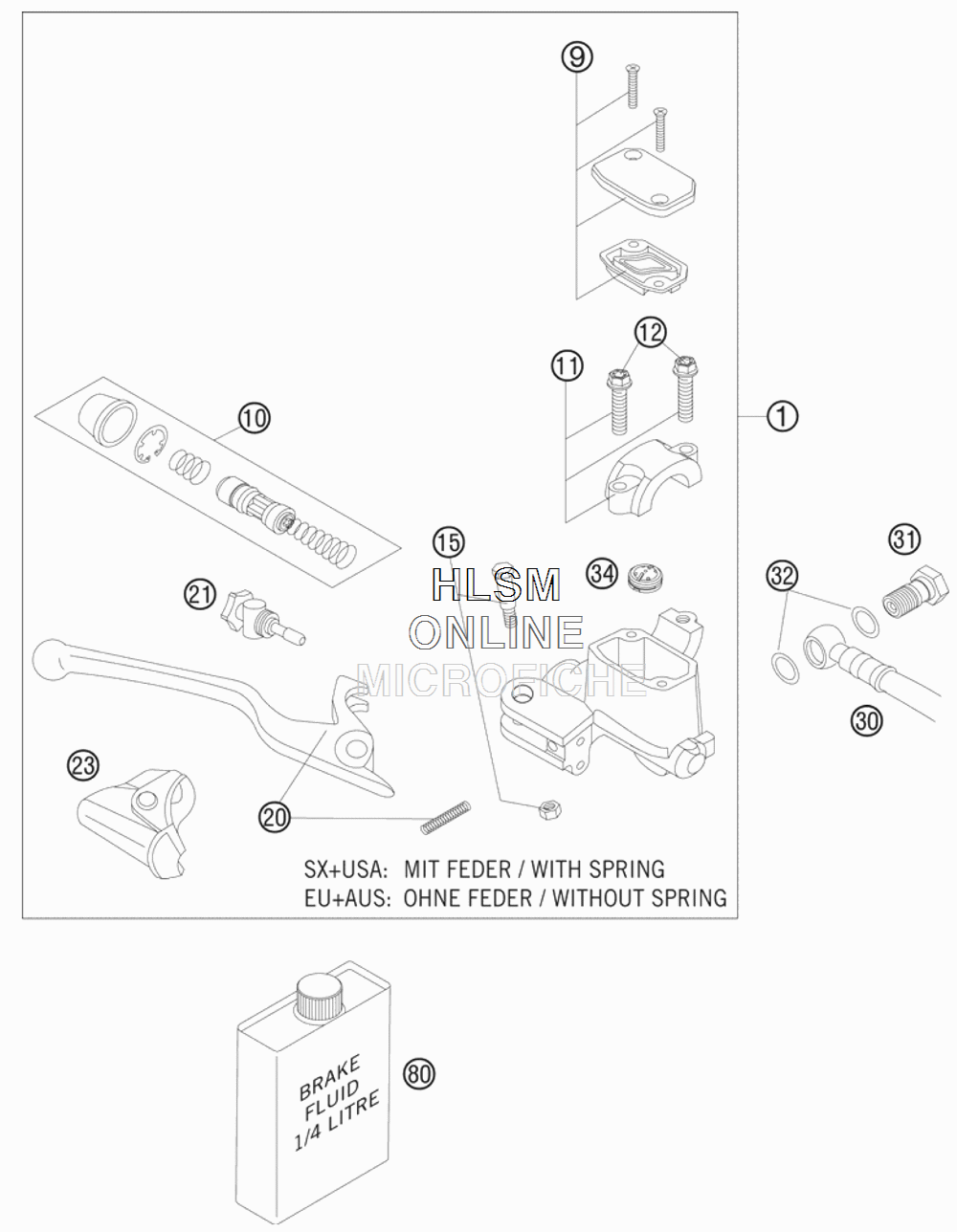

HAND BRAKE CYLINDER для Ktm 300 XC - 2010 года выпуска`
-
№АртикулНазвание
-
1*77013001044 HAND BRAKE CYLINDER CPL. SXHAND BRAKE CYLINDER CPL. SX
-
950313003000 HANDBRAKE CYL.COVER CPL.NATUREHANDBRAKE CYL.COVER CPL.NATURE
-
10*54813008300 REP.SET PISTON D=12MMREP.SET PISTON D=12MM
-
1150313005000 CLAMP CPL. NATURECLAMP CPL. NATURE
-
120025060256 HH COLLAR SCREW M6X25 TX30HH COLLAR SCREW M6X25 TX30
-
1550313006100 LEVER SCREW CPL.LEVER SCREW CPL.
-
20*54813002200 HAND BRAKE LEVER + SPRINGHAND BRAKE LEVER + SPRING
-
21*54813007300 ADJUSTING SCREW CPL. SXADJUSTING SCREW CPL. SX
-
2350313004000 PROTECTION CAP HAND BRAKE CYL.PROTECTION CAP HAND BRAKE CYL.
-
3059013011000 BRAKEHO. FRONT 1300MMBRAKEHO. FRONT 1300MM
-
31*54813020200 BANJO SCREWBANJO SCREW
-
320603100141 COPPER GASKET DIN7603-10X14X1COPPER GASKET DIN7603-10X14X1
-
34*54802051000 VALVEVALVE
-
8000062030000 BRAKE FLUID DOT5.1 0,25LBRAKE FLUID DOT5.1 0,25L
