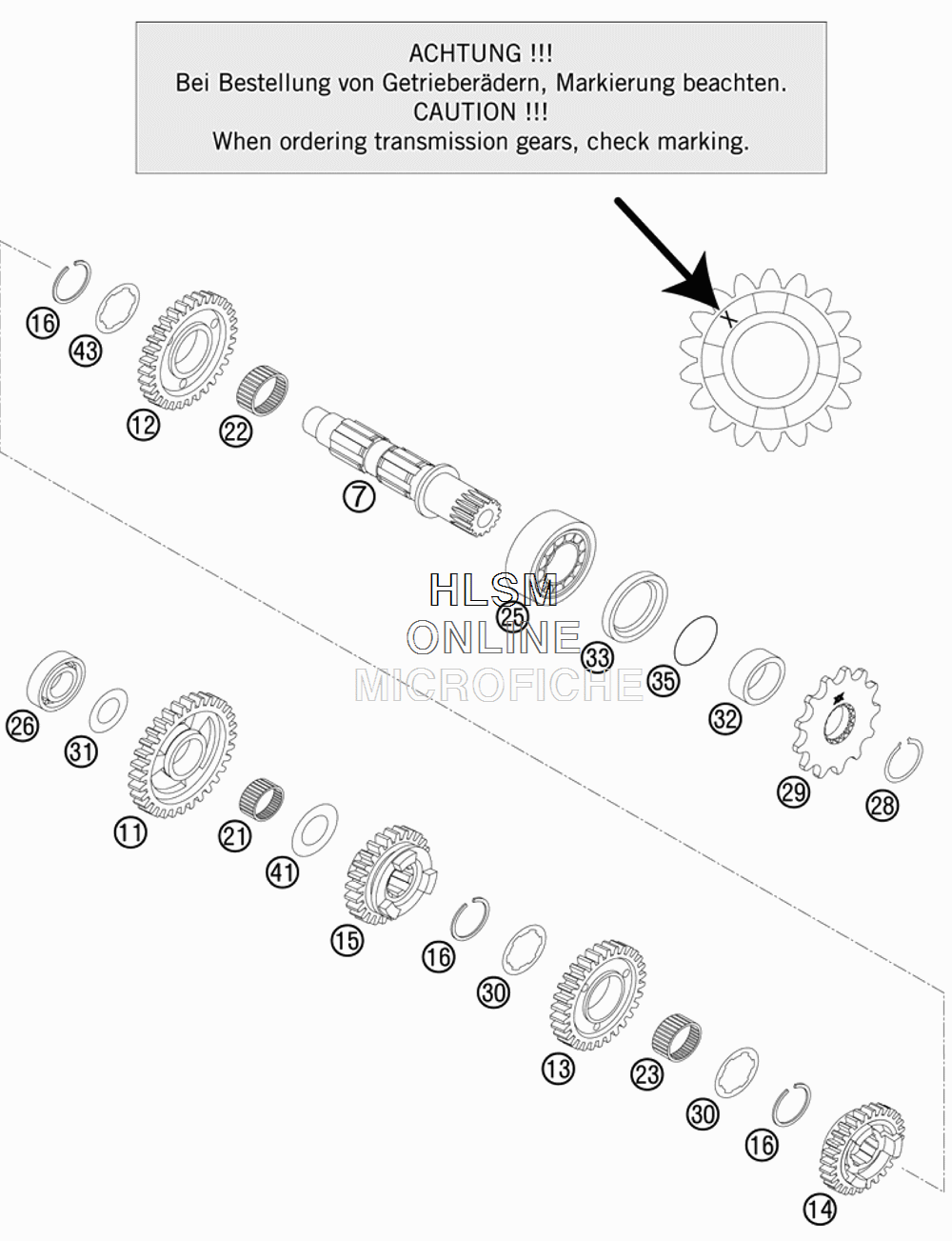

TRANSMISSION II - COUNTERSHAFT для Ktm 300 XC - 2010 года выпуска`
-
№АртикулНазвание
-
754833007000 COUNTERSHAFT 2003COUNTERSHAFT 2003
-
1154833111000 IDLER GEAR 1ST G. 30-T "1E30"IDLER GEAR 1ST G. 30-T "1E30"
-
1254833012100 IDLER GEAR 2ND G. 26-T "2S26"IDLER GEAR 2ND G. 26-T "2S26"
-
1354833013000 IDLER GEAR 3RD G. 24-T "3S24"IDLER GEAR 3RD G. 24-T "3S24"
-
1454833014000 SLIDING GEAR 4TH G.24-T "4S24"SLIDING GEAR 4TH G.24-T "4S24"
-
1554833015000 SLIDING GEAR 5TH G.21-T "5S21"SLIDING GEAR 5TH G.21-T "5S21"
-
1677033022000 AXIAL-CIRCLIP 25X1,65AXIAL-CIRCLIP 25X1,65
-
210405202413 NEEDLE BEAR. K20X24X13NEEDLE BEAR. K20X24X13
-
220405242812 NEDDLE BEAR. K24X28X11,9 DIV.NEDDLE BEAR. K24X28X11,9 DIV.
-
230405222613 NEEDLE BEAR. K 22X26X13 TNNEEDLE BEAR. K 22X26X13 TN
-
2554833025000 BALL BEARING TM-SC05C20C4 NTNBALL BEARING TM-SC05C20C4 NTN
-
260625062035 BALL BEARING 6203 JR2 C3BALL BEARING 6203 JR2 C3
-
2852033096000 LOCK RING DIN0471-25X1,64SDLOCK RING DIN0471-25X1,64SD
-
2950033029013 FRONT SPROCKET 13-TFRONT SPROCKET 13-T
-
2950033029014 FRONT SPROCKET 14-TFRONT SPROCKET 14-T
-
3059033030000 STOP DISC 25,2X32X1,5STOP DISC 25,2X32X1,5
-
3156033030000 STOP DISC 17,2X30X1STOP DISC 17,2X30X1
-
3254833032011 SPACER SLEEVE DRIVE END 2003SPACER SLEEVE DRIVE END 2003
-
330760324565 SHAFT SEAL RING 32X45X6,5 BTSLSHAFT SEAL RING 32X45X6,5 BTSL
-
350770250020 O-RING 25,00X2,00 NBR 70O-RING 25,00X2,00 NBR 70
-
4159033080000 SHIM 20X32X1SHIM 20X32X1
-
4350333043000 STOP DISC 25,2X32X1STOP DISC 25,2X32X1
