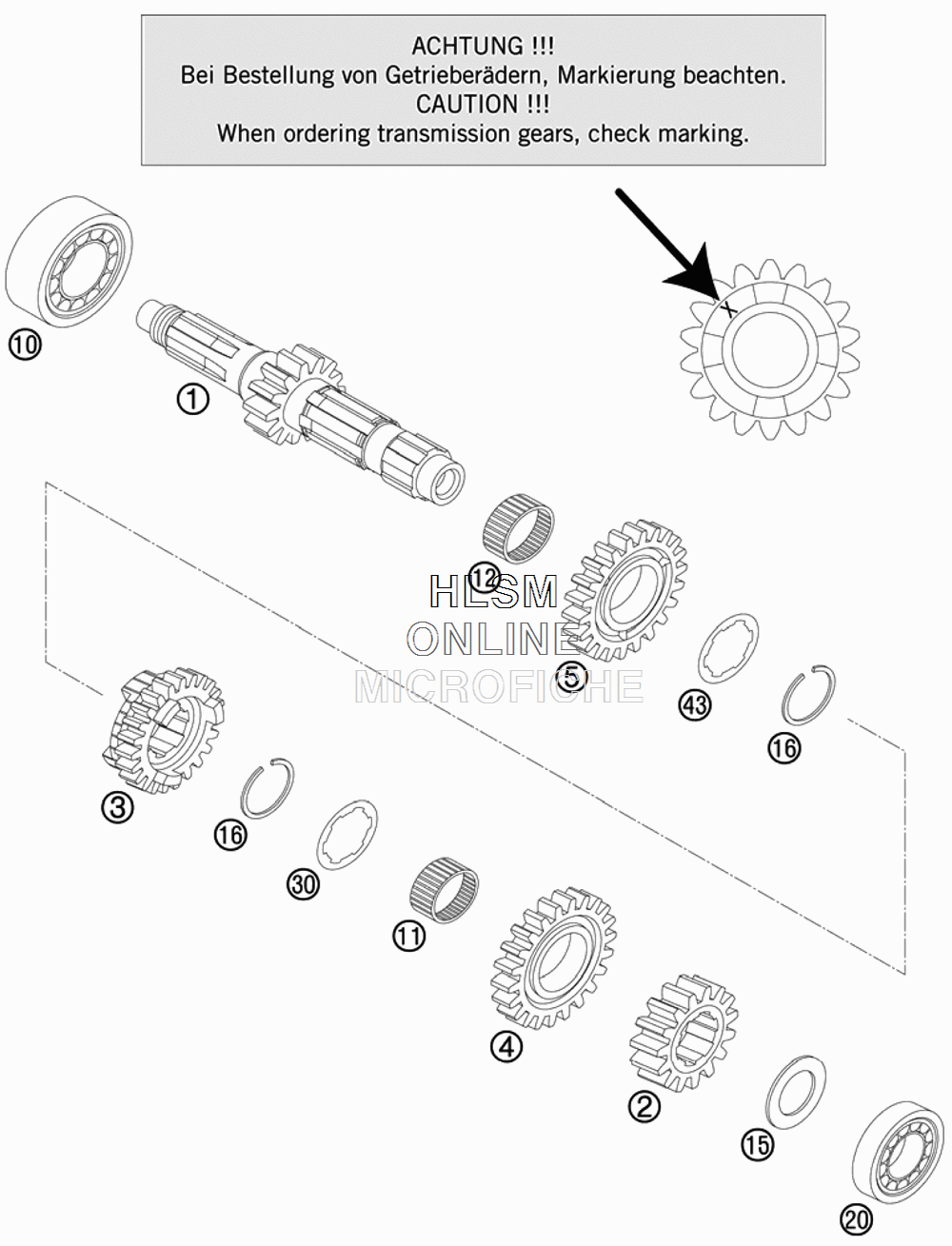

TRANSMISSION I - MAIN SHAFT для Ktm 300 XC - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    54833101000 MAIN SHAFT 14-T "1E14"
    MAIN SHAFT 14-T "1E14"
  • 2
    54833002100 SOLID GEAR 2ND G. 16-T "2S16"
    SOLID GEAR 2ND G. 16-T "2S16"
  • 3
    54833003000 SLIDING GEAR 3RD G.18-T "3S18"
    SLIDING GEAR 3RD G.18-T "3S18"
  • 4
    54833004000 IDLER GEAR 4TH G. 21-T "4S21"
    IDLER GEAR 4TH G. 21-T "4S21"
  • 5
    54833005000 IDLER GEAR 5TH G. 22-T "5S22"
    IDLER GEAR 5TH G. 22-T "5S22"
  • 10
    0625062054 BALL BEARING 6205 C3 NTN
    BALL BEARING 6205 C3 NTN
  • 11
    0405222613 NEEDLE BEAR. K 22X26X13 TN
    NEEDLE BEAR. K 22X26X13 TN
  • 12
    0405242812 NEDDLE BEAR. K24X28X11,9 DIV.
    NEDDLE BEAR. K24X28X11,9 DIV.
  • 15
    54633015000 STOP DISK 20,2X33X1,5
    STOP DISK 20,2X33X1,5
  • 16
    77033022000 AXIAL-CIRCLIP 25X1,65
    AXIAL-CIRCLIP 25X1,65
  • 20
    0625160040 GROOVED BALL BEAR. TM 16004 C3
    GROOVED BALL BEAR. TM 16004 C3
  • 30
    59033030000 STOP DISC 25,2X32X1,5
    STOP DISC 25,2X32X1,5
  • 43
    50333043000 STOP DISC 25,2X32X1
    STOP DISC 25,2X32X1
